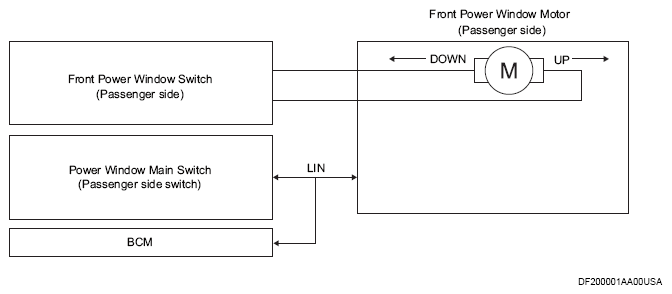

Component Operation <Auto - Operation (All Windows)>
- Front power window motor (passenger side) receives signal from power window main switch and BCM via LIN communication, then opens/closes door glass.
- The front power window motor (passenger side) opens/closes door glass when receiving the UP/DOWN signal from the front power window switch (passenger side).
