Removal And Installation: Notes

Pre-removal and Post-installation Operation

Door Opening Inner Weatherstrip (Front, Rear) Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
Center Pillar Upper Garnish and Front Pillar Garnish Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
Luggage side upper finisher Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

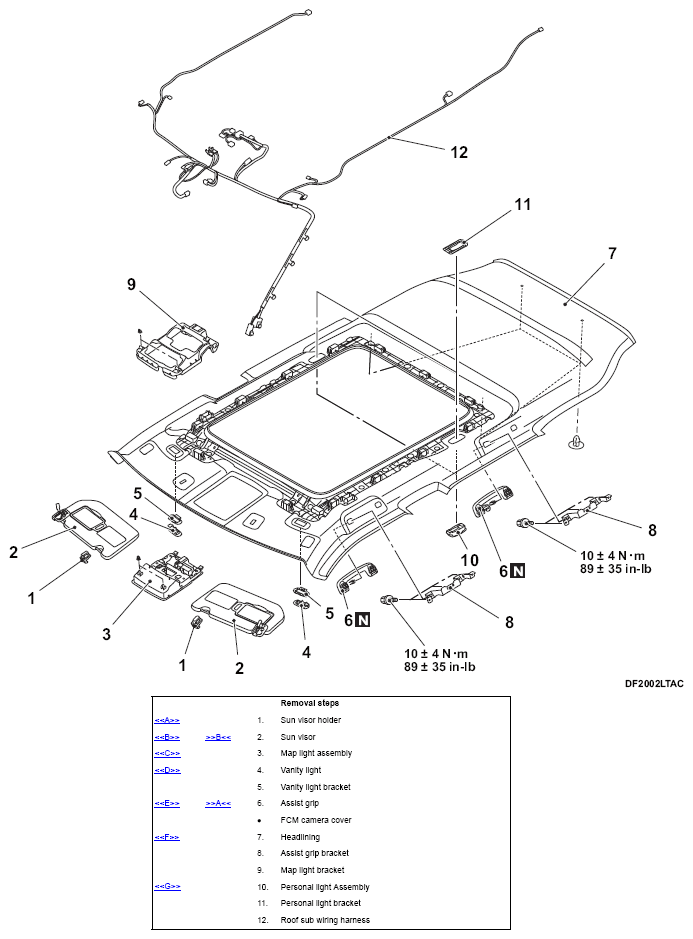

Fig 1: Removing/Installing Headlining Components Location With Torque Specification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

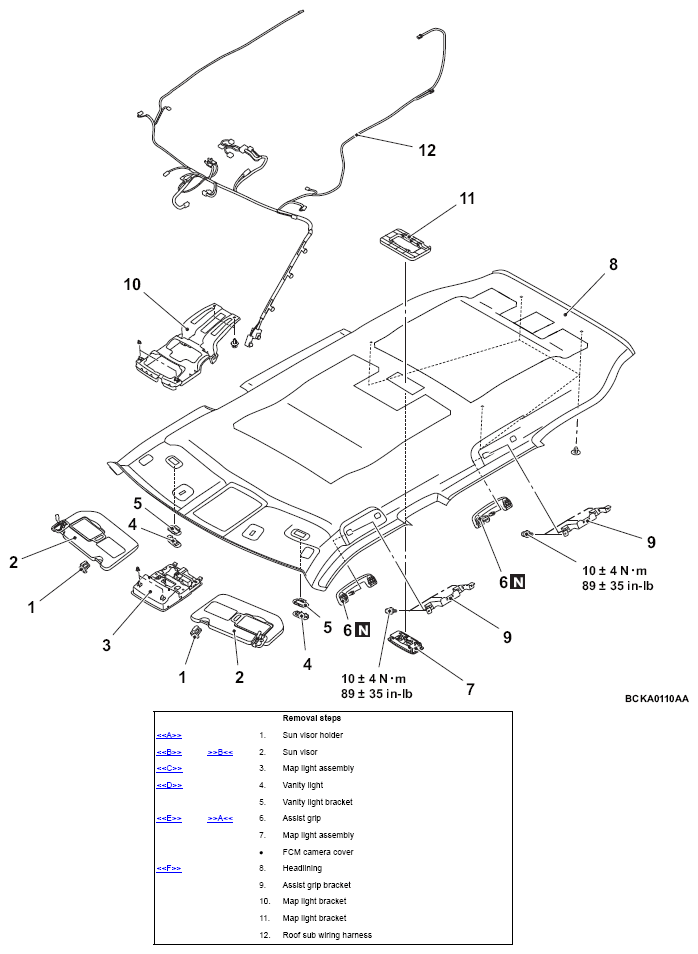

Fig 2: Removing/Installing Headlining Components Location With Torque Specification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
