Removal and Installation
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When the Distance Sensor is replaced, after turning the ignition switch ON or OFF, always carry out the calibration of radar at one time.
- If Distance Sensor is being replaced or has been disconnected, perform "ADDITIONAL SERVICE WHEN REPLACING Distance Sensor". Refer to WORK PROCEDURE .
- Do not touch Distance Sensor face.
- Do not drop or shock Distance Sensor.
- Make sure Distance Sensor harness is installed without any twists.
Pre-removal and Post-installation Operation
- Front Bumper Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

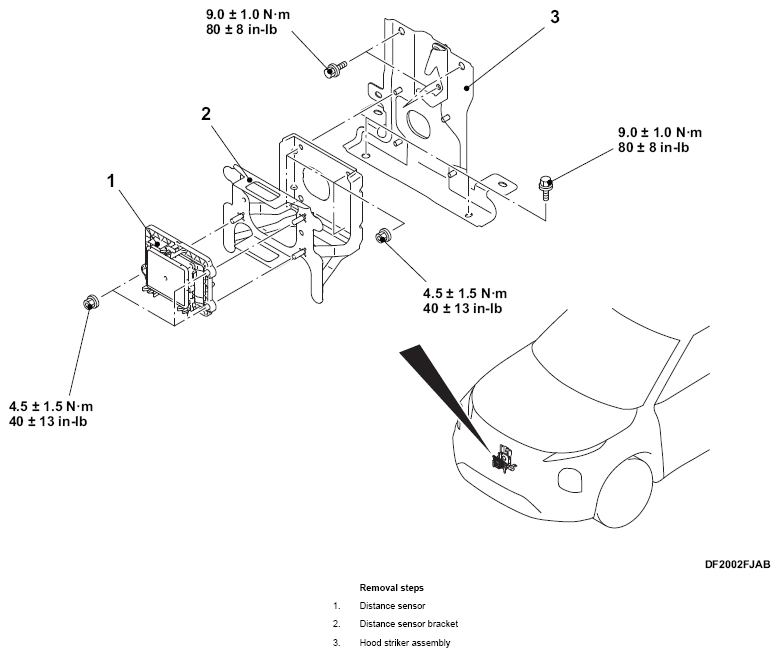

| Removal steps | |
| 1 | Distance Sensor |
| 2 | Distance Sensor bracket |
| 3 | Hood striker assembly |
