Engine Control Harness

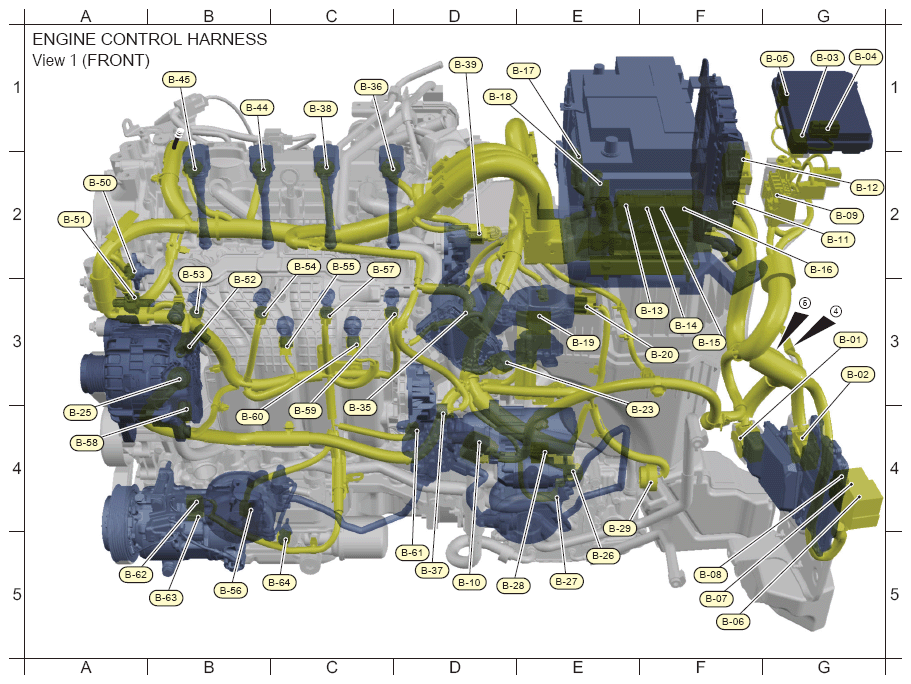

G16070588Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

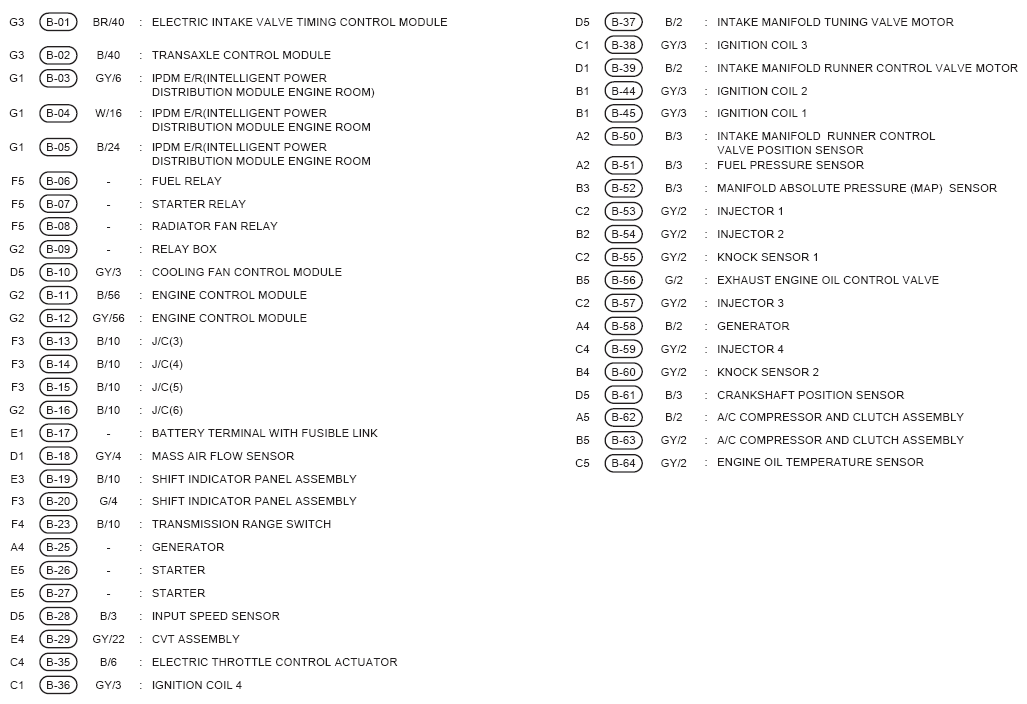

G15609136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing.
(Refer to CONNECTOR NUMBER SUBSTITUTION LIST )
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing.
(Refer to CONNECTOR NUMBER SUBSTITUTION LIST )

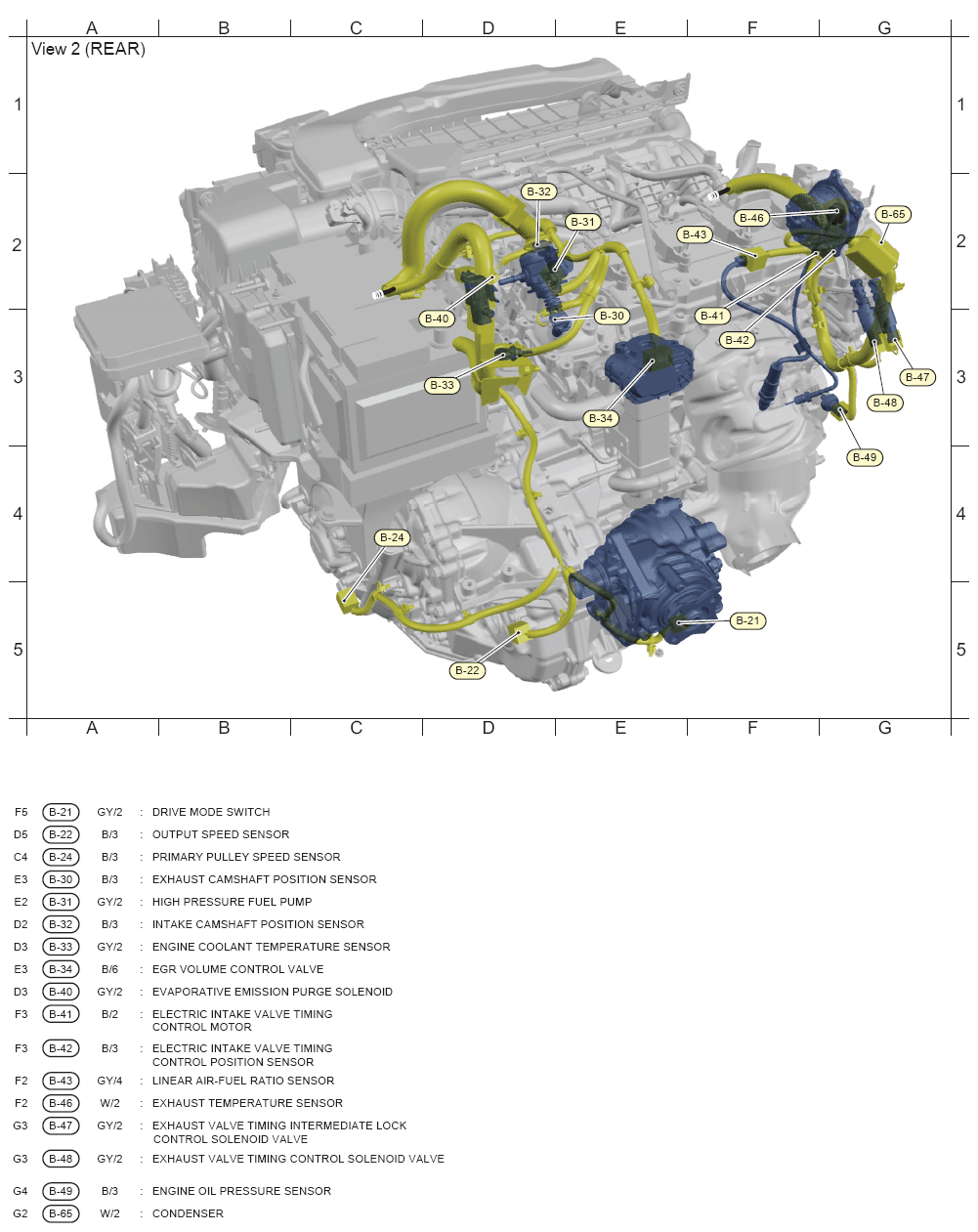

G16070589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing.
(Refer to CONNECTOR NUMBER SUBSTITUTION LIST )
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing.
(Refer to CONNECTOR NUMBER SUBSTITUTION LIST )

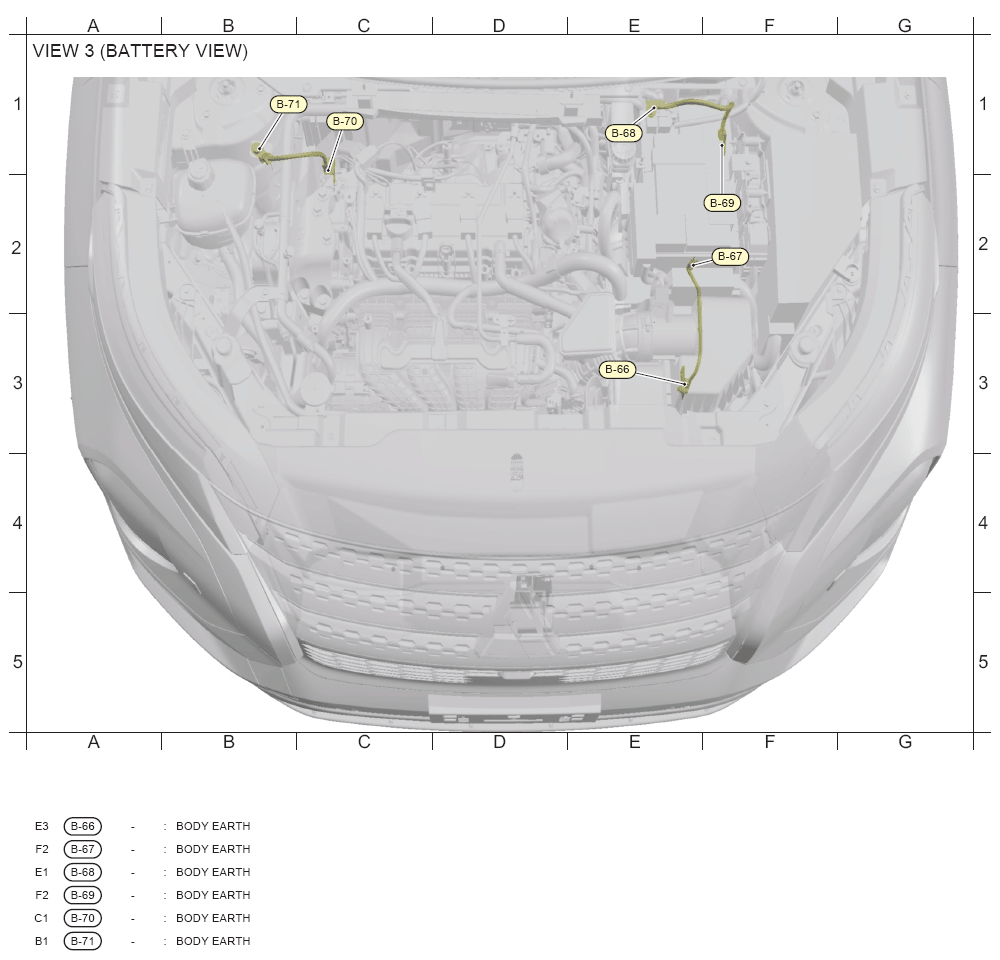

G16070590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing.
(Refer to CONNECTOR NUMBER SUBSTITUTION LIST )
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing.
(Refer to CONNECTOR NUMBER SUBSTITUTION LIST )
