Removal And Installation

Pre-removal Operation

• Raise the engine and transaxle assembly until its weight is not applied to the engine mounting insulator, and support it securely.

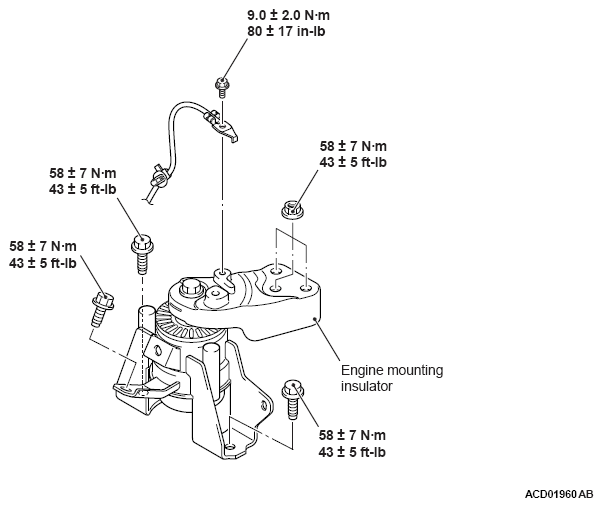

Fig 1: Removing/Installing Engine Mounting Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
