»A« Brake Tube Connection

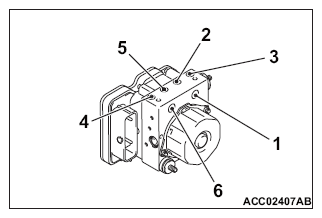

Install the brake pipe to the hydraulic unit as shown in the figure.

  1. From master cylinder (primary)
  2. To front brake (RH)
  3. To rear brake (LH)
  4. To rear brake (RH)
  5. To front brake (LH)
  6. From master cylinder (secondary)
    G15751945Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
