Continuity Check At Wiring Harness-Side Connector: Notes
- Turn the ignition switch to the LOCK (OFF) position.
- Disconnect the ASC-ECU connector.
- Check the resistance and continuity between the terminals indicated in the table below.

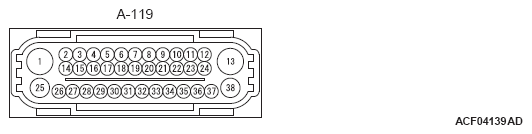

- The terminal layout is shown in the illustration.
Terminal No. Signal Normal condition 13 - body ground Ground Should be less than 2 Ω 38 - body ground Ground Should be less than 2 Ω
