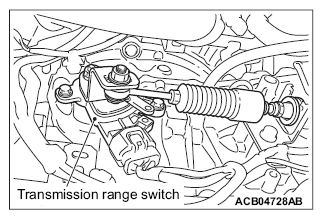

Transmission Range Switch Continuity Check

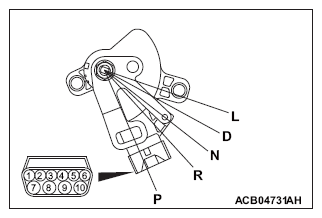

ITEM	TERMINAL NUMBER	RESISTANCE VALUE
P	3 - 2, 7 - 10	Should be less than 2 ohms
	Other than above	Open loop
R	3 - 9	Should be less than 2 ohms
	Other than above	Open loop
N	3 - 8, 7 - 10	Should be less than 2 ohms
	Other than above	Open loop
D	3 - 5	Should be less than 2 ohms
	Other than above	Open loop
L	3 - 1	Should be less than 2 ohms
	Other than above	Open loop
