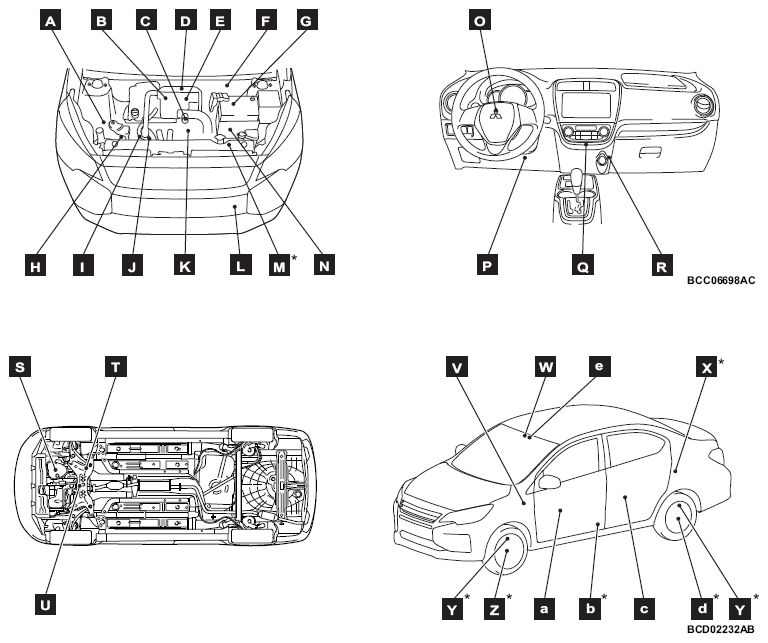

Electrical Component Locations: Sensor
| Name | Symbol |
|---|---|
| A/C pressure sensor | H |
| Accelerator pedal position sensor | P |
| Ambient temperature sensor | L |
| Brake vacuum sensor | F |
| Camshaft position sensor | B |
| Crankshaft position sensor | I |
| CVT assembly (incorporating CVT fluid temperature sensor and secondary pressure sensor) | S |

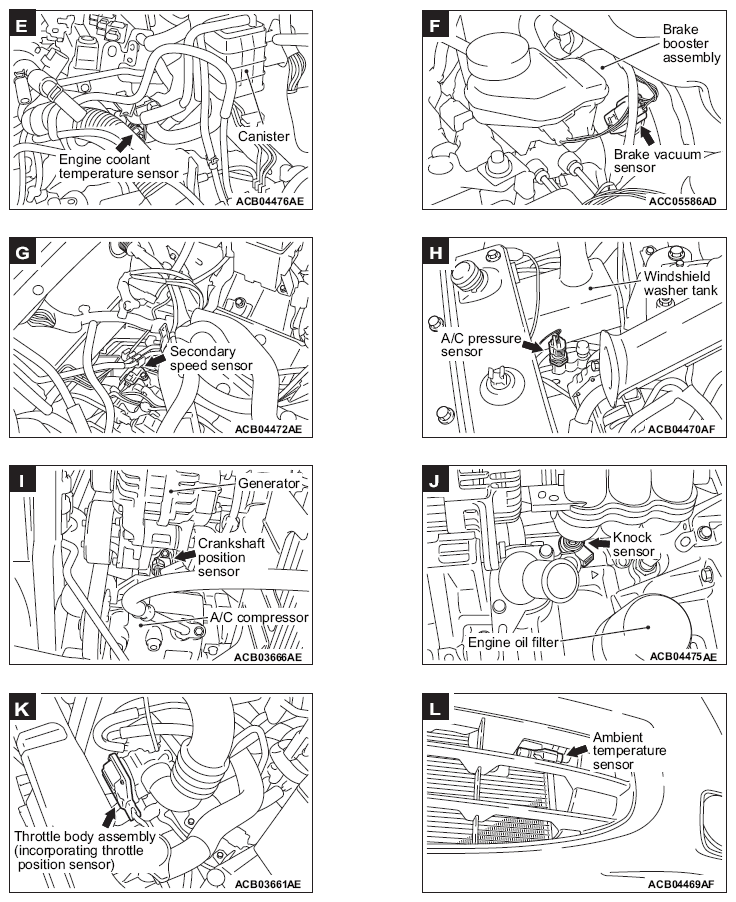

| Engine coolant temperature sensor | E |
| Fin thermo sensor | R |

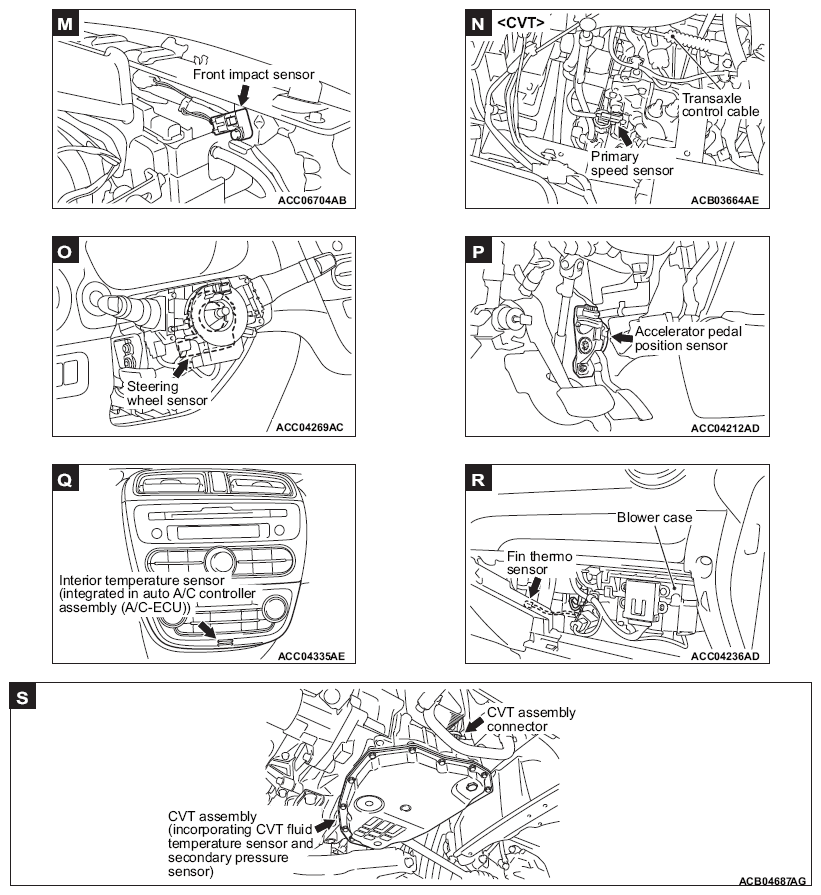

| Front impact sensor | M |
| Front light sensor <Vehicles with automatic anti-dazzling mirror> | W |
| Front wheel speed sensor | Z |
| Fuel pump module (incorporating fuel level sensor and fuel tank temperature sensor) | c |
| Fuel tank differential pressure sensor | c |

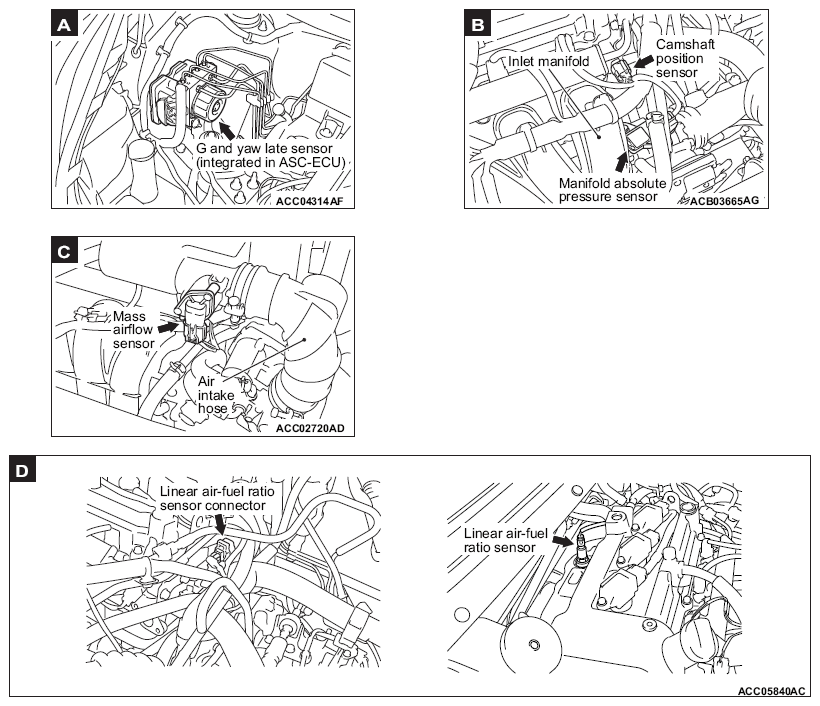

| G and yaw late sensor (integrated in ASC-ECU) | A |
| Heated oxygen sensor (rear) | U |
| Interior temperature sensor (integrated in auto A/C controller assembly (A/C-ECU)) | Q |
| Knock sensor | J |
| Lighting control sensor <Vehicles with automatic light and rain sensitive AUTO wiper> | e |
| Linear air-fuel ratio sensor | D |
| Manifold absolute pressure sensor | B |
| Mass airflow sensor | C |
| Occupant classification sensor | V |

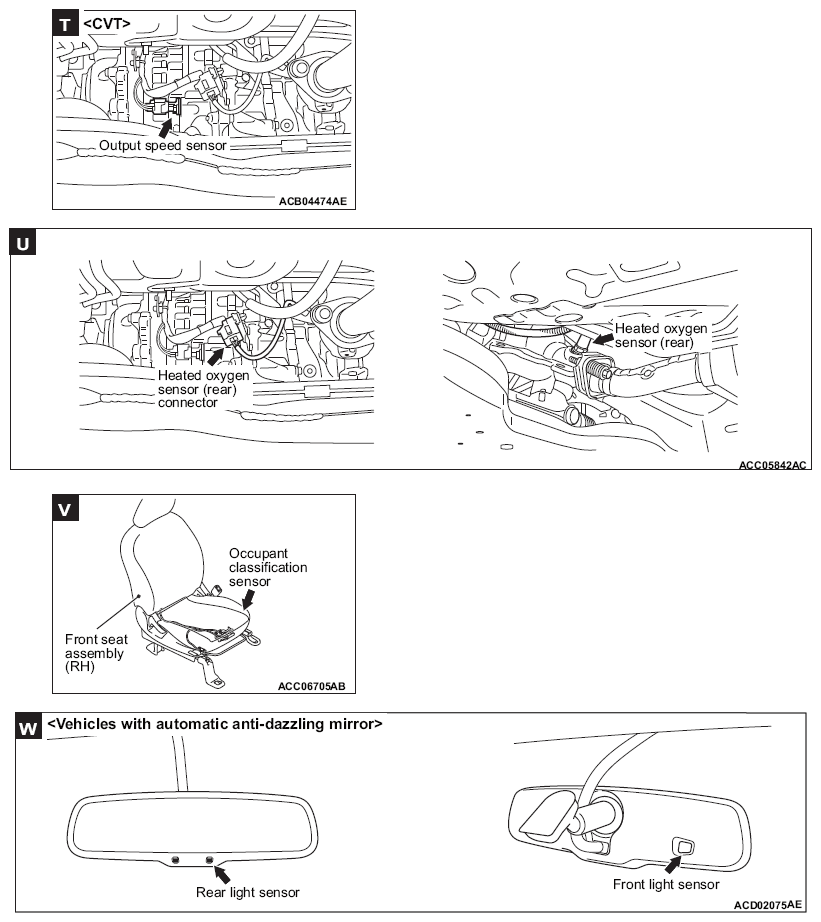

| Output speed sensor <CVT> | T |
| Primary speed sensor <CVT> | N |
| Rear light sensor <Vehicles with automatic anti-dazzling mirror> | W |
| Rear wheel speed sensor | d |
| Seat slide sensor | a |
| Secondary speed sensor <CVT> | G |
| Side impact sensor (front) | b |

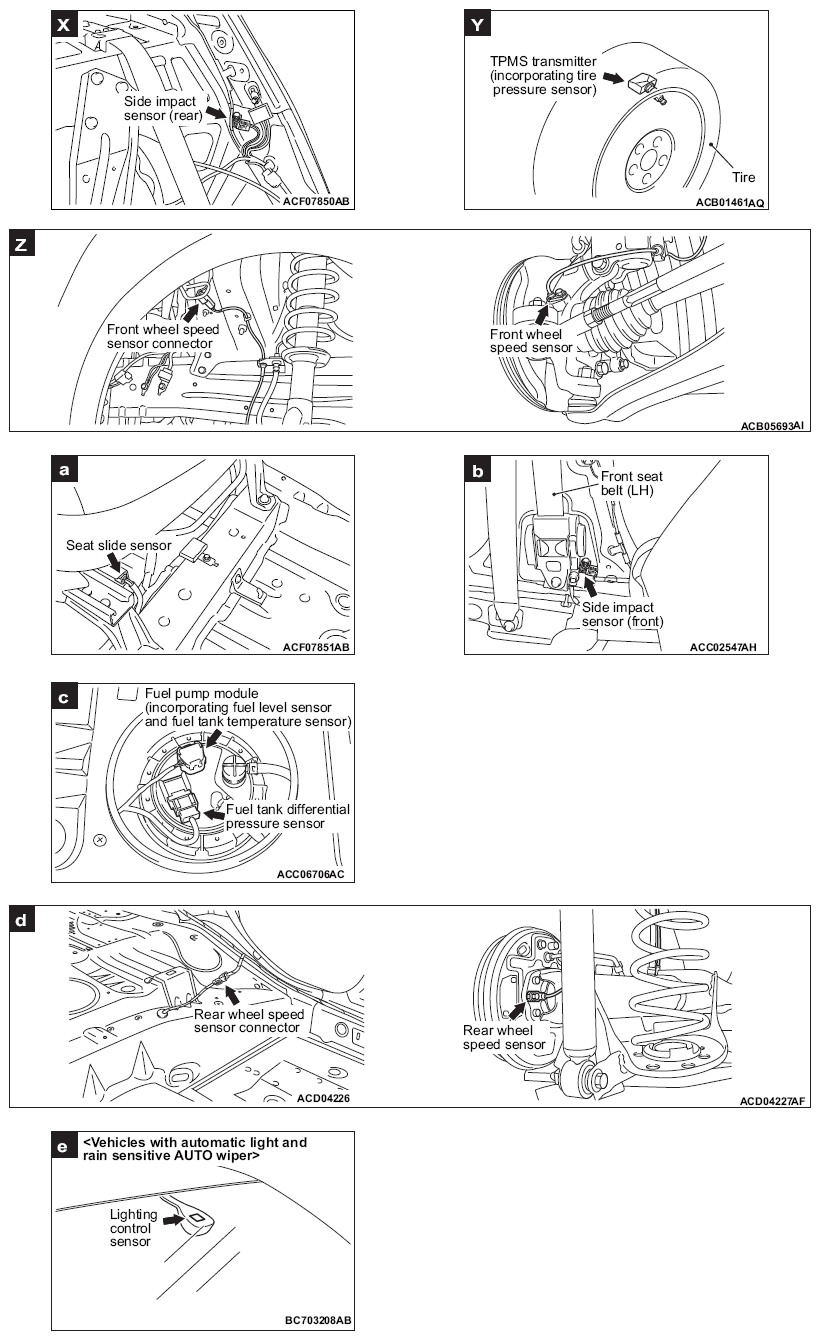

| Side impact sensor (rear) | X |
| Steering wheel sensor | O |
| Throttle body assembly (incorporating throttle position sensor) | K |
| TPMS transmitter (incorporating tire pressure sensor) | Y |
NOTE:
*: also equipped at the right side.
