Inspection Terminal

Name Symbol
Data link connector E
Spare connector B
Spare connector C
Spare connector (for navigation system) D
Spare connector <CVT> A

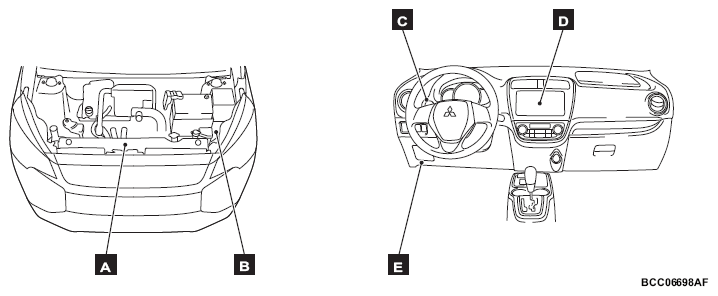

G15756768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

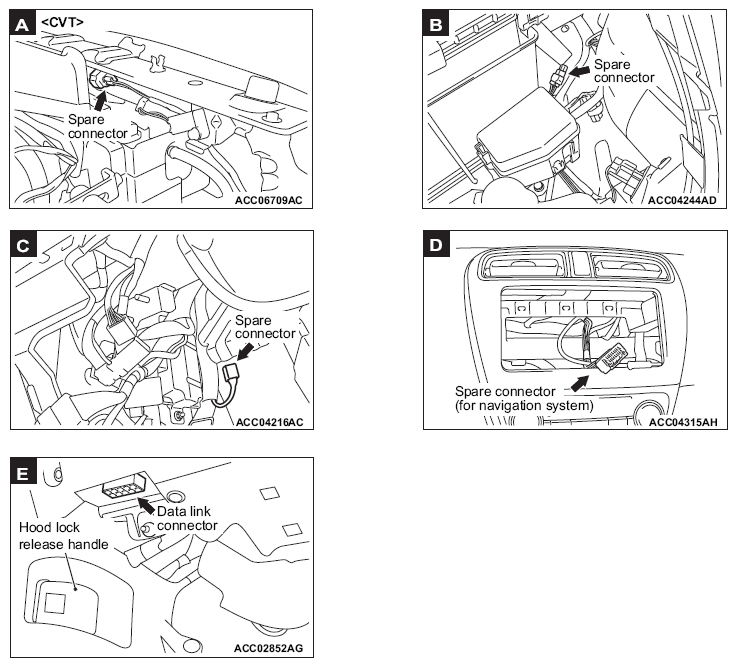

G15756769Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
