Component Locations: Grounding

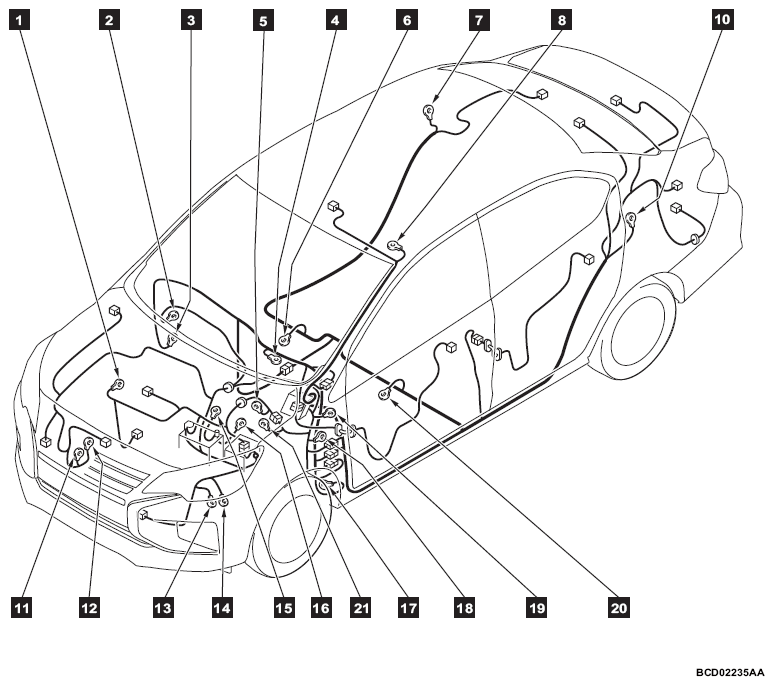

G14354160Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

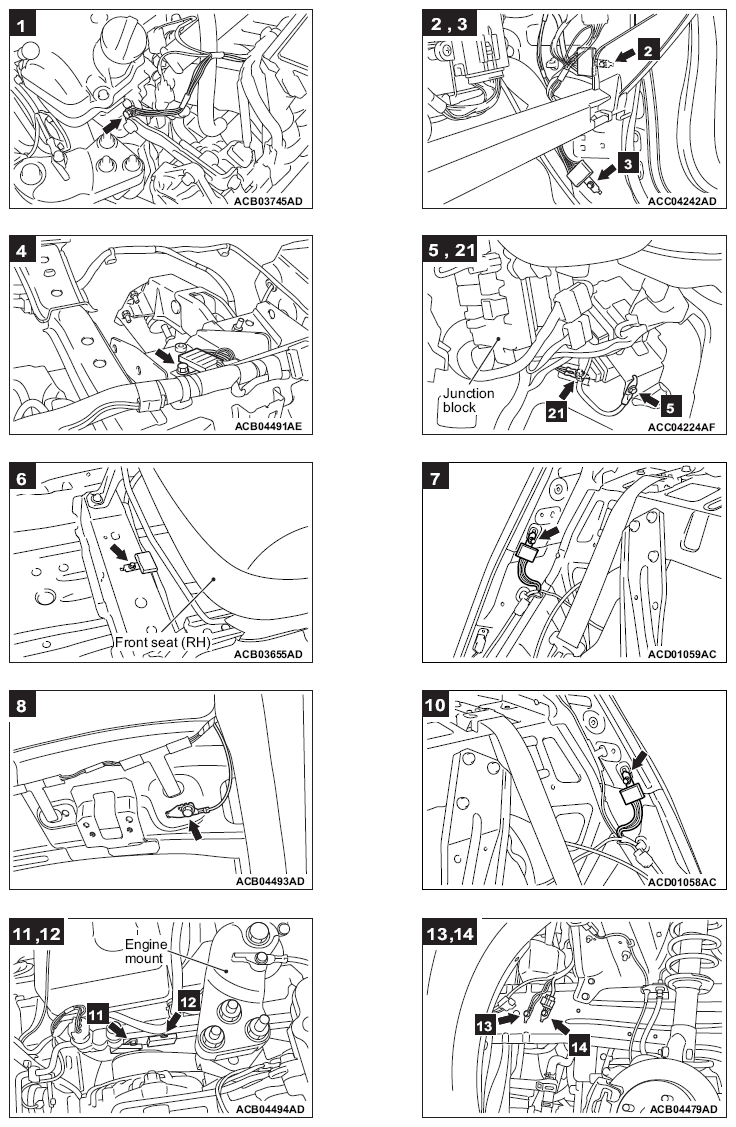

G15756772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

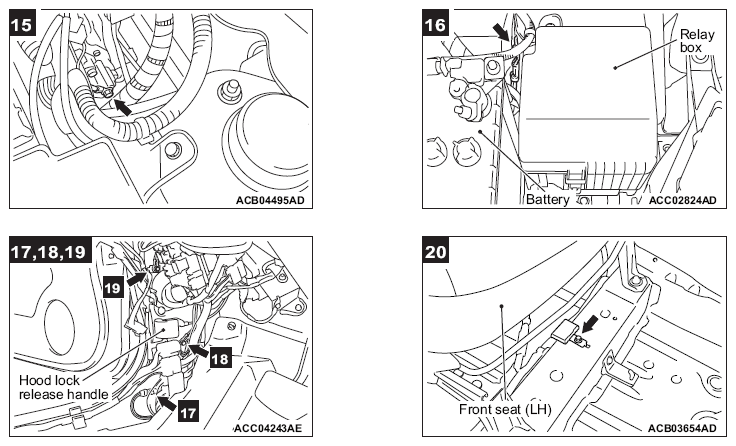

G15756773Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
