Removal And Installation

CAUTION:
  • When removing or installing the camshaft position sensor, be careful not to apply impact to the sensor.
  • Do not reuse the camshaft position sensor that has been dropped.

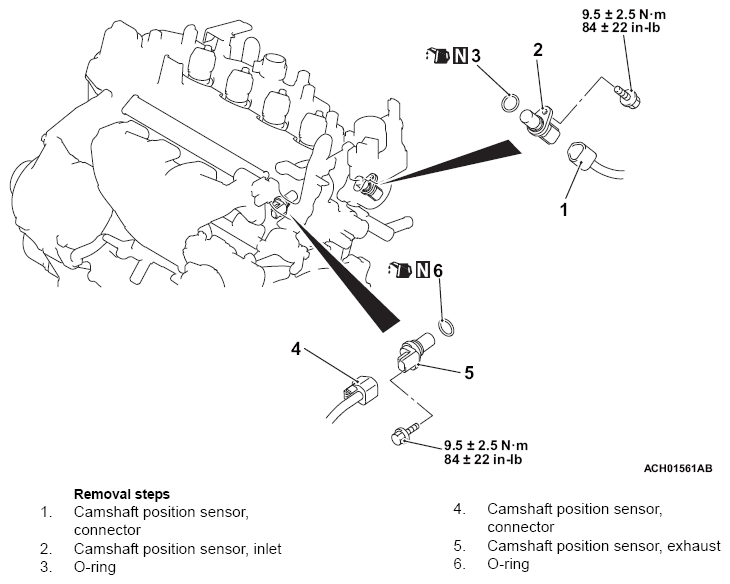

Fig 1: Removing/Installing Camshaft Position Sensor Components Location With Torque Specification
G16249551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
