Removal And Installation

Pre-removal and Post-installation Operation

• Engine Room Under Cover Removal and Installation (Refer to UNDER COVER ).

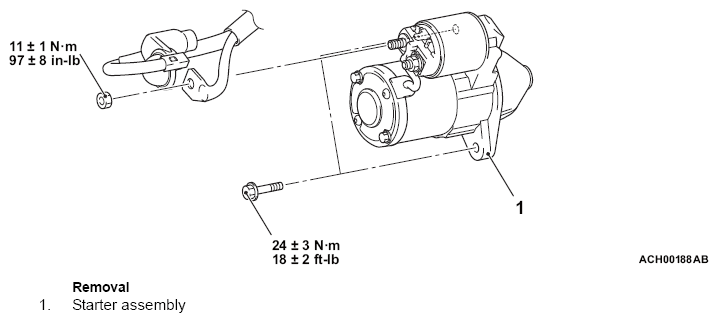

Fig 1: Removing/Installing Starter Motor Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
