Overrunning Clutch

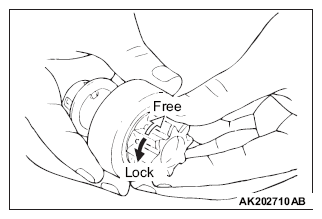

  1. Make sure that the pinion cannot be turned counterclockwise and can be turned clockwise freely.
  2. Check the pinion for abnormal ware and damage.
G14344551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
