Steering Angle Check
CAUTION:
After adjusting the steering angle, always perform calibration to make ASC-ECU learn the neutral position of the steering wheel sensor (Refer to
- On-vehicle Service, Steering Wheel Sensor Calibration G AND YAW RATE SENSOR CALIBRATION
).
- Check that the wheel alignment is normal. (Refer to - On-vehicle Service, Front Wheel Alignment Check and Adjustment (Refer to ON-VEHICLE SERVICE ).

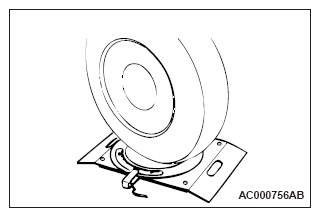

- Place the front wheel onto the turning radius gauge, and measure the steering angle.
Standard value:
Inner wheel: 38° 50' ± 1° 30' (Difference between right and left wheels must be 2°00' or less)
Outer wheel (reference): 32° 20'

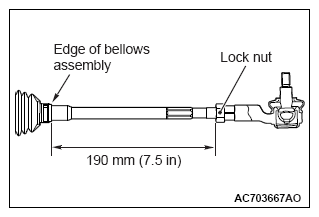

- If the measured value is not within the standard value, adjust the tie-rod ends (right and left), and repeat Steps 1 and 2.
- If the measured value is not within the standard value after performing Step 3, replace the steering gear and linkage assembly (Refer to POWER STEERING GEAR BOX AND LINKAGE ).
