Home >> Mitsubishi >> 2022 >> RVR LE >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Rear Seat Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

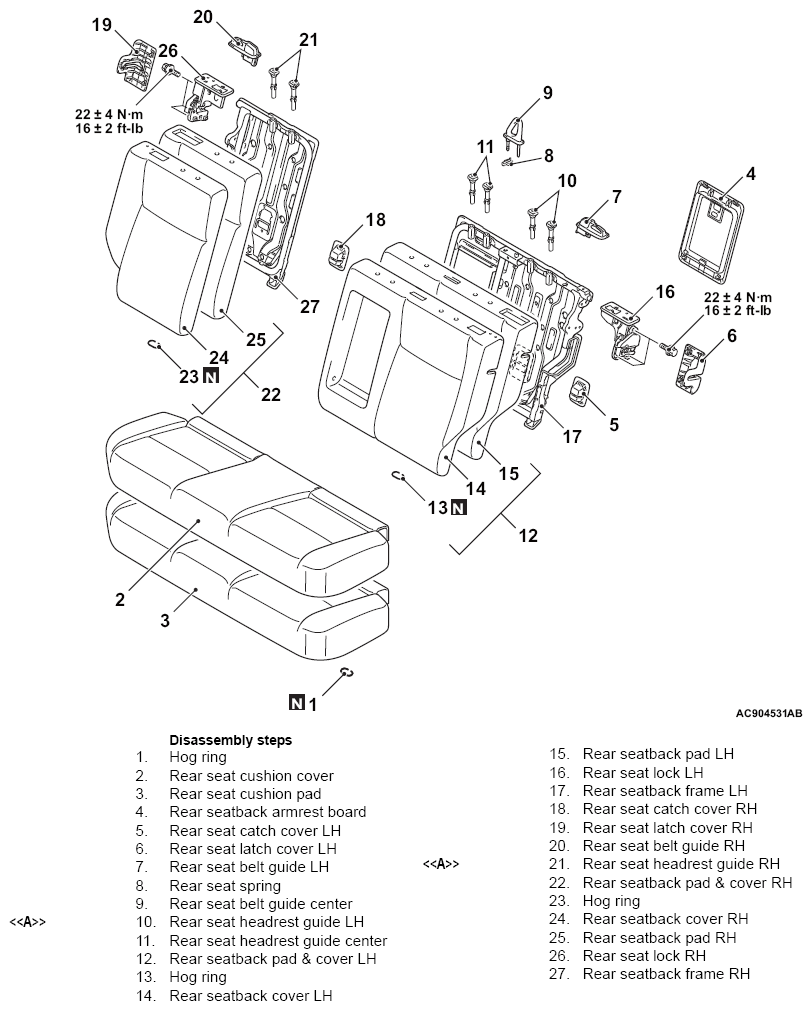

Fig 1: Disassembling/Assembling Rear Seat Assembly Components Location With Torque Specification

G14622670

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
