Instrument Center Panel
>>
Removal And Installation
Removal And Installation

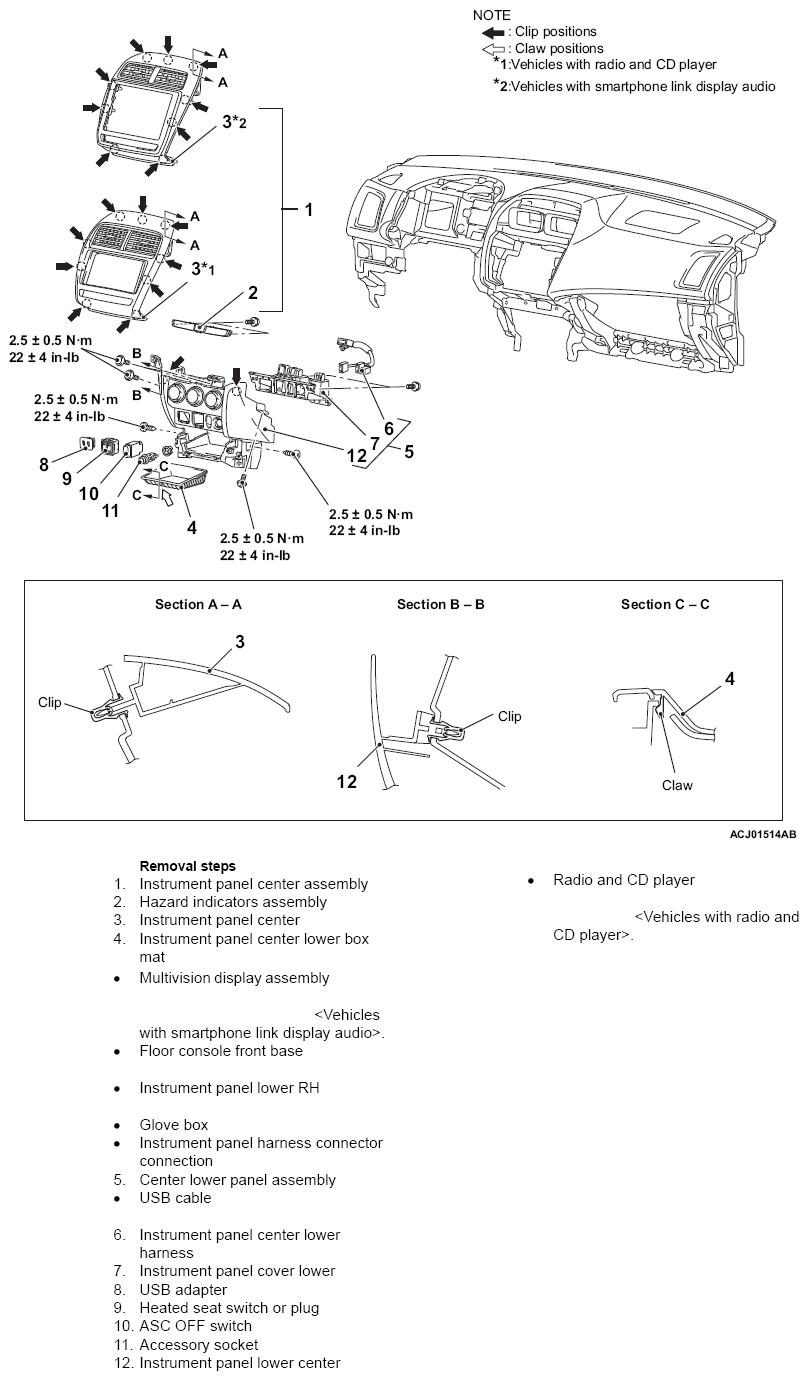

Fig 1: Removing/Installing Instrument Center Panel Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
