Removal And Installation: Notes

Pre-removal and Post-installation operation

• Engine coolant Draining, Refilling and Check (Refer to ENGINE COOLANT REPLACEMENT  ).
• Air Cleaner Assembly Removal and Installation (Refer to , AIR CLEANER ).

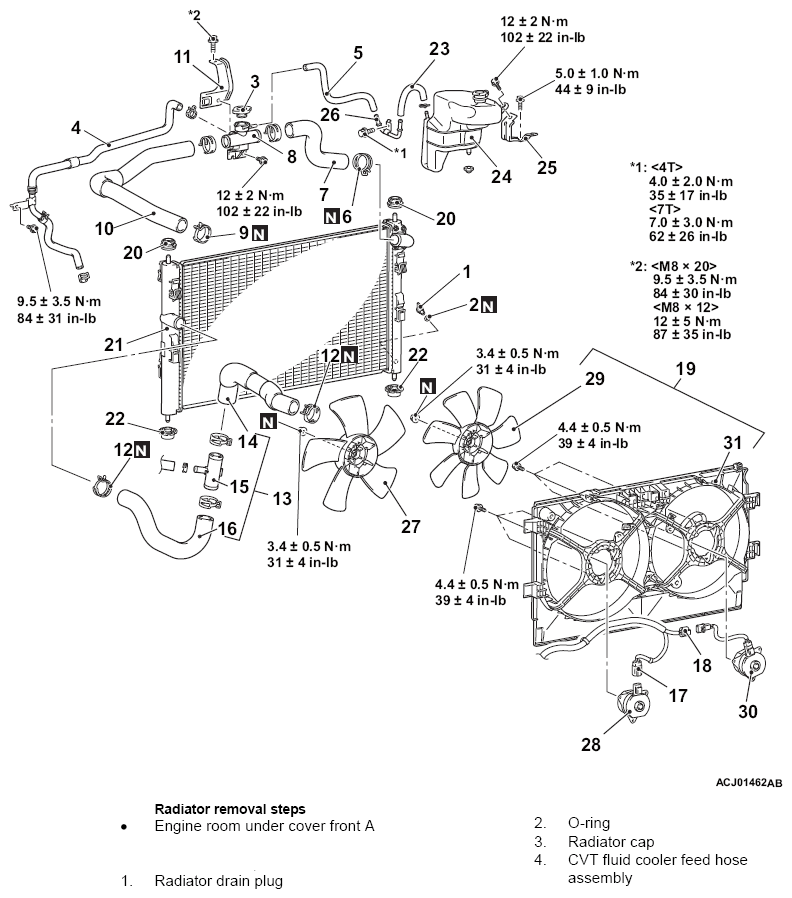

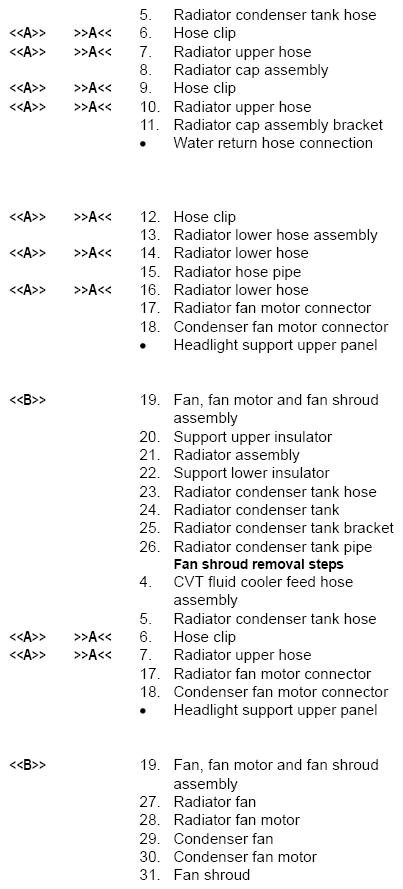

Fig 1: Removing/Installing Radiator Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
