Home >> Mitsubishi >> 2022 >> RVR LE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Engine And Transaxle

Engine And Transaxle

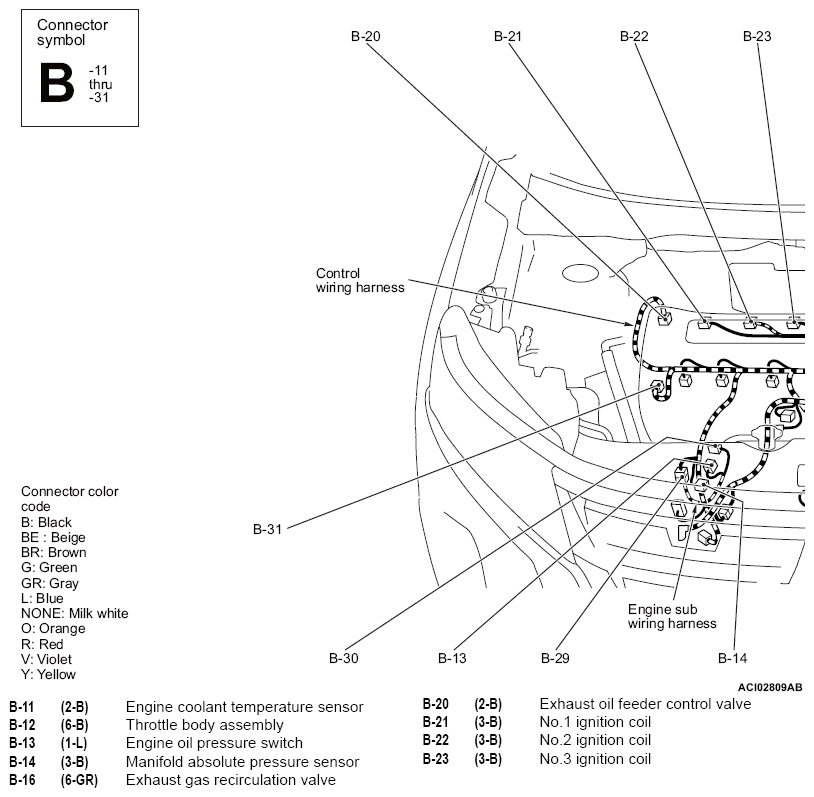

G14624355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

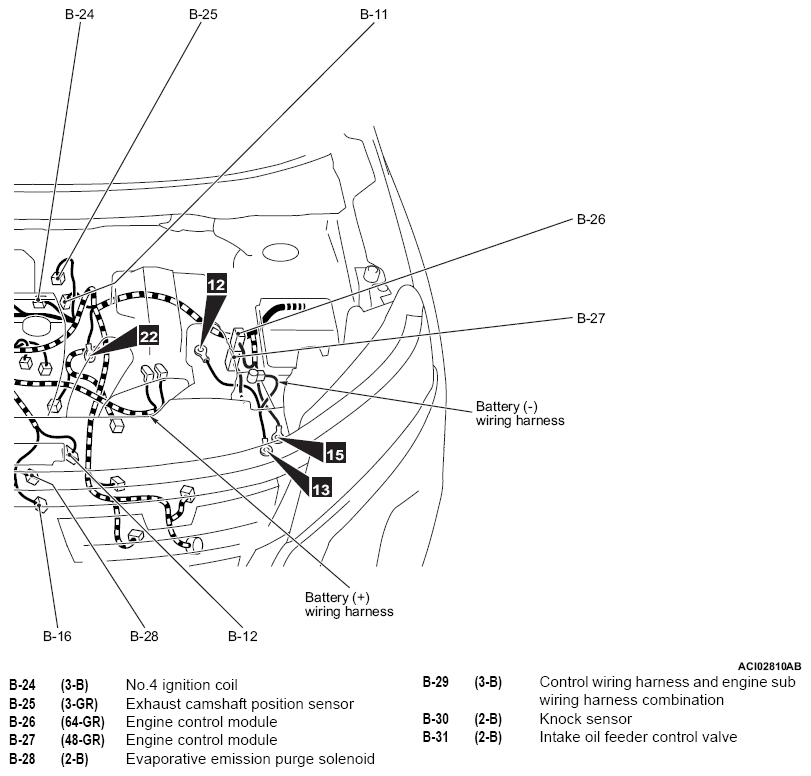

G14624356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

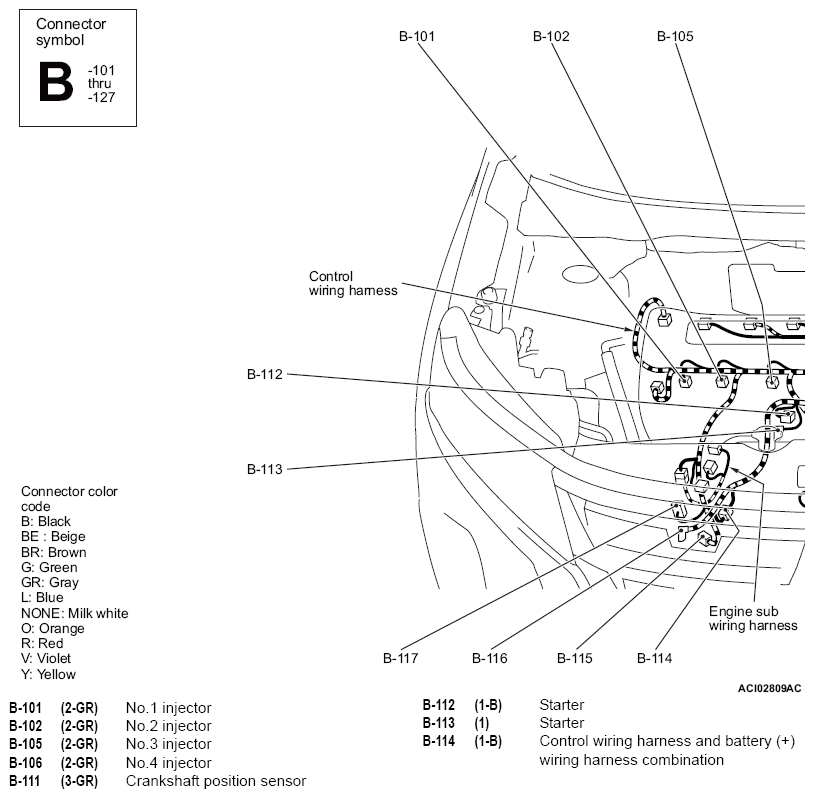

G14624357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

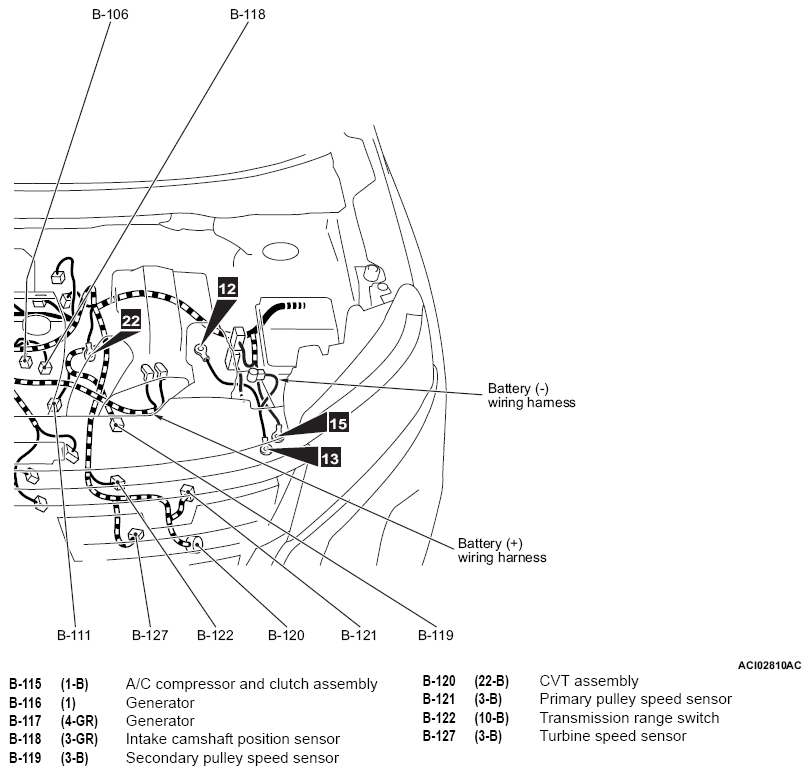

G14624358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
