Dash Panel

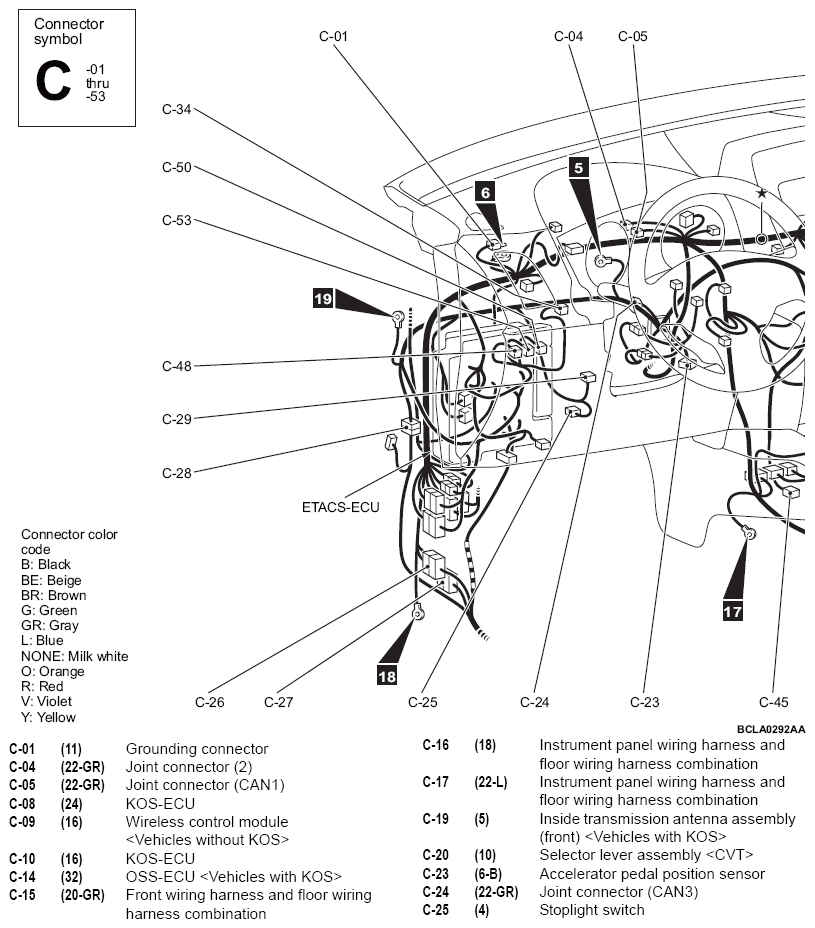

G14624359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

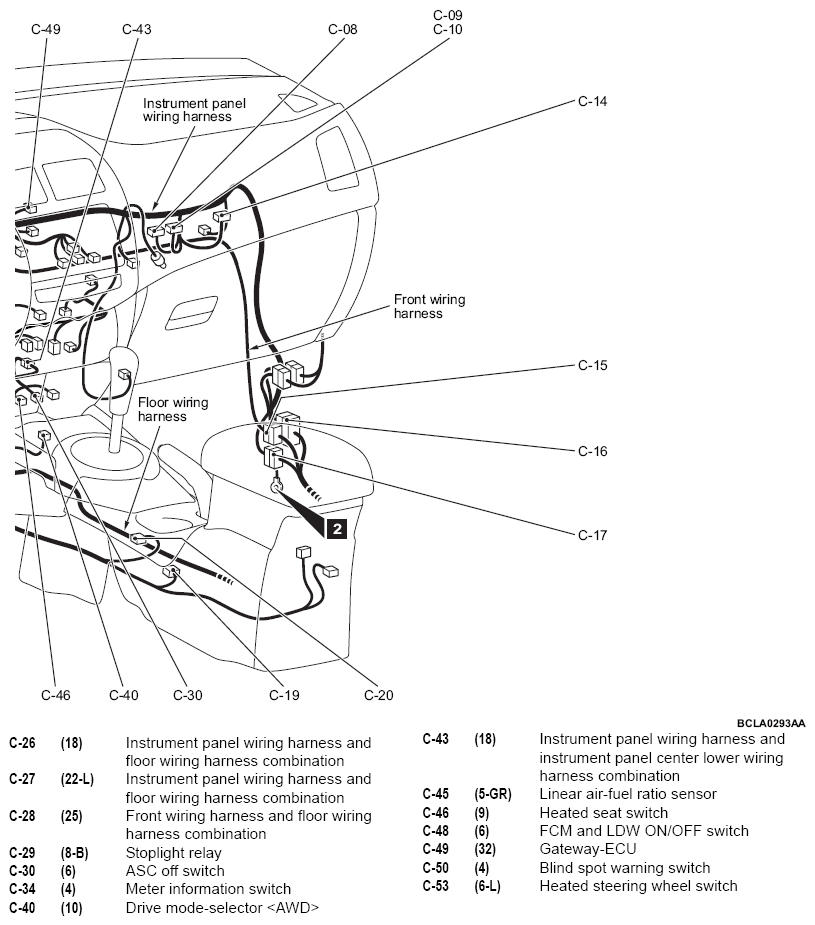

G14624360Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

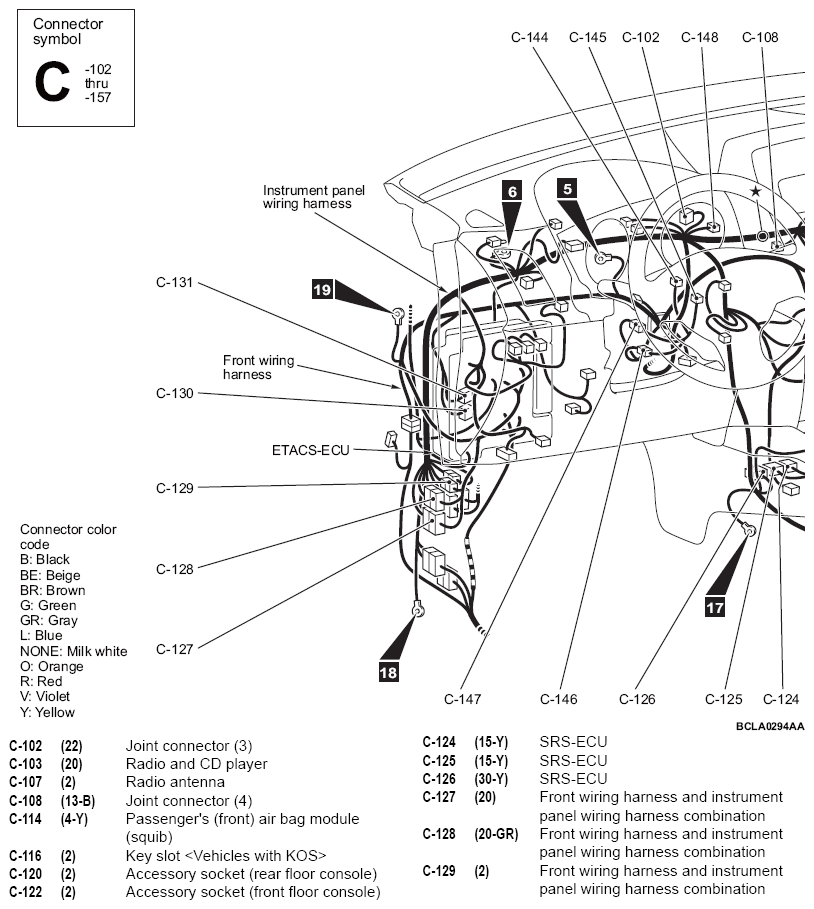

G14624361Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

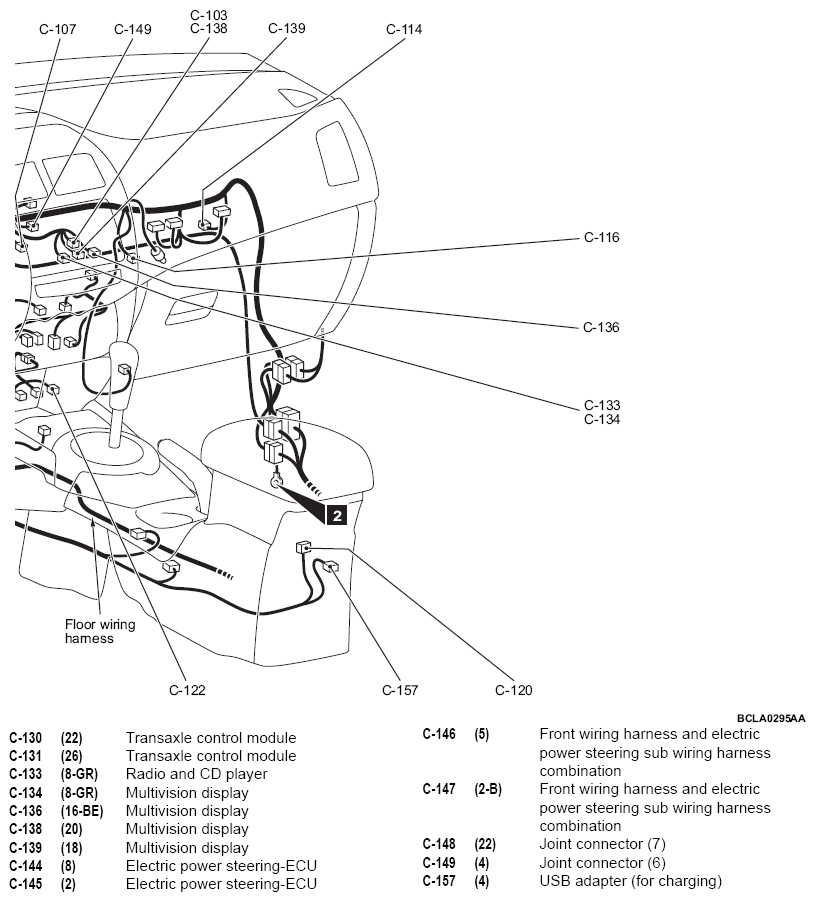

G14624362Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

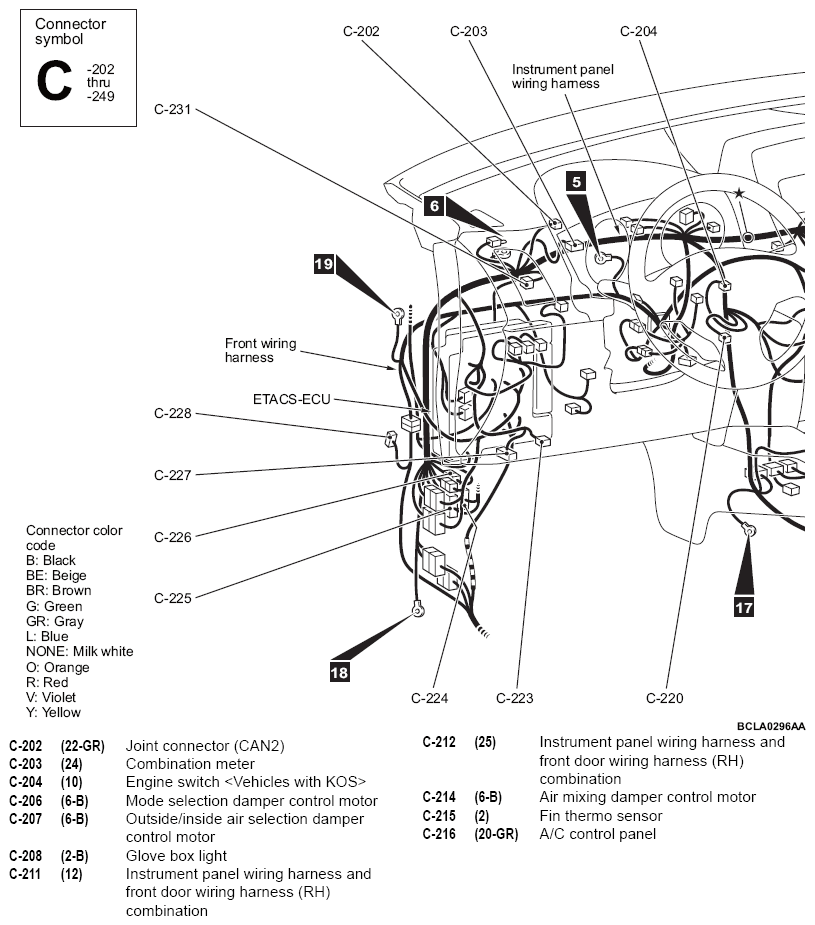

G14624363Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

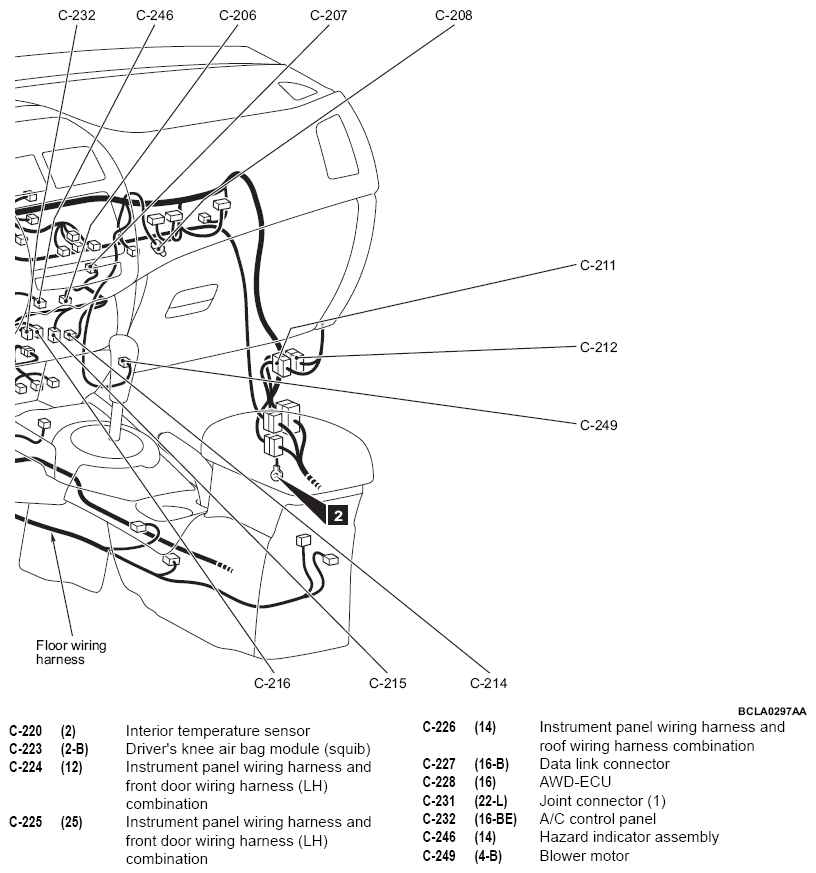

G14624364Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

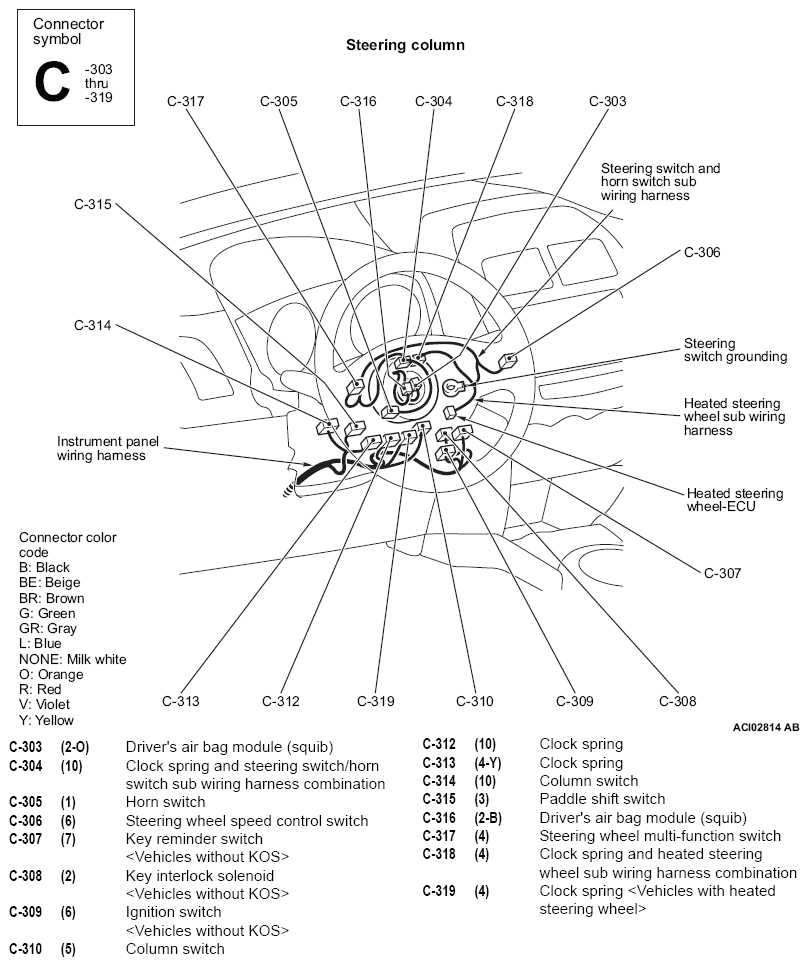

G14624365Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

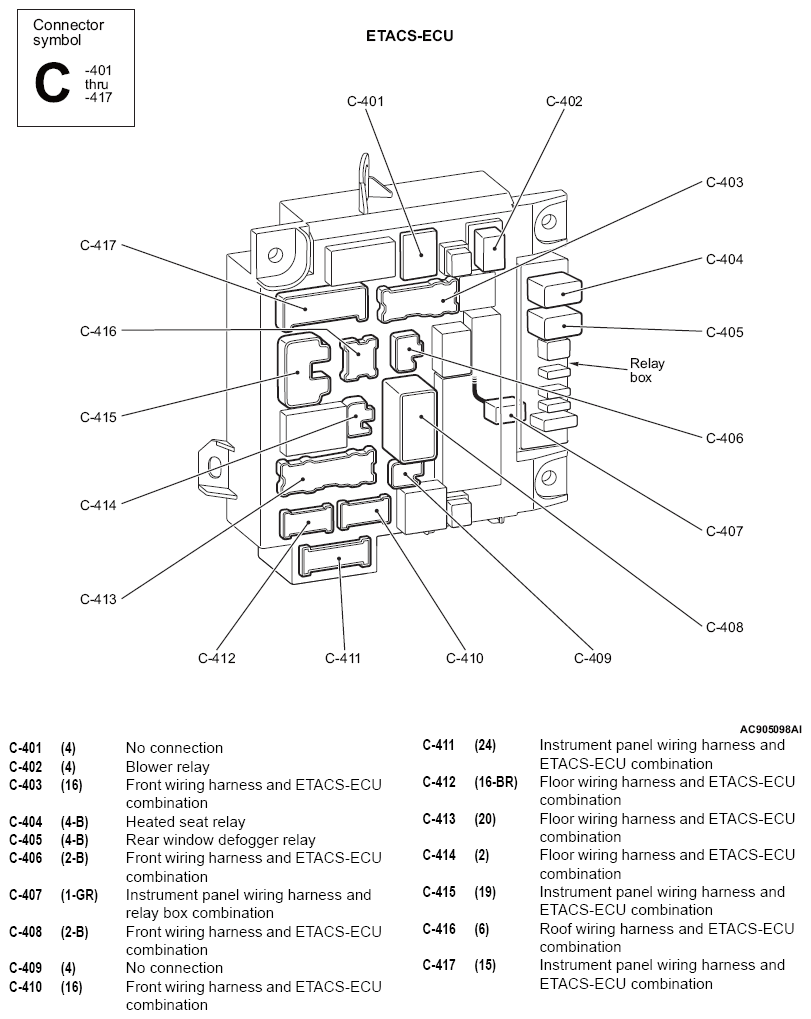

G14624366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
