Removal And Installation: Notes

Pre-removal and Post-installation Operation

• Radiator Condenser Tank Removal and Installation (Refer to - RADIATOR ).

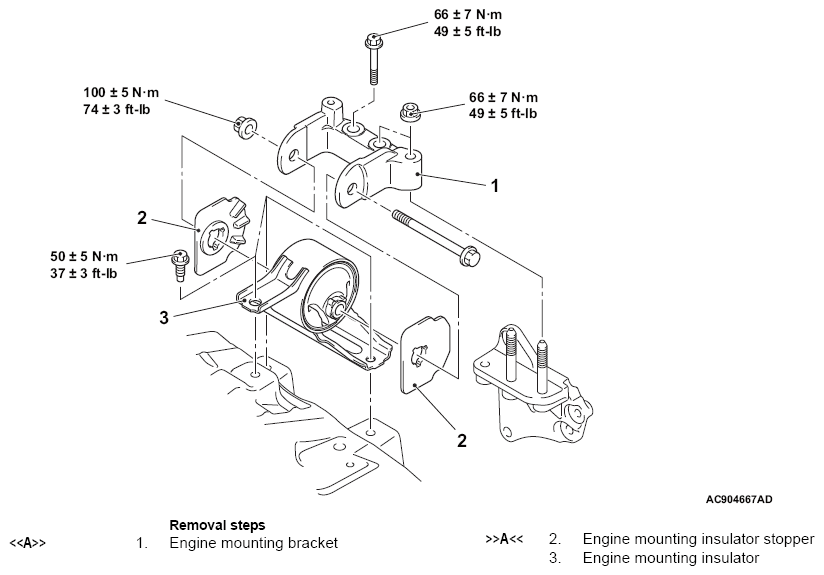

Fig 1: Removing/Installing Engine Mounting Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
