Home >> Mitsubishi >> 2022 >> RVR ES, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Battery >> Removal And Installation

Removal And Installation

CAUTION: If the battery current sensor or engine control module is replaced, make the battery current sensor learn the zero point. (Refer to , Precautions Before Service - Battery Current Sensor Calibration.)

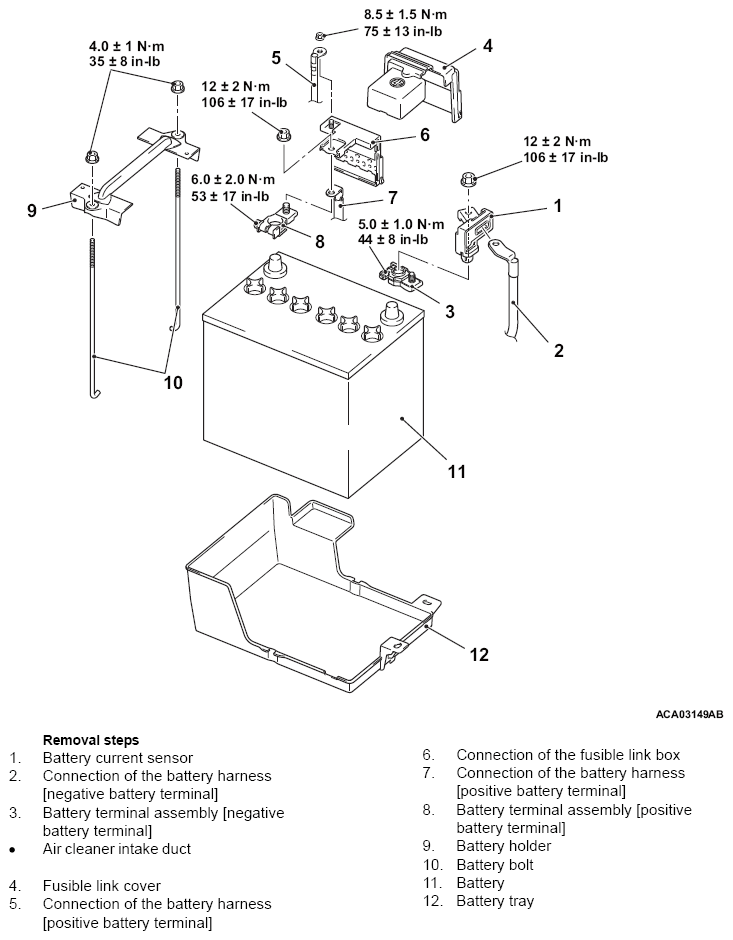

Fig 1: Removing/Installing Battery Components Location With Torque Specification
G14623183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
