Exploded View: 2WD

SEC. 200*208

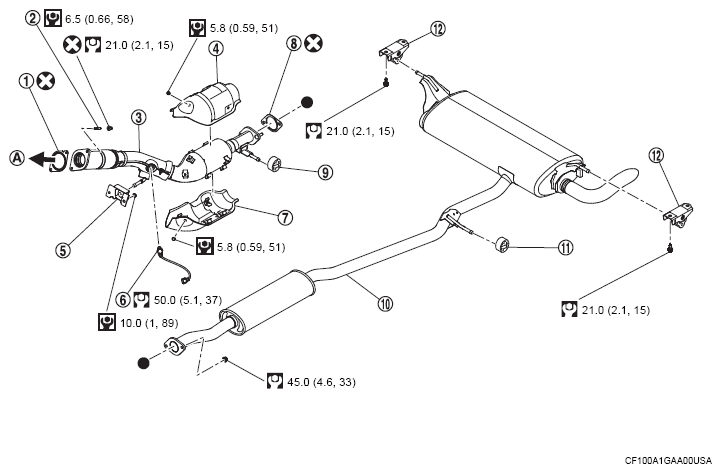

Fig 1: Exploded View Of Exhaust System With Torque Specification (2WD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Gasket	(2)	Stud bolt	(3)	Exhaust front tube
(4)	Heat insulator (upper)	(5)	Mounting rubber	(6)	Heated oxygen sensor 2
(7)	Heat insulator (lower)	(8)	Gasket	(9)	Mounting rubber
(10)	Main muffler	(11)	Mounting rubber	(12)	Mounting rubber
(A)	To exhaust manifold . Refer to EXPLODED VIEW .
	: Always replace after every disassembly .
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
: Indicates that the part is connected at points with same symbol in actual vehicle .
