Interior Room Light Control System

WIRE COLOR CODE
W: WHITE
Y: YELLOW
R: RED
P: PINK
B: BLACK
L: BLUE
G: GREEN
V: VIOLET
GR: GRAY
BE: BEIGE
BR: BROWN
SB: SKY BLUE
LG: LIGHT GREEN
L-W: BLUE-WHITE
W-R: WHITE-RED
G-W: GREEN-WHITE
Y-B: YELLOW-BLACK
R-W: RED-WHITE
B-R: BLACK-RED
B-W: BLACK-WHITE
LA-Y: LAVENDER-YELLOW
LA-L: LAVENDER-BLUE
LA-R: LAVENDER-RED
LA-W: LAVENDER-WHITE
LA-G: LAVENDER-GREEN
LA-B: LAVENDER-BLACK
LA-V: LAVENDER-VIOLET
LA-P: LAVENDER-PINK
LA-SB: LAVENDER-SKY BLUE
LA-BR: LAVENDER-BROWN
LA-BE: LAVENDER-BEIGE
LA-LG: LAVENDER-LIGHT GREEN
LA-GR: LAVENDER-GRAY

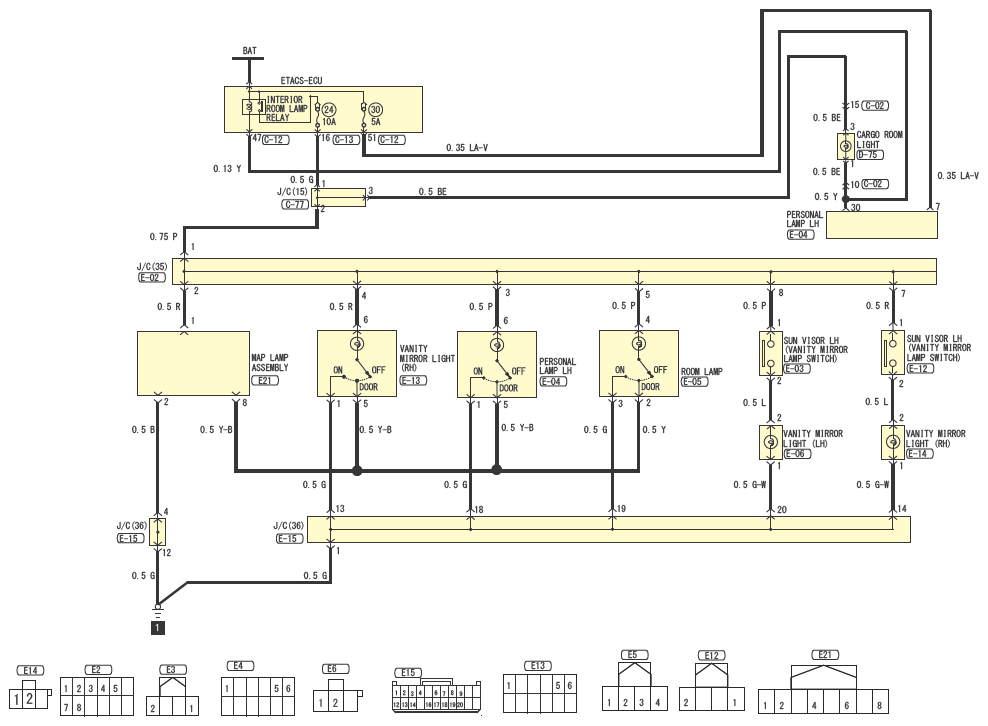

Fig 1: Interior Room Light Control System Circuit Diagram (1 Of 2)
G16321138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

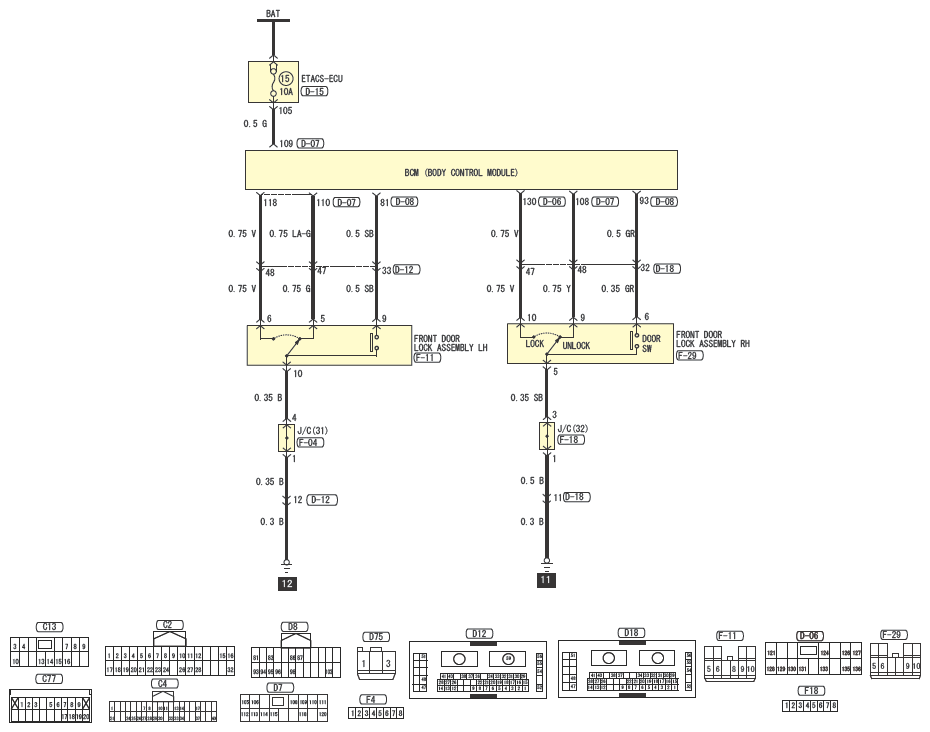

Fig 2: Interior Room Light Control System Circuit Diagram (2 Of 2)
G16321139Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connector No. C-02
Connector Name FLOOR WIRING HARNESS AND INSTRUMENT PANEL WIRING HARNESS COMBINATION
Connector Type TH32FWNH
Connector Color -
G16321140Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 LA-SB TO IPNL HARNESS
3 LA-R TO IPNL HARNESS
4 LA-L TO IPNL HARNESS
5 R TO IPNL HARNESS
6 LA-G TO IPNL HARNESS
7 LA-SB TO IPNL HARNESS
8 LA-GR TO IPNL HARNESS
9 Y TO IPNL HARNESS
10 Y TO IPNL HARNESS
11 G TO IPNL HARNESS
12 BR TO IPNL HARNESS
15 BE TO IPNL HARNESS
16 LA-Y TO IPNL HARNESS
17 LA-V TO IPNL HARNESS
19 G TO IPNL HARNESS
20 B TO IPNL HARNESS
21 BR TO IPNL HARNESS
22 LA-BR TO IPNL HARNESS
23 LA-V TO IPNL HARNESS
24 LA-LG TO IPNL HARNESS
26 R TO IPNL HARNESS
27 B TO IPNL HARNESS
28 Y TO IPNL HARNESS
32 LA-P TO IPNL HARNESS
Connector No. C-12
Connector Name ETACS-ECU
Connector Type TH40FWNH
Connector Color -
G16321141Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
31 LA-G 1
32 G 1
34 LA-BR 1
36 LA-G 1
37 LA-L 1
38 R 1
39 LA-Y 1
40 Y 1
41 LA-BR 1
42 GR 1
43 LG 1
46 LA-SB 1
47 Y 1
49 BE 1
50 GR 1
51 LA-V 1
52 LA-GR 1
53 G 1
54 LA-P 1
61 LA-GR 1
62 LA-P 1
66 LG 1
Connector No. C-13
Connector Name ETACS-ECU
Connector Type NS16FWCS
Connector Color -
G16321142Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
3 L 1
4 LG 1
7 L 1
8 LA-P 1
9 LA-SB 1
10 R 1
13 GR 1
14 Y 1
15 G 1
16 G 1
Connector No. C-77
Connector Name J/C(15)
Connector Type DH22F
Connector Color -
G16321143Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 G 1
2 G 1
3 BE 1
5 LA-GR 1
6 LA-L 1
7 LA-L 1
8 LA-L 1
9 LA-L 1
17 LA-P 1
18 LA-P 1
19 LA-P 1
20 LA-P 1
Connector No. D-06
Connector Name BCM (BODY CONTROL MODULE)
Connector Type NS16FBRCS
Connector Color -
G16321144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
121 V 1
124 LA-R 1
126 B 1
127 GR 1
128 G 1
129 Y 1
130 L 1
131 G 1
133 W 1
135 V 1
136 LA-Y 1
Connector No. D-07
Connector Name BCM (BODY CONTROL MODULE)
Connector Type NS16FGYCSCPA
Connector Color -
G16321145Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
105 B 1
106 LA-Y 1
108 LA-L 1
109 LA-Y 1
110 LA-G 1
111 LA-P 1
112 LA-L 1
113 B 1
114 LG 1
115 LA-LG 1
118 V 1
120 LA-GR 1
Connector No. D-08
Connector Name BCM (BODY CONTROL MODULE)
Connector Type TH24FGYNH
Connector Color -
G16321146Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
81 SB 1
83 LA-GR 1
86 LA-R 1
87 LA-L 1
93 GR 1
94 R 1
96 BE 1
98 Y 1
103 LA-G 1
Connector No. D-12
Connector Name FR DOOR WIRING HARNESS AND FLOOR HARNESS COMBINATION
Connector Type DH60F
Connector Color -
G16321147Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 BR TO IPNL HARNESS
2 LA-L TO IPNL HARNESS
3 L TO IPNL HARNESS
4 G TO IPNL HARNESS
5 L TO IPNL HARNESS
6 W TO IPNL HARNESS
7 GR TO IPNL HARNESS
8 BE TO IPNL HARNESS
9 P TO IPNL HARNESS
12 B TO IPNL HARNESS
13 LA-Y TO IPNL HARNESS
14 BR TO IPNL HARNESS
15 LA-LG TO IPNL HARNESS
16 LA-Y TO IPNL HARNESS
17 LA-P TO IPNL HARNESS
18 P TO IPNL HARNESS
19 Y TO IPNL HARNESS
20 GR TO IPNL HARNESS
21 SB TO IPNL HARNESS
22 BR TO IPNL HARNESS
26 LA-L TO IPNL HARNESS
27 LA-G TO IPNL HARNESS
28 GR TO IPNL HARNESS
29 V TO IPNL HARNESS
30 LG TO IPNL HARNESS
31 BE TO IPNL HARNESS
32 BR TO IPNL HARNESS
33 SB TO IPNL HARNESS
34 LA-LG TO IPNL HARNESS
36 GR TO IPNL HARNESS
37 G TO IPNL HARNESS
38 Y TO IPNL HARNESS
40 B TO IPNL HARNESS
41 SB TO IPNL HARNESS
47 LA-G TO IPNL HARNESS
48 V TO IPNL HARNESS
51 V TO IPNL HARNESS
52 B TO IPNL HARNESS
54 W TO IPNL HARNESS [With 6 speaker]
54 G TO IPNL HARNESS [With BOSE speaker]
55 G TO IPNL HARNESS [With 6 speaker]
55 R TO IPNL HARNESS [With BOSE speaker]
56 LA-W TO IPNL HARNESS
59 TBD TO IPNL HARNESS
Connector No. D-15
Connector Name ETACS-ECU
Connector Type TH08FWNH
Connector Color -
G16321148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
103 SB 1
105 LA-Y 1
107 LA-L 1
108 BR 1
109 LA-G 1
Connector No. D-18
Connector Name FLOOR WIRING HARNESS AND FRONT DOOR WIRING HARNESS
(passenger's side) COMBINATION
Connector Type DH60F
Connector Color -
G16321149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 L TO IPNL HARNESS
2 G TO IPNL HARNESS
3 LG TO IPNL HARNESS
4 W TO IPNL HARNESS
5 BR TO IPNL HARNESS
11 B TO IPNL HARNESS
12 BR TO IPNL HARNESS
13 LA-Y TO IPNL HARNESS
14 G TO IPNL HARNESS
15 LA-LG TO IPNL HARNESS
16 LA-SB TO IPNL HARNESS
25 LA-B TO IPNL HARNESS
26 LA-L TO IPNL HARNESS
27 LA-G TO IPNL HARNESS
28 R TO IPNL HARNESS
29 V TO IPNL HARNESS
30 LG TO IPNL HARNESS
31 BE TO IPNL HARNESS
32 GR TO IPNL HARNESS
33 P TO IPNL HARNESS
37 G TO IPNL HARNESS [Color of wire varies depending on production]
37 R TO IPNL HARNESS [Color of wire varies depending on production]
38 SB TO IPNL HARNESS [Color of wire varies depending on production]
38 Y TO IPNL HARNESS [Color of wire varies depending on production]
40 B TO IPNL HARNESS
41 SB TO IPNL HARNESS
47 L TO IPNL HARNESS
48 LA-L TO IPNL HARNESS
51 V TO IPNL HARNESS
52 B TO IPNL HARNESS
54 G -[With BOSE speaker]
54 W TO IPNL HARNESS [With 6 speaker]
55 G TO IPNL HARNESS [With 6 speaker]
55 R TO IPNL HARNESS [With BOSE speaker]
56 R TO IPNL HARNESS
Connector No. D-75
Connector Name CARGO ROOM LIGHT
Connector Type DH093F2
Connector Color -
G16321150Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 P 1
3 BE 1
Connector No. E-02
Connector Name J/C(35)
Connector Type DH12F
Connector Color -
G16321151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 P +B
2 R +B
3 P +B
4 R +B
5 P +B
7 R +B
8 P +B
Connector No. E-03
Connector Name SUN VISOR LH (VANITY MIRROR LAMP SWITCH)
Connector Type TH04FWNH
Connector Color -
G16321152Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 P +B
2 L GND
Connector No. E-04
Connector Name PERSONAL LAMP LH
Connector Type DH12F
Connector Color -
G16321153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 G GND
5 Y-B DSIG
6 P +B
Connector No. E-05
Connector Name ROOM LAMP
Connector Type TH04FWNH
Connector Color -
G16321154Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 L-W ILL
2 Y DSIG
3 G GND
4 P +B
Connector No. E-06
Connector Name VANITY MIRROR LIGHT (LH)
Connector Type SNA03FW
Connector Color White
G16321155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 G-W GND
2 L GND
Connector No. E-12
Connector Name SUN VISOR LH (VANITY MIRROR LAMP SWITCH)
Connector Type TH04FWNH
Connector Color -
G16321156Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 R +B
2 L GND
Connector No. E-13
Connector Name VANITY MIRROR LIGHT (RH)
Connector Type DH12F
Connector Color -
G16321157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 G GND
5 Y-B DSIG
6 R +B
Connector No. E-14
Connector Name VANITY MIRROR LIGHT (RH)
Connector Type SNA03FW
Connector Color White
G16321158Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 G-W GND
2 L +B
Connector No. E-15
Connector Name J/C(36)
Connector Type DH6422F
Connector Color -
G16321159Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 B GND
2 B GND
3 B-W GND
4 B GND
6 B GND
7 B GND
8 B GILL
9 B GSR
12 G GND
13 G GND
14 G-W GND
16 G GND
17 G GND
18 G GND
19 G GND
20 G-W GND
Connector No. F-04
Connector Name J/C(31)
Connector Type DH8F
Connector Color -
G16321160Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 B GND
2 B SW-
3 B GND
4 B GND
5 B GND
6 B GND
7 B GND
8 B GND
Connector No. F-11
Connector Name FRONT DOOR LOCK ASSEMBLY LH
Connector Type DH0910F2
Connector Color -
G16321161Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
5 G DRUL
6 V LHL
8 Y IKDS
9 SB DRSW
10 B GND
Connector No. F-18
Connector Name J/C(32)
Connector Type DH8F
Connector Color -
G16321162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
1 B GND
2 B G
3 SB GND
4 R GND
5 B GND
6 V GND
7 B GND
8 B GND
Connector No. F-29
Connector Name FRONT DOOR LOCK ASSEMBLY RH
Connector Type DH0910F2
Connector Color -
G16321163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal No. Color Of Wire Signal Name [Specification]
5 SB GND
6 GR SW
9 Y UNLC
10 V LOCK
