Rear Window Defogger

WIRE	COLOR CODE
W:	WHITE
Y:	YELLOW
R:	RED
P:	PINK
B:	BLACK
L:	BLUE
G:	GREEN
V:	VIOLET
GR:	GRAY
BE:	BEIGE
BR:	BROWN
SB:	SKY BLUE
LG:	LIGHT GREEN
L-W:	BLUE-WHITE
W-R:	WHITE-RED
G-W:	GREEN-WHITE
Y-B:	YELLOW-BLACK
R-W:	RED-WHITE
B-R:	BLACK-RED
B-W:	BLACK-WHITE
LA-Y:	LAVENDER-YELLOW
LA-L:	LAVENDER-BLUE
LA-R:	LAVENDER-RED
LA-W:	LAVENDER-WHITE
LA-G:	LAVENDER-GREEN
LA-B:	LAVENDER-BLACK
LA-V:	LAVENDER-VIOLET
LA-P:	LAVENDER-PINK
LA-SB:	LAVENDER-SKY BLUE
LA-BR:	LAVENDER-BROWN
LA-BE:	LAVENDER-BEIGE
LA-LG:	LAVENDER-LIGHT GREEN
LA-GR:	LAVENDER-GRAY

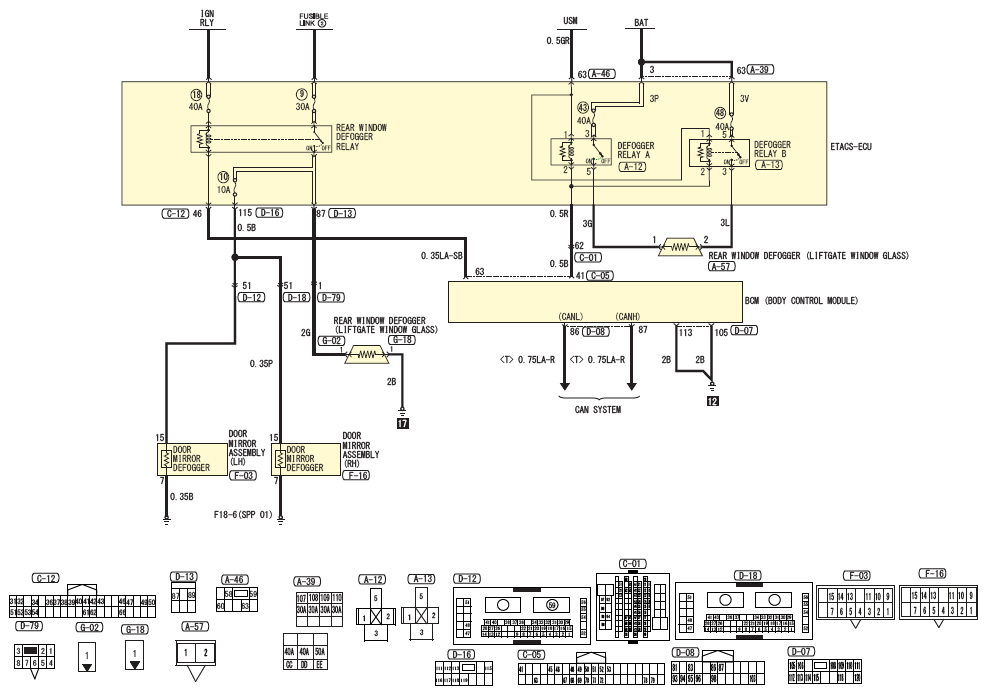

Fig 1: Rear Window Defogger Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Connector No.	A-12
Connector Name	DEFOGGER RELAY A
Connector Type	DH5F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	GR	1
2	R	1
3	P	1
5	G	1

Connector No.	A-13
Connector Name	DEFOGGER RELAY B
Connector Type	DH5F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	B	1
2	P	1
3	L	1
5	V	1

Connector No.	A-39
Connector Name	JUNCTION BLOCK
Connector Type	DH10F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
107	GR	1
108	P	1
109	R	1
110	W	1 [Color of wire varies depending on production]
110	Y	1 [Color of wire varies depending on production]
CC	P	1
DD	V	1
EE	G	¹

Connector No.	A-46
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM
Connector Type	NS08FBRCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
58	L	1
59	P	1
60	SB	1
63	B	1 [Color of wire varies depending on production]
63	GR	1 [Color of wire varies depending on production]
63	L	1 [Color of wire varies depending on production]

Connector No.	A-57
Connector Name	REAR WINDOW DEFOGGER (LIFTGATE WINDOW GLASS)
Connector Type	DH2M
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	G	1
2	L	1

Connector No.	C-01
Connector Name	FRONT WIRING HARNESS AND INSTRUMENT PANEL HARNESS COMBINATION
Connector Type	DH100F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
11	LA-GR	1
12	LA-V	1
13	Y	1
14	LA-G	1
15	L	1
20	R	1
21	BR	1
22	V	1
23	LA-BR	1
24	SB	1
25	P	1
26	LG	1
27	Y	1
28	W	1
29	BR	1
30	SB	1
31	SB	1
32	V	1
33	BE	1
34	BR	1
35	R	1
36	Y	1
37	L	1
38	BE	1
39	P	1
41	LG	1
42	W	1
43	B	1
44	GR	1
45	BR	1
46	L	1
47	LG	1
48	BR	1
49	GR	1
50	B	1
51	LA-L	1
52	LA-P	1
57	R	1
58	LA-L	1
59	LA-R	1
60	G	1
62	B	1
67	Y	1
68	B	1
69	GR	1
70	R	1
71	B	1
72	W	1
73	B	1
92	B	1
94	L	1
97	B	1
98	R	1
99	R	1
100	SB	1

Connector No.	C-05
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH40FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
41	B	1
45	L	1
46	P	1
48	SB	1
49	BR	1
50	Y	1
51	V	1
52	BE	1
53	GR	1
63	LA-SB	1
67	V	1
68	W	1
69	G	1
70	P	1
71	LG	1
72	L	1
78	G	1
79	V	1

Connector No.	C-12
Connector Name	ETACS-ECU
Connector Type	TH40FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
31	LA-G	1
32	G	1
34	LA-BR	1
36	LA-G	1
37	LA-L	1
38	R	1
39	LA-Y	1
40	Y	1
41	LA-BR	1
42	GR	1
43	LG	1
46	LA-SB	1
47	Y	1
49	BE	1
50	GR	1
51	LA-V	1
52	LA-GR	1
53	G	1
54	LA-P	1
61	LA-GR	1
62	LA-P	1
66	LG	1

Connector No.	D-07
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	NS16FGYCSCPA
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
105	B	1
106	LA-Y	1
108	LA-L	1
109	LA-Y	1
110	LA-G	1
111	LA-P	1
112	LA-L	1
113	B	1
114	LG	1
115	LA-LG	1
118	V	1
120	LA-GR	1

Connector No.	D-08
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH24FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
81	SB	1
83	LA-GR	1
86	LA-R	1
87	LA-L	1
93	GR	1
94	R	1
96	BE	1
98	Y	1
103	LA-G	1

Connector No.	D-12
Connector Name	FR DOOR WIRING HARNESS AND FLOOR HARNESS COMBINATION
Connector Type	DH60F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	BR	TO IPNL HARNESS
2	LA-L	TO IPNL HARNESS
3	L	TO IPNL HARNESS
4	G	TO IPNL HARNESS
5	L	TO IPNL HARNESS
6	W	TO IPNL HARNESS
7	GR	TO IPNL HARNESS
8	BE	TO IPNL HARNESS
9	P	TO IPNL HARNESS
12	B	TO IPNL HARNESS
13	LA-Y	TO IPNL HARNESS
14	BR	TO IPNL HARNESS
15	LA-LG	TO IPNL HARNESS
16	LA-Y	TO IPNL HARNESS
17	LA-P	TO IPNL HARNESS
18	P	TO IPNL HARNESS
19	Y	TO IPNL HARNESS
20	GR	TO IPNL HARNESS
21	SB	TO IPNL HARNESS
22	BR	TO IPNL HARNESS
26	LA-L	TO IPNL HARNESS
27	LA-G	TO IPNL HARNESS
28	GR	TO IPNL HARNESS
29	V	TO IPNL HARNESS
30	LG	TO IPNL HARNESS
31	BE	TO IPNL HARNESS
32	BR	TO IPNL HARNESS
33	SB	TO IPNL HARNESS
34	LA-LG	TO IPNL HARNESS
36	GR	TO IPNL HARNESS
37	G	TO IPNL HARNESS
38	Y	TO IPNL HARNESS
40	B	TO IPNL HARNESS
41	SB	TO IPNL HARNESS
47	LA-G	TO IPNL HARNESS
48	V	TO IPNL HARNESS
51	V	TO IPNL HARNESS
52	B	TO IPNL HARNESS
54	W	TO IPNL HARNESS [With 6 speaker]
54	G	TO IPNL HARNESS [With BOSE speaker]
55	G	TO IPNL HARNESS [With 6 speaker]
55	R	TO IPNL HARNESS [With BOSE speaker]
56	LA-W	TO IPNL HARNESS
59	TBD	TO IPNL HARNESS

Connector No.	D-13
Connector Name	ETACS-ECU
Connector Type	M06FWLC
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
87	G	1
89	BR	1

Connector No.	D-16
Connector Name	ETACS-ECU
Connector Type	NS12FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
111	L	1
112	GR	1
113	R	1
115	V	1
116	LA-GR	1
117	LA-P	1
118	LA-Y	1
119	LA-LG	1

Connector No.	D-18
Connector Name	FLOOR WIRING HARNESS AND FRONT DOOR WIRING HARNESS (passenger's side) COMBINATION
Connector Type	DH60F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	L	TO IPNL HARNESS
2	G	TO IPNL HARNESS
3	LG	TO IPNL HARNESS
4	W	TO IPNL HARNESS
5	BR	TO IPNL HARNESS
11	B	TO IPNL HARNESS
12	BR	TO IPNL HARNESS
13	LA-Y	TO IPNL HARNESS
14	G	TO IPNL HARNESS
15	LA-LG	TO IPNL HARNESS
16	LA-SB	TO IPNL HARNESS
25	LA-B	TO IPNL HARNESS
26	LA-L	TO IPNL HARNESS
27	LA-G	TO IPNL HARNESS
28	R	TO IPNL HARNESS
29	V	TO IPNL HARNESS
30	LG	TO IPNL HARNESS
31	BE	TO IPNL HARNESS
32	GR	TO IPNL HARNESS
33	P	TO IPNL HARNESS
37	G	TO IPNL HARNESS [Color of wire varies depending on production]
37	R	TO IPNL HARNESS [Color of wire varies depending on production]
38	SB	TO IPNL HARNESS [Color of wire varies depending on production]
38	Y	TO IPNL HARNESS [Color of wire varies depending on production]
40	B	TO IPNL HARNESS
41	SB	TO IPNL HARNESS
47	L	TO IPNL HARNESS
48	LA-L	TO IPNL HARNESS
51	V	TO IPNL HARNESS
52	B	TO IPNL HARNESS
54	G	-[With BOSE speaker]
54	W	TO IPNL HARNESS [With 6 speaker]
55	G	TO IPNL HARNESS [With 6 speaker]
55	R	TO IPNL HARNESS [With BOSE speaker]
56	R	TO IPNL HARNESS

Connector No.	D-79
Connector Name	FLOOR WIRING HARNESS AND LIFTGATE WIRING HARNESS COMBINATION
Connector Type	NS08MWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	G	TO IPNL HARNESS
2	LA-SB	TO IPNL HARNESS
3	V	TO IPNL HARNESS
4	LA-R	TO IPNL HARNESS
5	LA-L	TO IPNL HARNESS
6	SB	TO IPNL HARNESS
7	LA-G	TO IPNL HARNESS
8	B	TO IPNL HARNESS

Connector No.	F-03
Connector Name	DOOR MIRROR ASSEMBLY (LH)
Connector Type	DH16M
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	W	PM-
2	P	HOR
3	GR	CL
4	SB	BSW
5	BE	ST+
6	V	MA
7	B	GND
9	R	PM+
10	G	VER
11	LG	OP
13	Y	MB
14	L	MC
15	BR	HT+

Connector No.	F-16
Connector Name	DOOR MIRROR ASSEMBLY (RH)
Connector Type	DH16M
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	W	PM-
2	GR	HOR
3	G	CL
4	SB	BSW
5	LG	ST+
6	L	MA
7	V	GND
9	R	PM+
10	BR	VER
11	BE	OP
13	Y	MB
14	G	MC
15	P	HT+

Connector No.	G-02
Connector Name	REAR WINDOW DEFOGGER (LIFTGATE WINDOW GLASS)
Connector Type	DHPL1F1
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	G	DEF+

Connector No.	G-18
Connector Name	REAR WINDOW DEFOGGER
Connector Type	DHPL1F1
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	B	-
