Ignition Power Supply: Notes

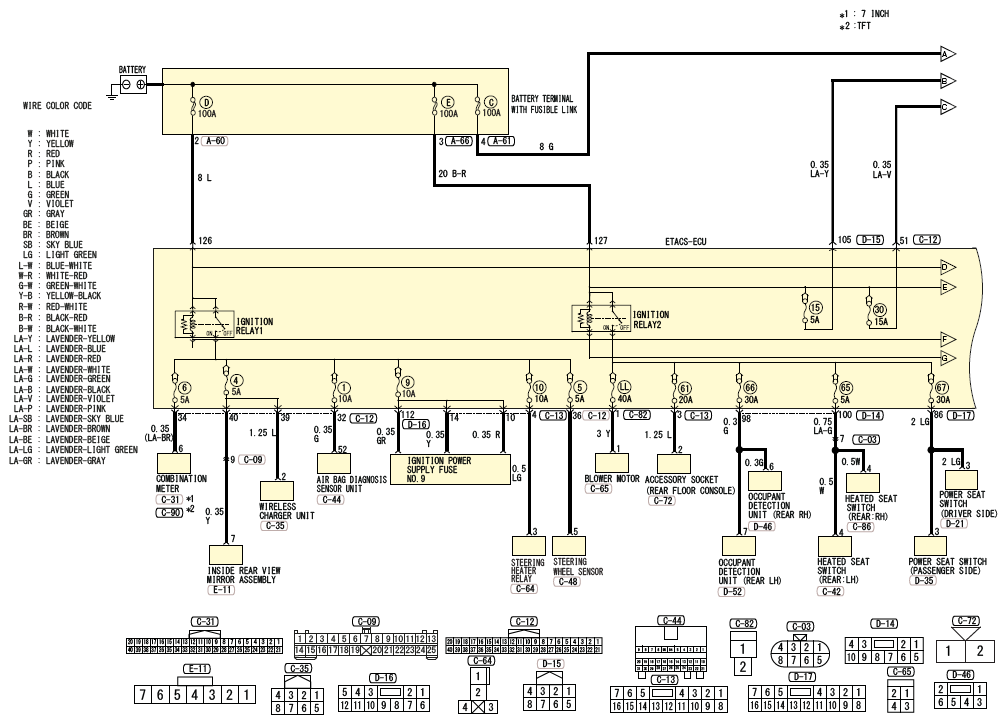

Fig 1: Ignition Power Supply Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

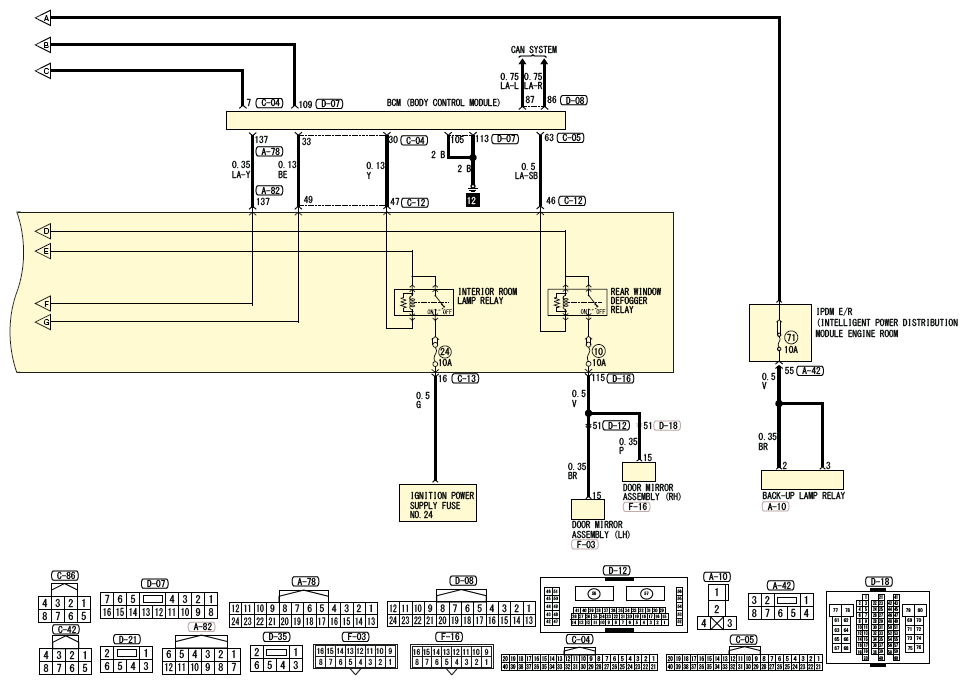

Fig 2: Ignition Power Supply Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

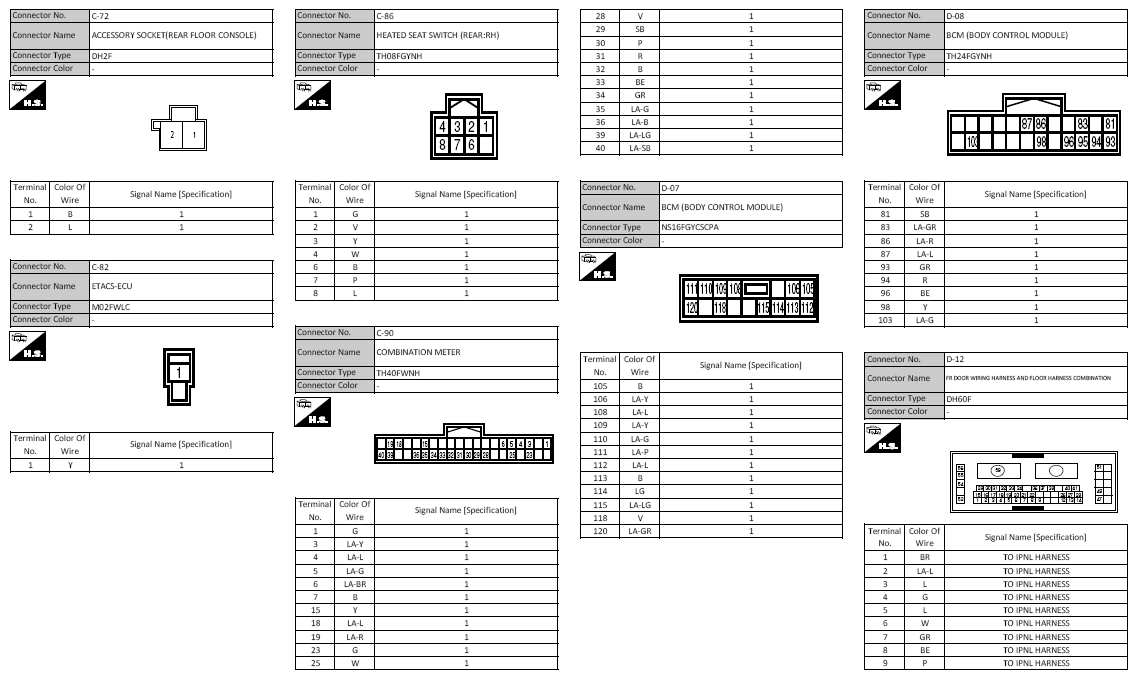

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

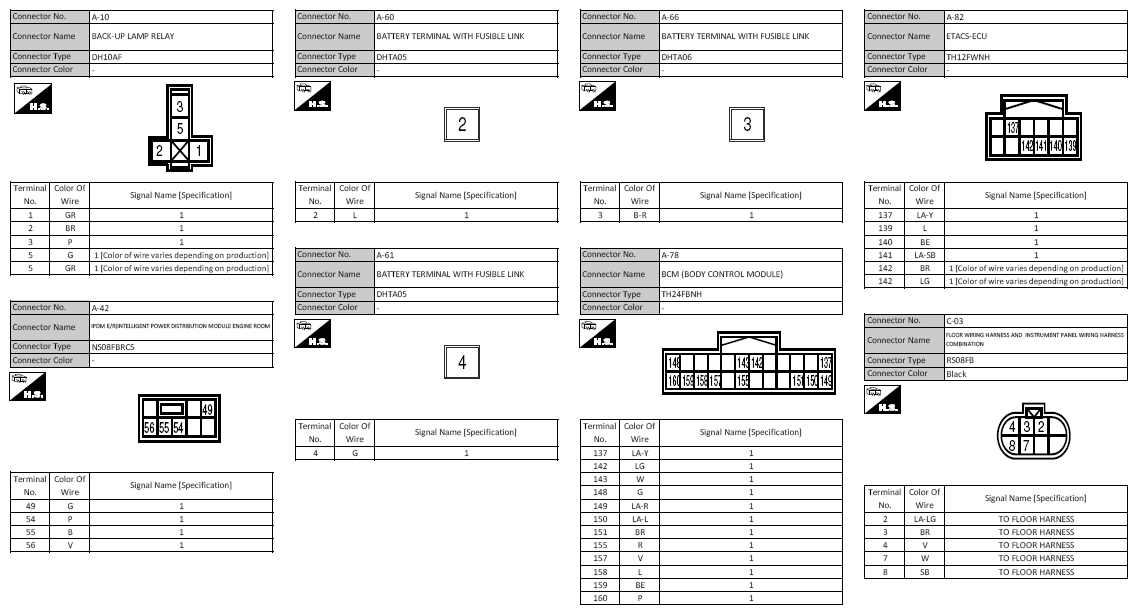

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

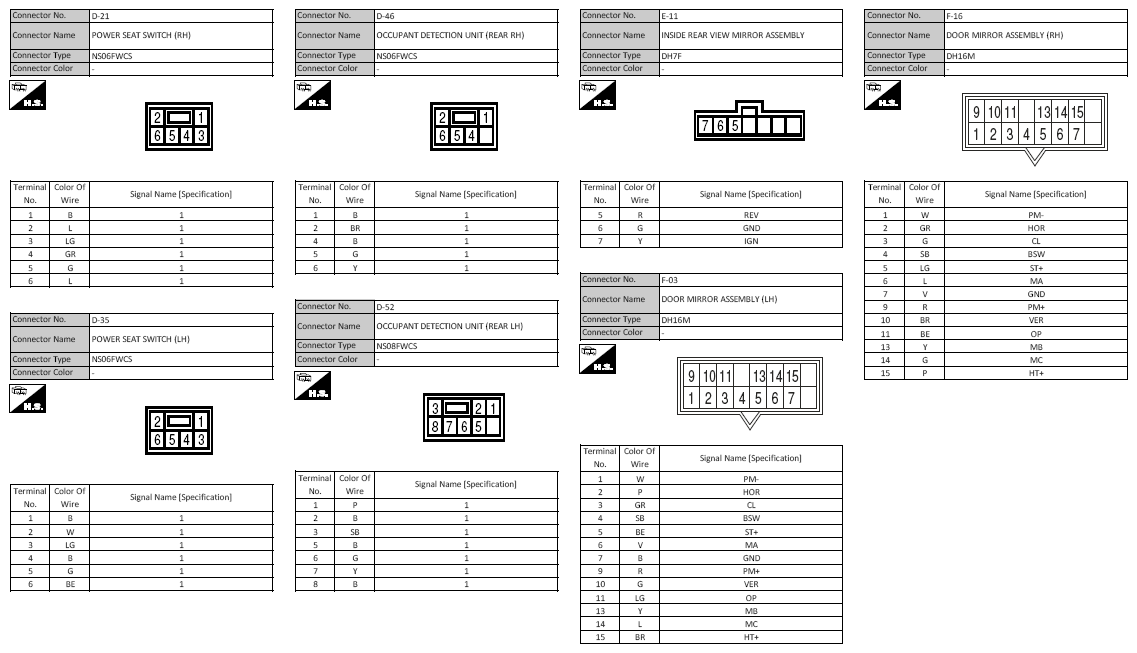

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

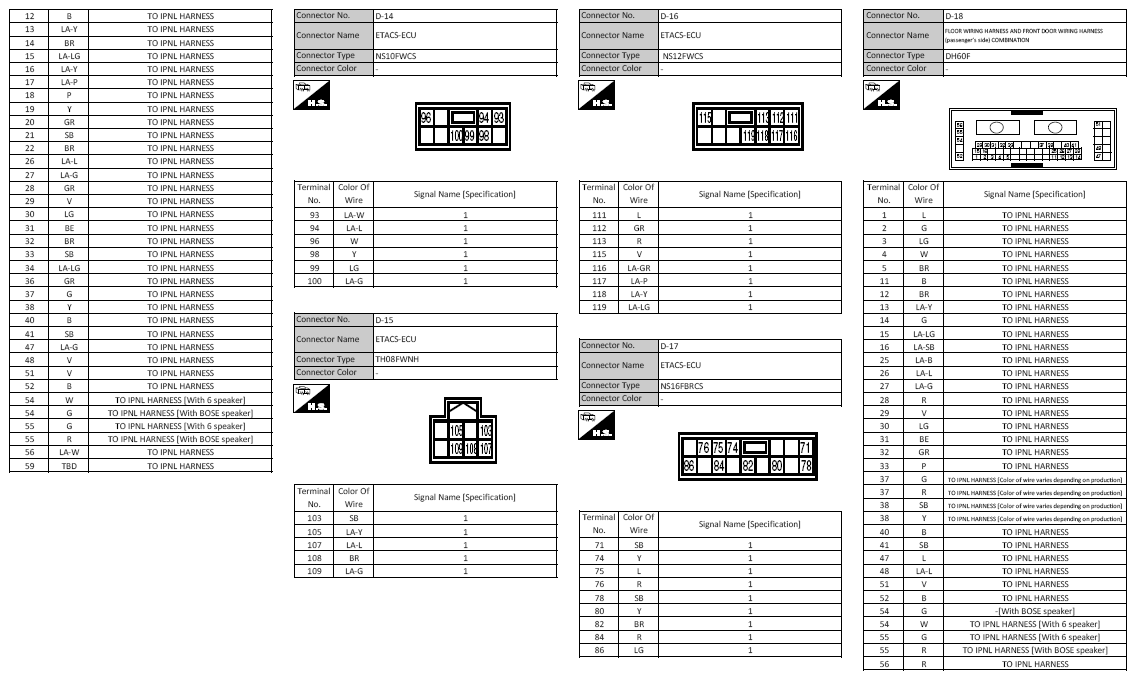

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

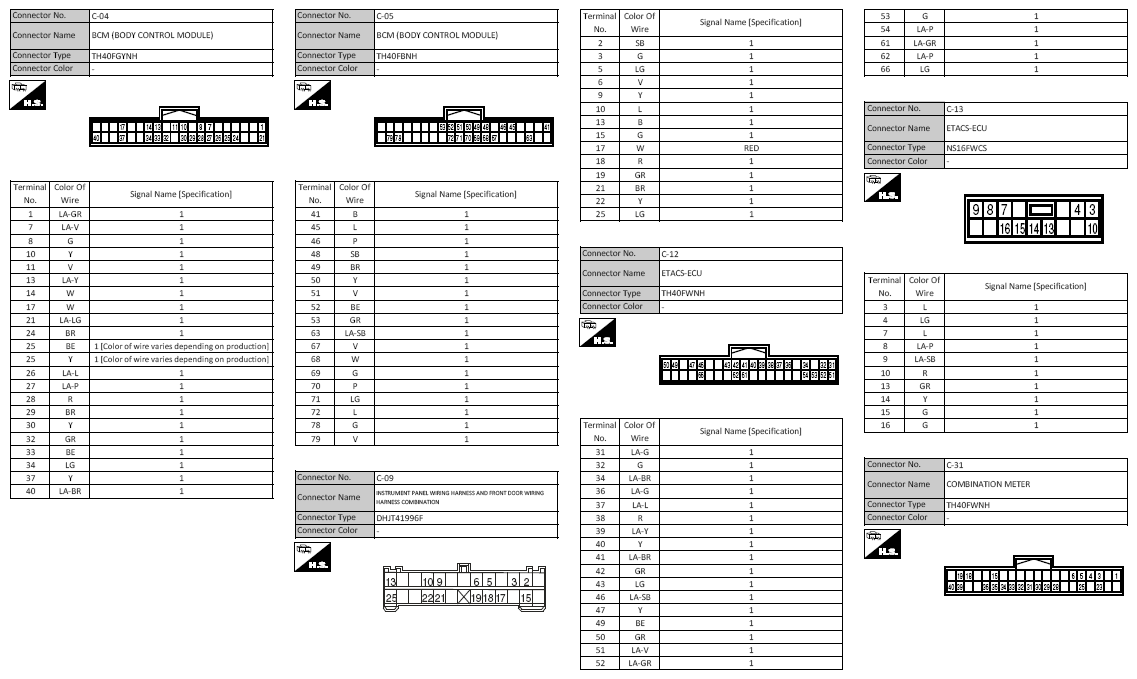

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

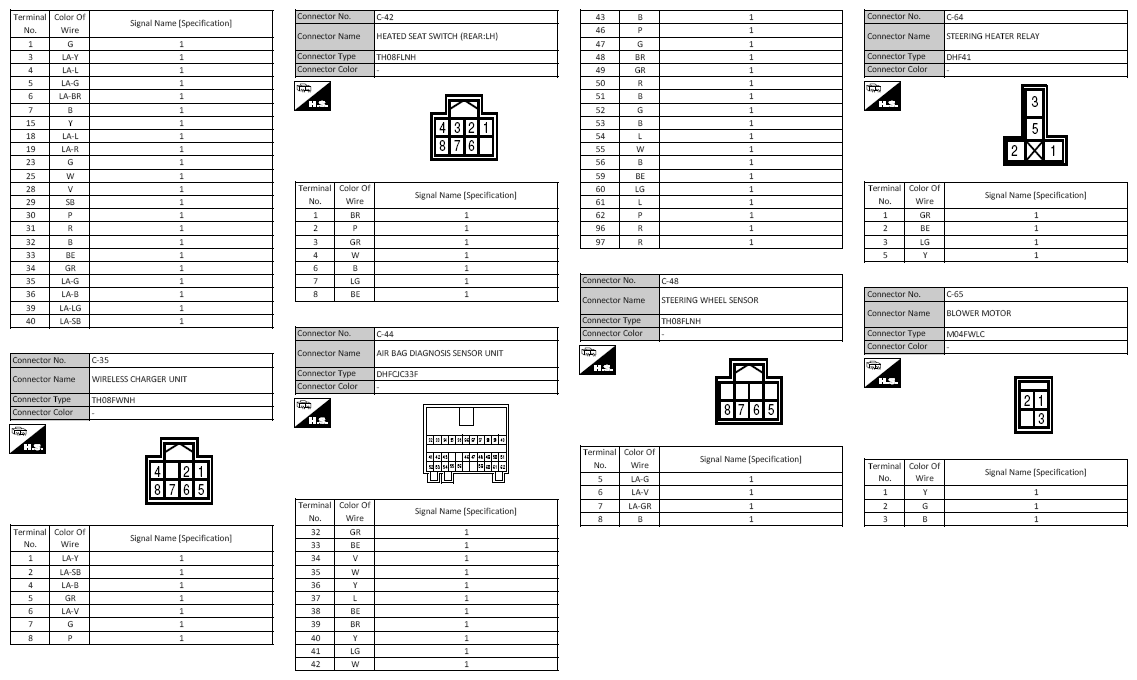

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)
