Battery Power Supply: Notes

CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

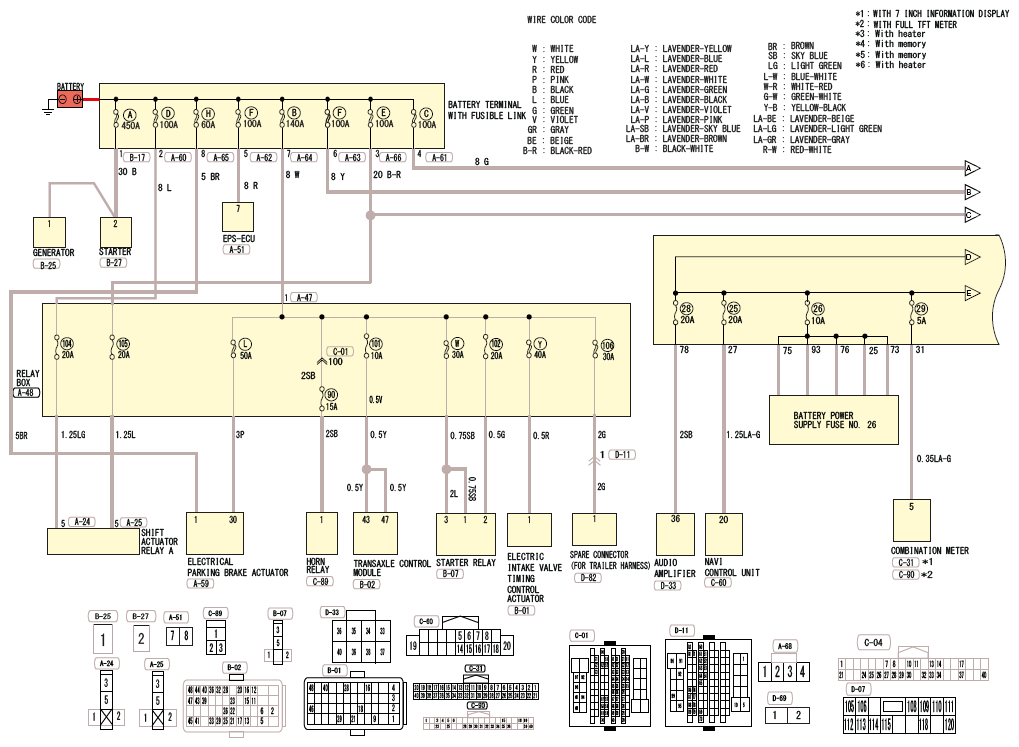

Fig 1: Battery Power Supply Circuit Diagram (1 Of 4)
G16052958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

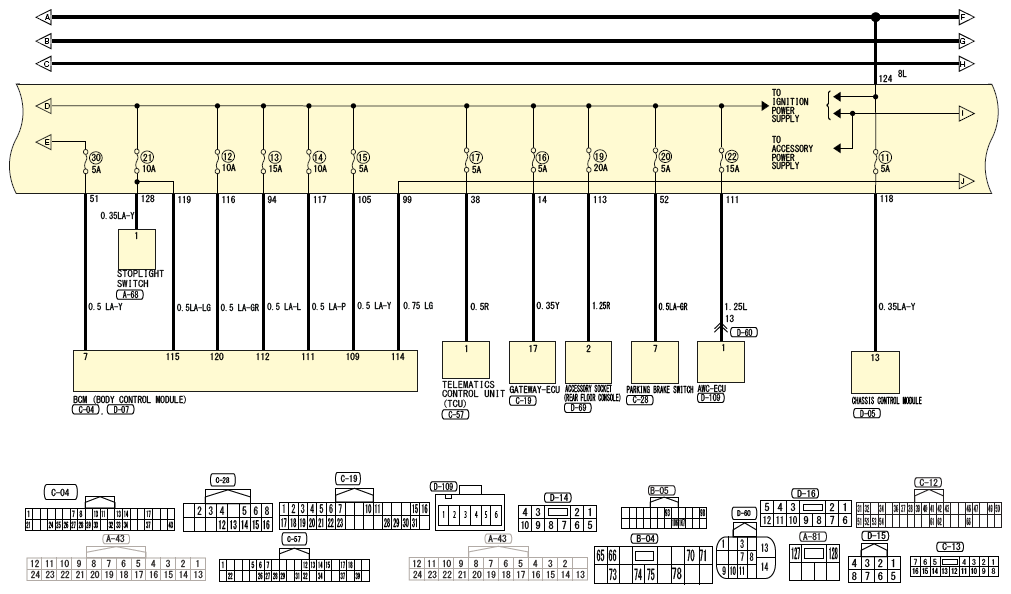

Fig 2: Battery Power Supply Circuit Diagram (2 Of 4)
G16052959Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

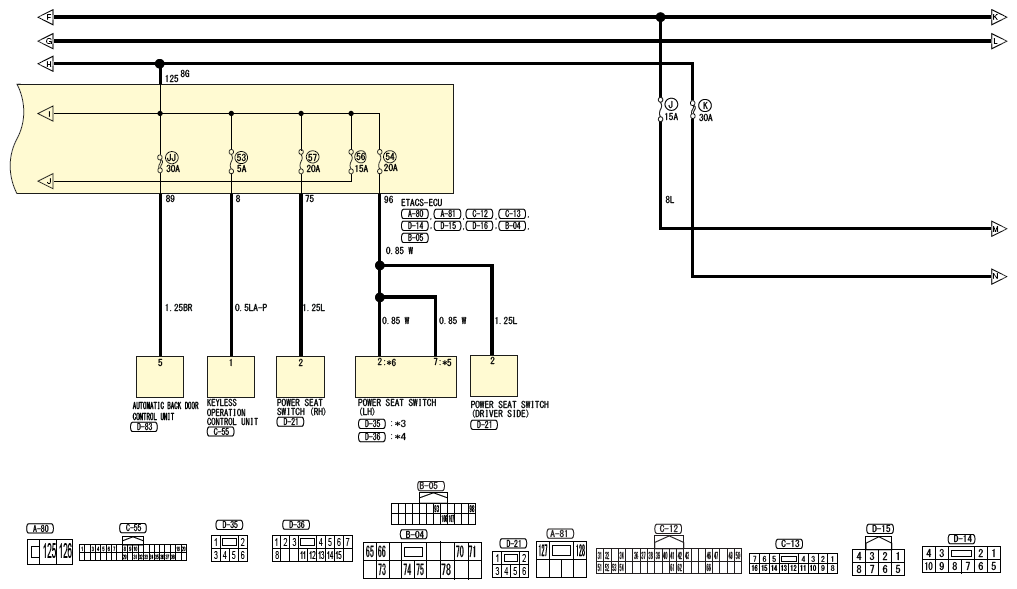

Fig 3: Battery Power Supply Circuit Diagram (3 Of 4)
G16052960Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

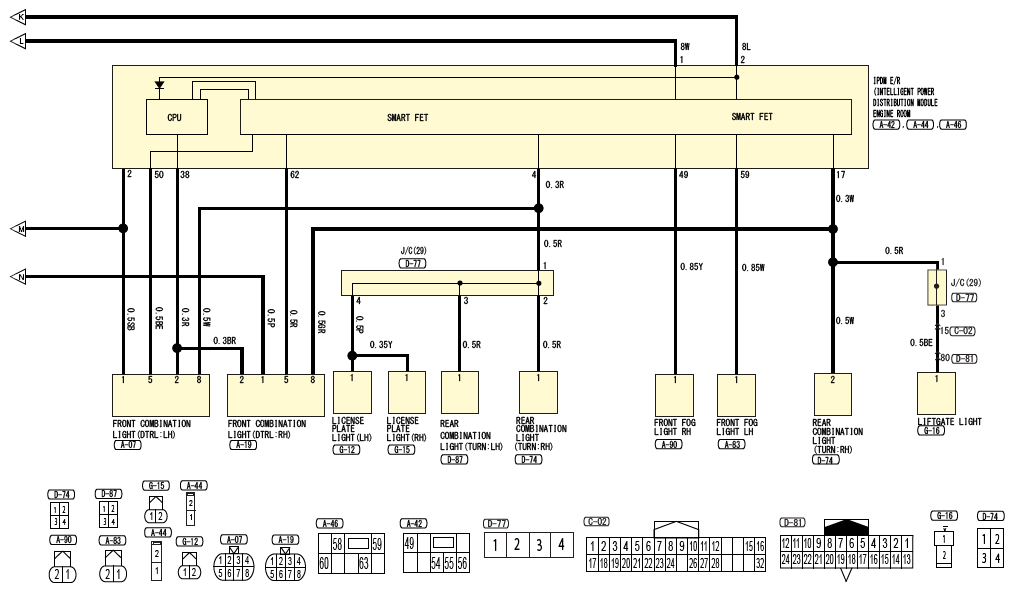

Fig 4: Battery Power Supply Circuit Diagram (4 Of 4)
G16052961Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

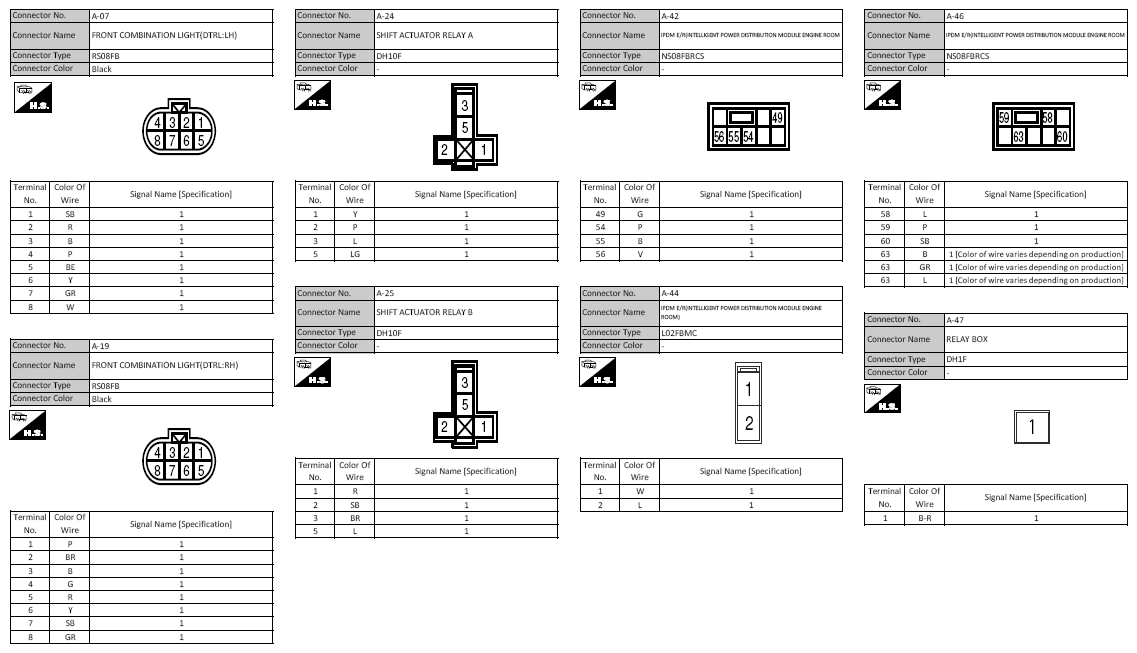

G16052962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

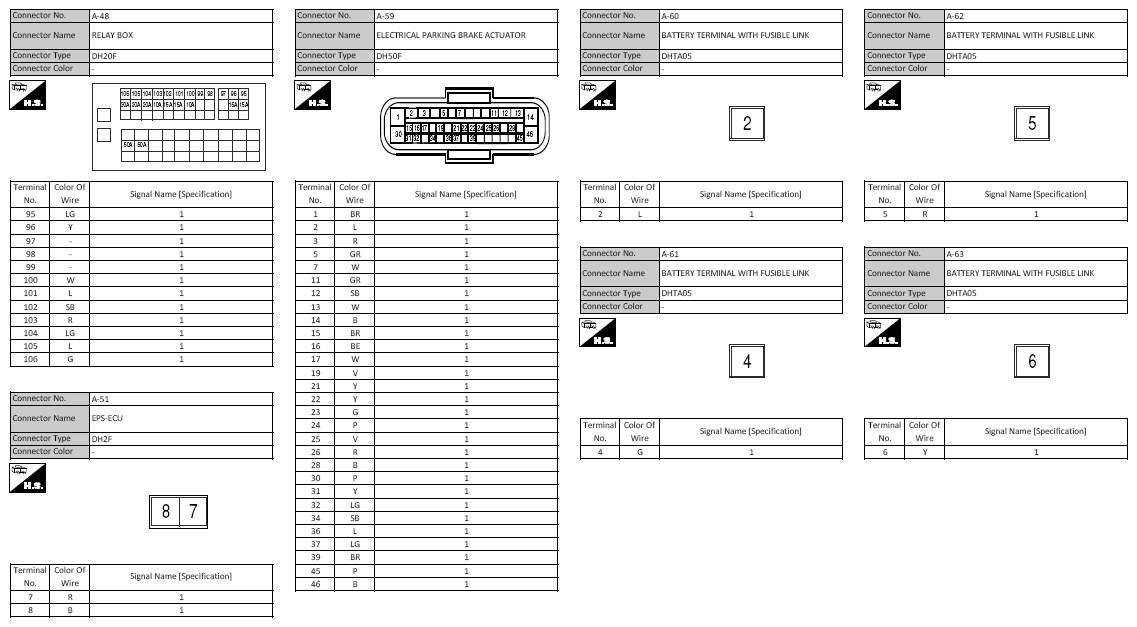

G16052963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

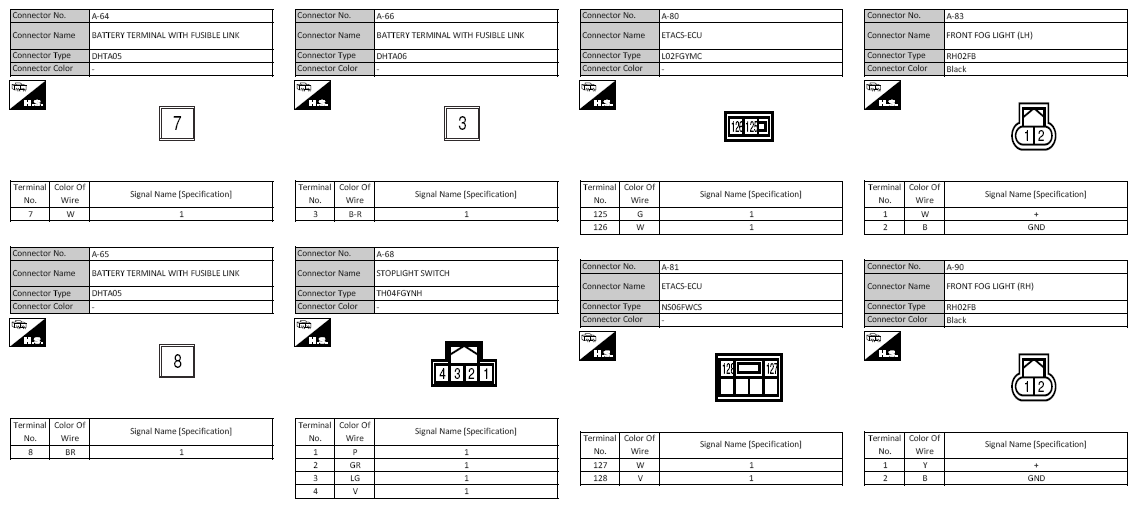

G16052964Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

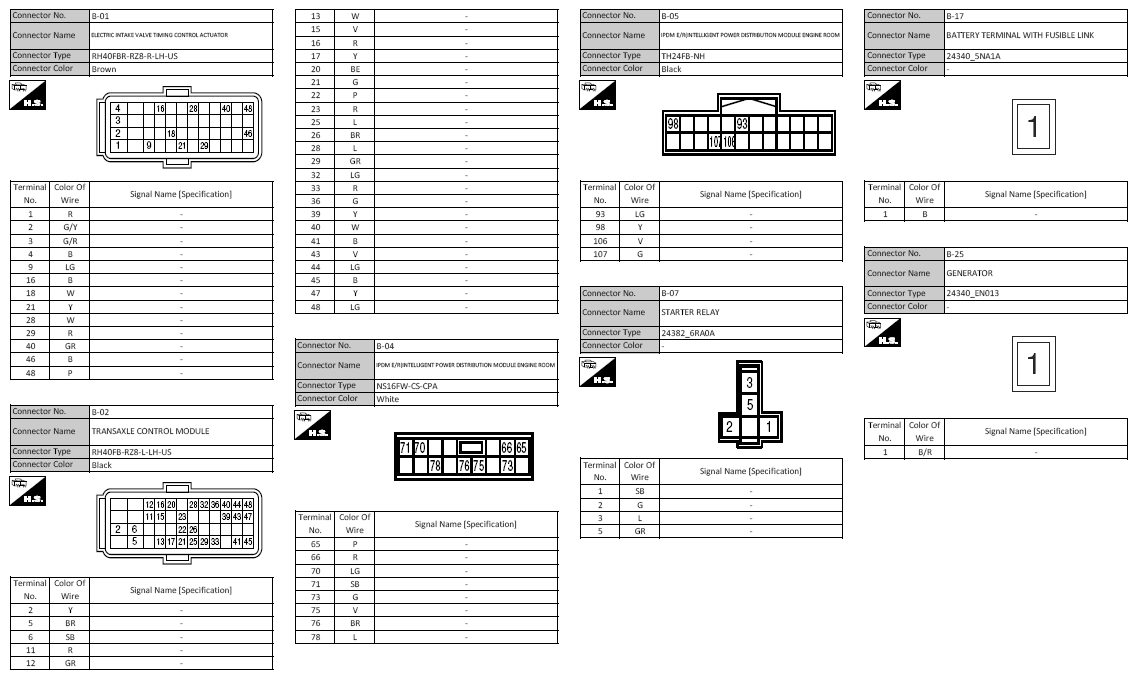

G16052965Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

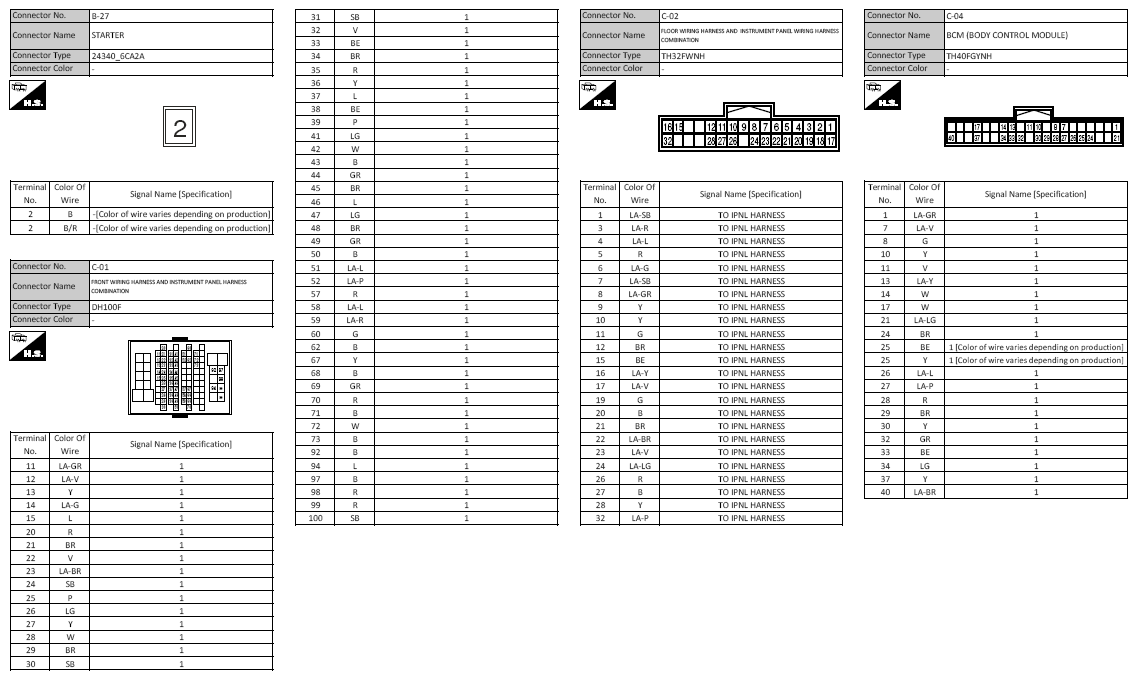

G16052966Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

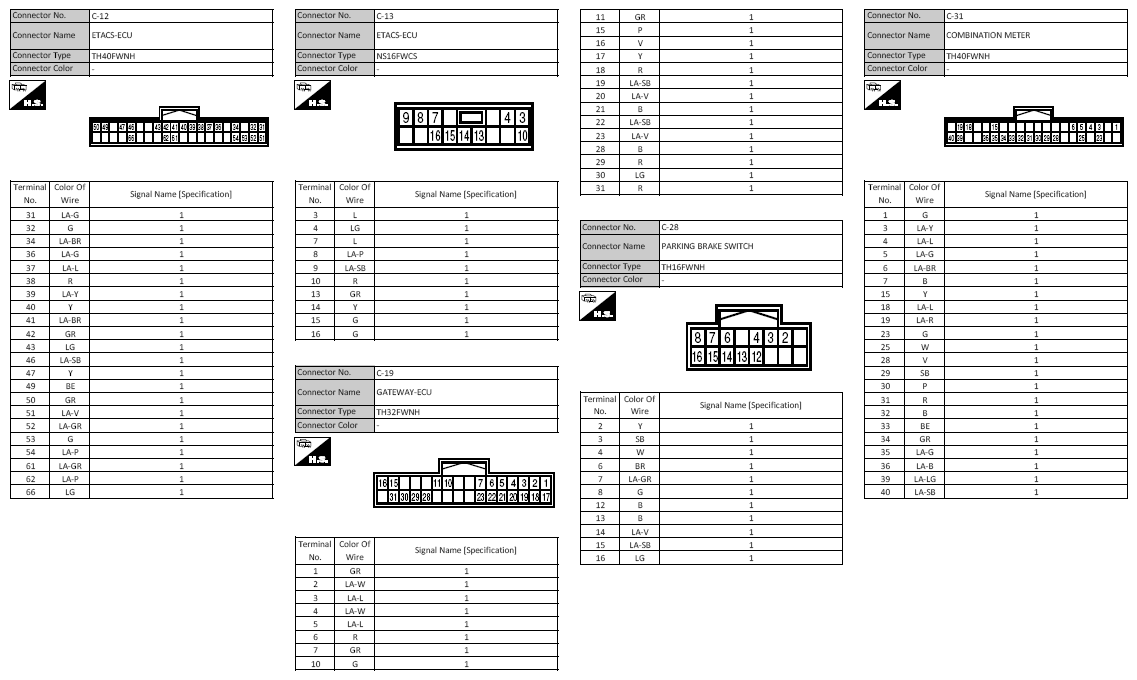

G16052967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

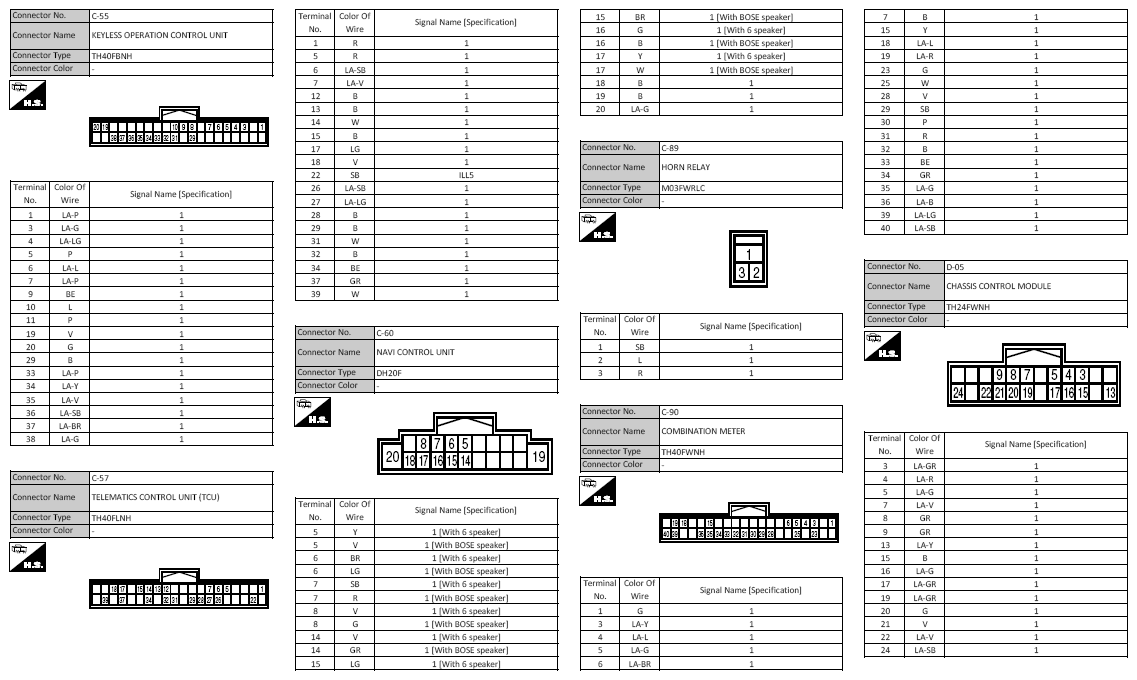

G16052968Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

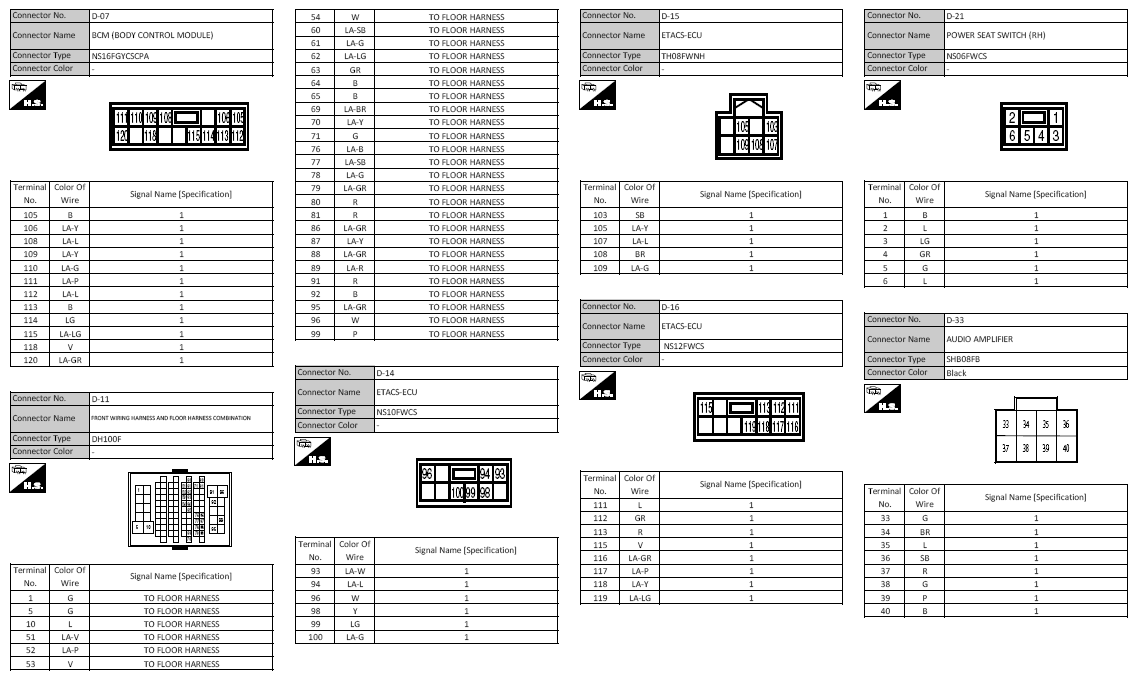

G16052969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

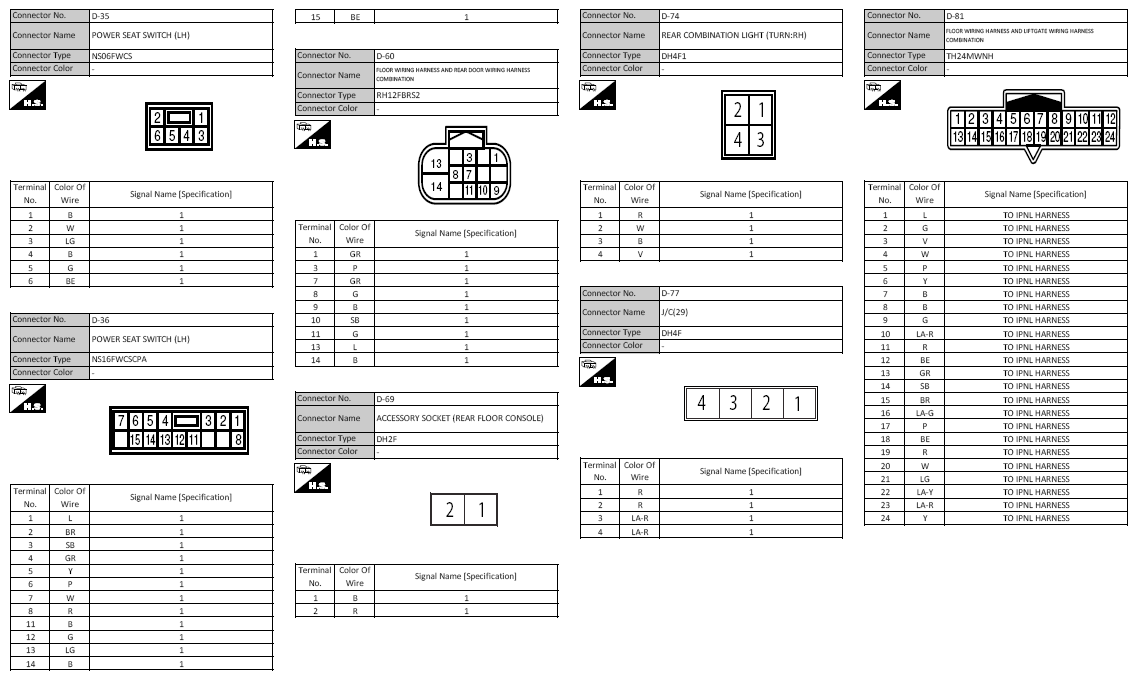

G16052970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)

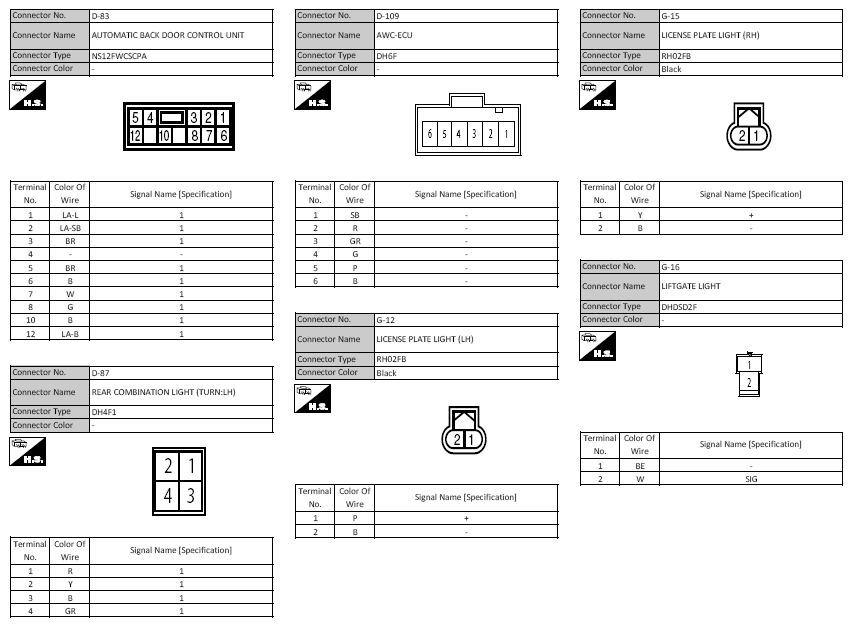

G16052971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)
