Removal And Installation: Notes

CAUTION:

When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
Do not reuse the manifold absolute pressure sensor that has been dropped.

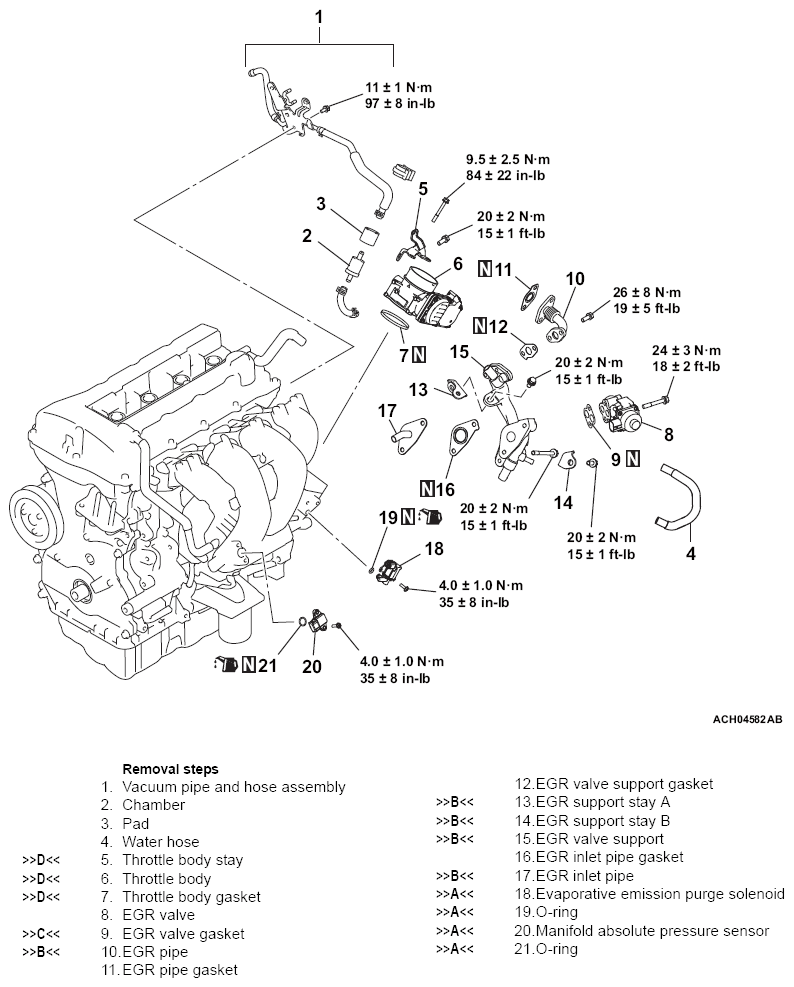

Fig 1: Removing/Installing Throttle Body And EGR System Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
