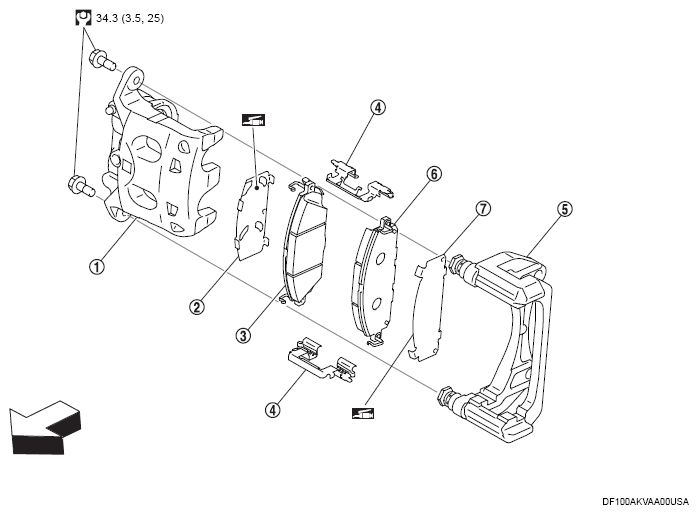

Exploded View
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| (1) | Cylinder body |
| (2) | Inner shim cover |
| (3) | Inner pad (with pad wear sensor) |
| (4) | Pad retainer |
| (5) | Torque member |
| (6) | Outer pad |
| (7) | Outer shim cover |
| : Vehicle front | |
| : N.m (kg-m, ft-lb) | |
| : Apply MOLYKOTE® AS-880N or silicone-based grease. |
Molykote is a registered trademark of Dow Corning Corporation.
