Engine Cooling System
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

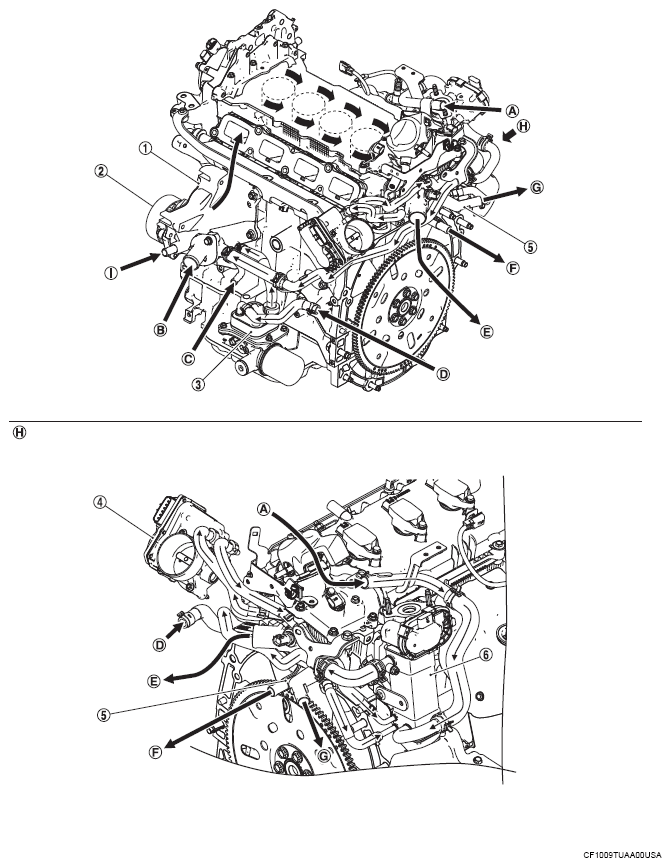

| (1) | Water pump housing |
| (2) | Water pump |
| (3) | Oil cooler |
| (4) | Electric throttle control actuator |
| (5) | Water outlet |
| (6) | EGR cooler |
| (A) | From heater |
| (B) | From radiator |
| (C) | From CVT oil warmer |
| (D) | From water outlet |
| (E) | To radiator |
| (F) | To CVT oil warmer and oil cooler |
| (G) | To heater |
| (H) | View H |
| (I) | From reservoir tank |
