Exploded View

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

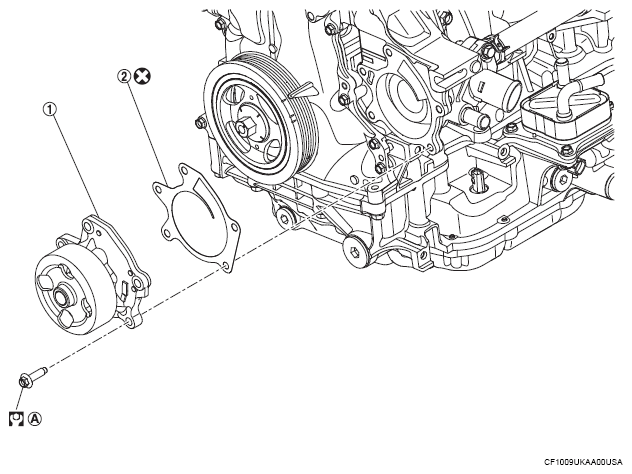

Fig 1: Removing/Installing Water Pump Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Water pump assembly
(2)	Gasket
(A)	Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION .
	: Always replace after every disassembly .
	:N.m (kg-m, ft-lb)
