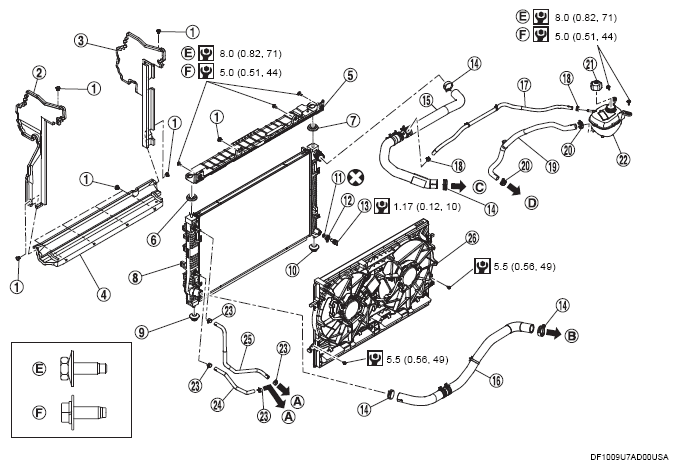

Exploded View: Removal
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| (1) | Clip |
| (2) | Air guide LH |
| (3) | Air guide RH |
| (4) | Air guide lower |
| (5) | Mounting bracket |
| (6) | Mounting rubber (upper) |
| (7) | Mounting rubber (upper) |
| (8) | Radiator |
| (9) | Mounting rubber (lower) |
| (10) | Mounting rubber (lower) |
| (11) | O-ring |
| (12) | Drain guide |
| (13) | Radiator drain cock |
| (14) | Clamp |
| (15) | Radiator hose (upper) |
| (16) | Radiator hose (lower) |
| (17) | Reservoir tank hose [reservoir tank - radiator hose (upper)] |
| (18) | Clamp |
| (19) | Reservoir tank hose |
| (20) | Clamp |
| (21) | Reservoir tank cap |
| (22) | Reservoir tank |
| (23) | Clamp |
| (24) | CVT fluid cooler hose |
| (25) | CVT fluid cooler hose |
| (26) | Cooling fan assembly |
| (A) | To CVT fluid warmer EXPLODED VIEW |
| (B) | To water outlet Exploded view EXPLODED VIEW |
| (C) | To water inlet Exploded view EXPLODED VIEW |
| (D) | To water pump housing Exploded view EXPLODED VIEW |
| (E) | Washer bolt |
| (F) | Washer bolt |
| : Always replace after every disassembly . | |
| : N.m (kg-m, in-lb) |
