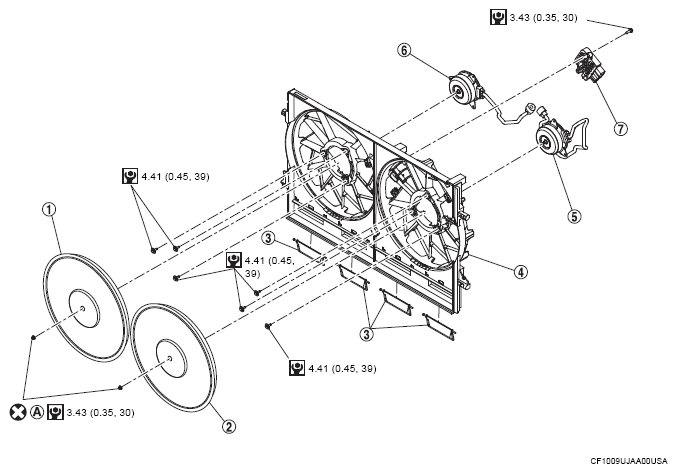

Exploded View
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| (1) | Cooling fan (RH) |
| (2) | Cooling fan (LH) |
| (3) | Cooling fan shroud flap |
| (4) | Cooling fan shroud |
| (5) | Cooling fan motor (LH) |
| (6) | Cooling fan motor (RH) |
| (7) | Cooling fan control module |
| (A) | Apply on fan motor shaft |
| :N.m (kg-m, in-lb) | |
| :Always replace after every disassembly . |
