Exploded View

SEC. 211.213

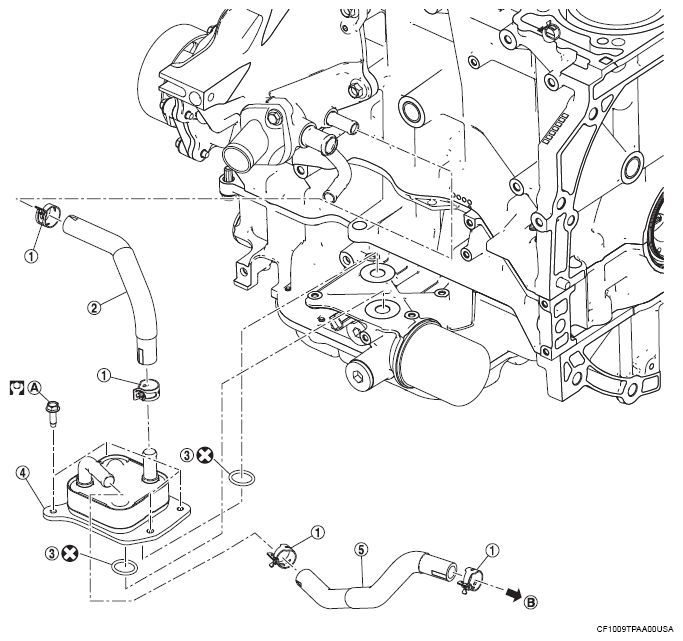

Fig 1: Exploded View Of Oil Cooler With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Clamp
(2)	Water hose
(3)	O-ring
(4)	Oil cooler
(5)	Water hose

A	Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION
B	To water outlet and CVT oil warmer. Refer to Exploded View EXPLODED VIEW (water outlet) and Exploded View. EXPLODED VIEW (CVT oil warmer)

:	Always replace after every disassembly.
:	N.m (kg-m, ft-lb)
