Case 1

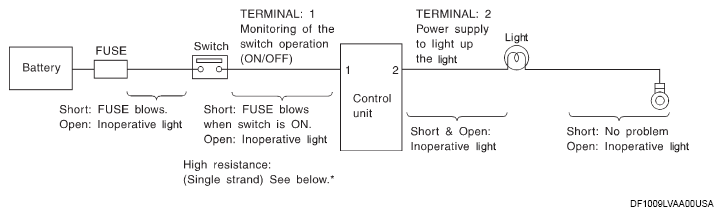

G16052556Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INPUT-OUTPUT VOLTAGE SPECIFICATION

Terminal No. Description Condition Value (Approx.) In case of high resistance such as single strand (V) (2)
+ - Signal name Input/Output
1 Body ground Switch Input Switch ON Battery voltage Lower than battery voltage Approx. 8 (Example)
Switch OFF 0 V Approx. 0
2 Body ground Light Output Switch ON Battery voltage Approx. 0 (Inoperative light)
Switch OFF 0 V Approx. 0
(1) 1. The voltage value is based on the body ground.

(2) 2. *: If high resistance exists in the switch side circuit (caused by a single strand), terminal 1 does not detect battery voltage. Control unit does not detect the switch is ON even if the switch does not turn ON. Therefore, the control unit does not supply power to light up the light.
