Removal And Installation: Notes

WARNING: This page is about a different car, the 2022 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing and installing the driveshaft assembly, make sure that the magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the front wheel speed sensor, make sure that the pole piece at the end does not contact with surrounding parts to avoid damage.

Pre-removal operation

Engine room under cover front removal (Refer to UNDER COVER ).
Transmission fluid draining (Refer to TRANSMISSION OIL CHANGE ). <M/T>
CVT fluid draining (Refer to CVT FLUID CHANGE ). <CVT>
Lower arm assembly and stabilizer bar connection removal (Refer to STABILIZER BAR ).

Post-installation operation

Using your fingers, press the ball joint dust cover to check for a crack or damage.
Lower arm assembly and stabilizer bar connection installation (Refer to STABILIZER BAR ).
CVT fluid refilling (Refer to CVT FLUID CHANGE ). <CVT>
Transmission fluid refilling (Refer to TRANSMISSION OIL CHANGE ). <M/T>
Engine room under cover front installation (Refer to UNDER COVER ).
Check the beam direction of the headlight (Low beam) (Refer to HEADLIGHT AIMING ).

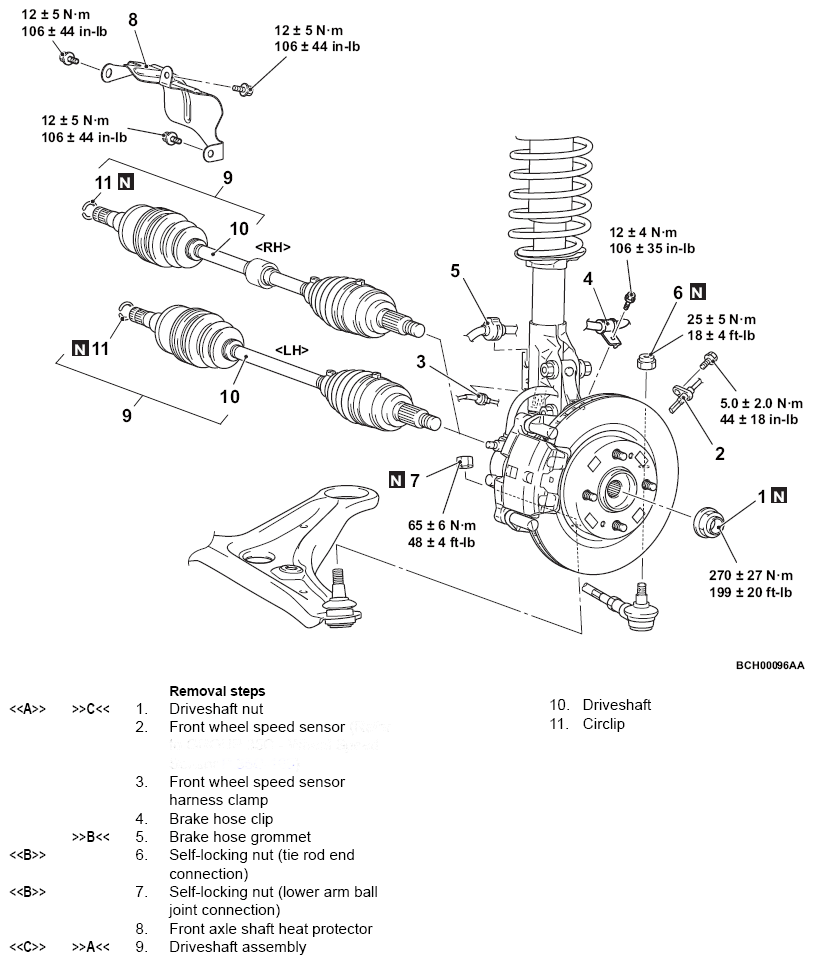

Fig 1: Removing/Installing Driveshaft Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB992700: Lock Nut Chisel
MB990767: Front Hub and Flange Yoke Holder
MB991897 or MB992011: Ball Joint Remover
MB990241: Axle Shaft Puller
MB991000: Spacer
MB991017: Front Hub Removal and Installer
MB992867: Front Hub Remover and Installer Spacer
