Removal And Installation: Notes

WARNING: This page is about a different car, the 2022 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to Service Precautions and Driver's Air Bag Module and Clock Spring .
After the column switch assembly (integrated with steering wheel sensor) is installed, always calibrate the steering wheel sensor (Refer to On-vehicle Service, Sensor Calibration ).

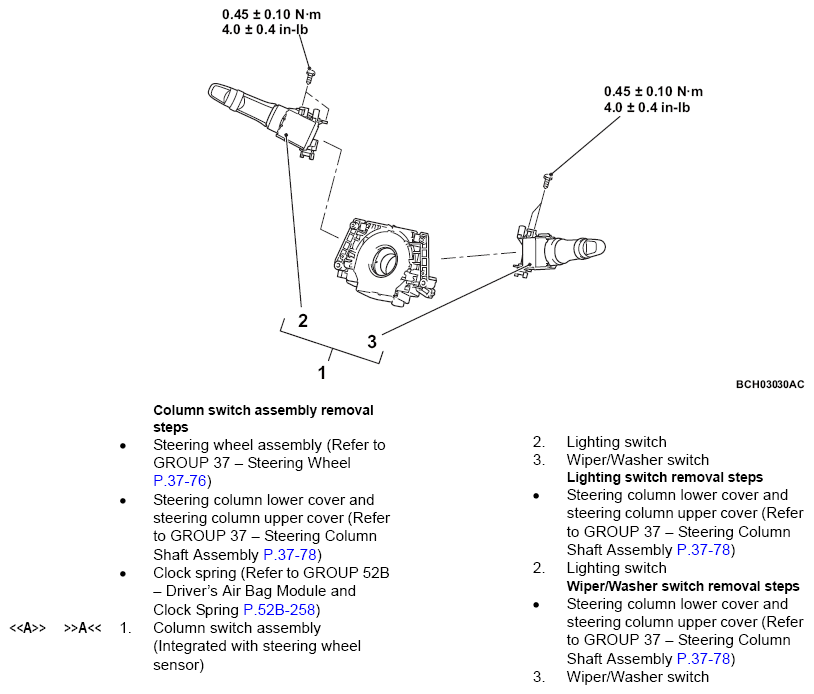

Fig 1: Removing/Installing Column Switch Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
