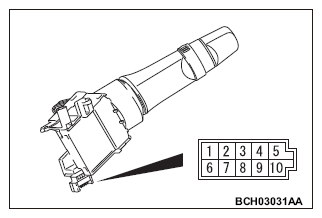

Wiper/Washer Switch Continuity Check
WARNING: This page is about a different car, the 2022 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
| Switch position |
Terminal number |
Normal condition |
| OFF |
1 - 5 |
No continuity |
| 2 - 5 |
| 3 - 5 |
| 4 - 5 |
| 5 - 7 |
| 5 - 8 |
| 5 - 9 |
| 5 - 10 |
| Windshield wiper switch |
INT |
2 - 5 |
Continuity exists (2 Ω or less) |
| AUTO |
| LO |
4 - 5 |
| HI |
1 - 5 |
| MIST |
5 - 10 |
| Windshield washer switch |
3 - 5 |
Continuity exists (2 Ω or less) |
| Rear washer switch |
5 - 8 |
| Rear wiper switch |
5 - 9 |
| Windshield intermittent wiper interval adjusting knob/Windshield rain sensitive wiper function adjusting knob |
5 - 6 |
Operating the adjusting knob changes the resistance. |
| Headlight washer switch |
5 - 7 |
Continuity exists (2 Ω or less) |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
