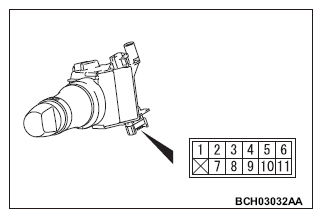

Lighting Switch Continuity Check
WARNING: This page is about a different car, the 2022 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
| Switch position |
Terminal number |
Normal condition |
| OFF/AUTO |
1 - 5 |
No continuity |
| 2 - 5 |
| 3 - 5 |
| 4 - 5 |
| 5 - 6 |
| 5 - 7 |
| 5 - 8 |
| 5 - 10 |
Continuity exists (2 Ω or less) |
| Turn-signal light RH switch |
3 - 5 |
Continuity exists (2 Ω or less) |
| Turn-signal light LH switch |
4 - 5 |
| Dimmer switch |
1 - 5 |
| 2 - 5 |
| Passing switch |
1 - 5 |
| Fog light switch |
ON |
5 - 11 |
Decreases by 224 Ω or more from the value measured at the neutral position |
| NEUTRAL |
303 - 736 Ω |
| OFF |
Increases by 223 Ω or more from the value measured at the neutral position |
| Taillight switch |
5 - 8 |
Continuity exists (2 Ω or less) |
| Headlight switch |
5 - 7 |
| Automatic high beam switch <Vehicles with Automatic High Beam system (AHB)> |
5 - 6 |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
