Inspection Terminal

Name Symbol
Data link connector E
Spare connector B
Spare connector (for navigation system) D
Spare connector <CVT> A
Spare connector C

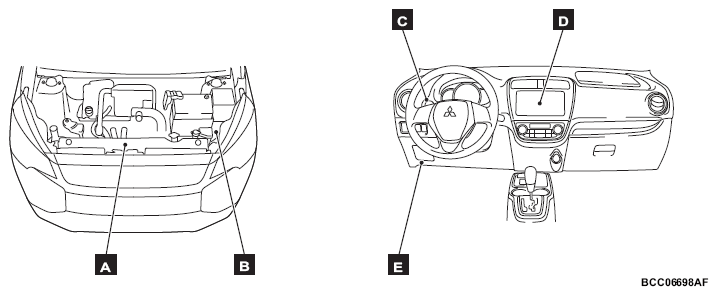

G14354157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

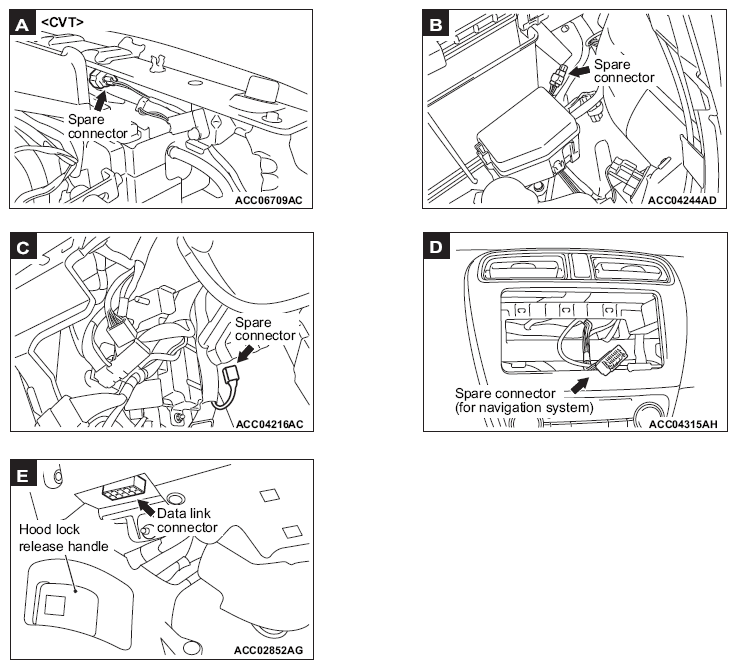

G14354158Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
