Component Locations: Grounding

G14354160Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

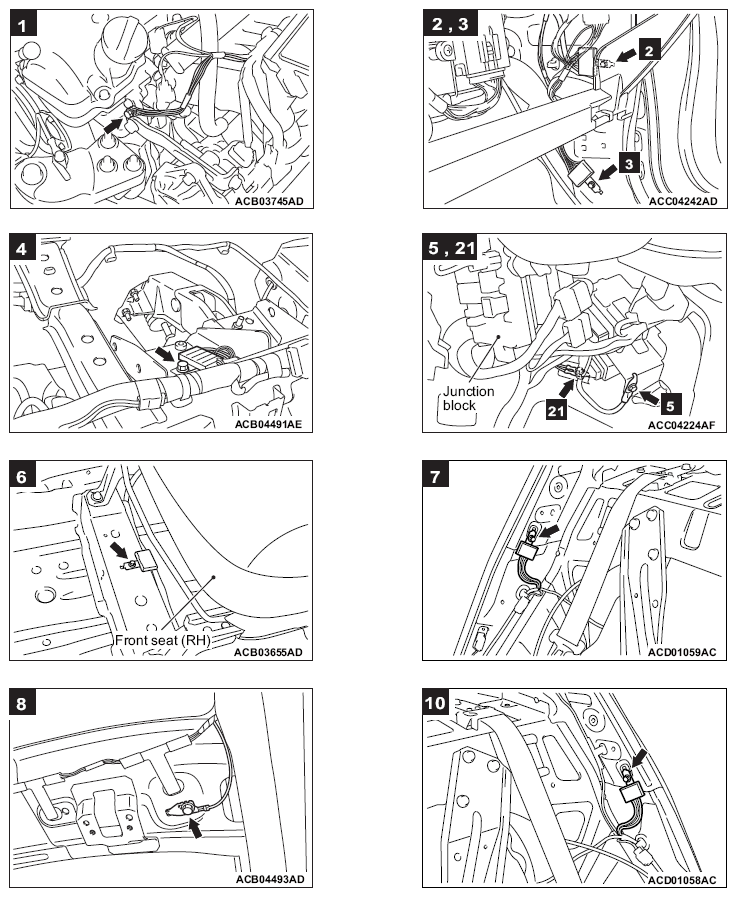

G14354161Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

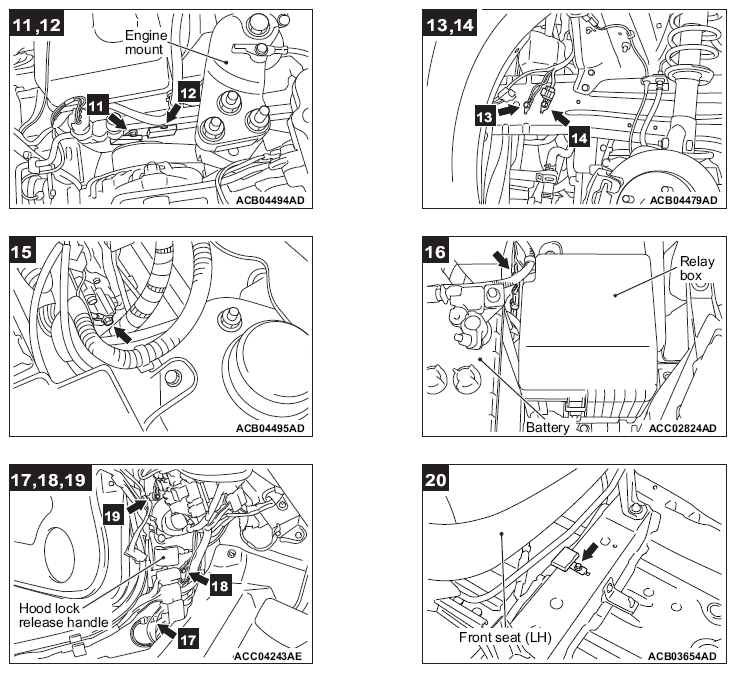

G14354162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
