Removal And Installation: Notes

Pre-removal and post-installation Operation

  • Front Deck Garnish Removal and Installation (Refer to - WINDSHIELD WIPER )
  • Front Pillar Trim Removal and Installation (Refer to INTERIOR TRIM )
  • Inside Rear View Mirror Removal and Installation
  • FCM/LDW/AHB-ECU Removal and Installation (Refer to FCM/LDW/AHB-ECU )
  • Lighting Control Sensor Removal and Installation <Vehicles with Lighting Control Sensor> (Refer to HEADLIGHT )

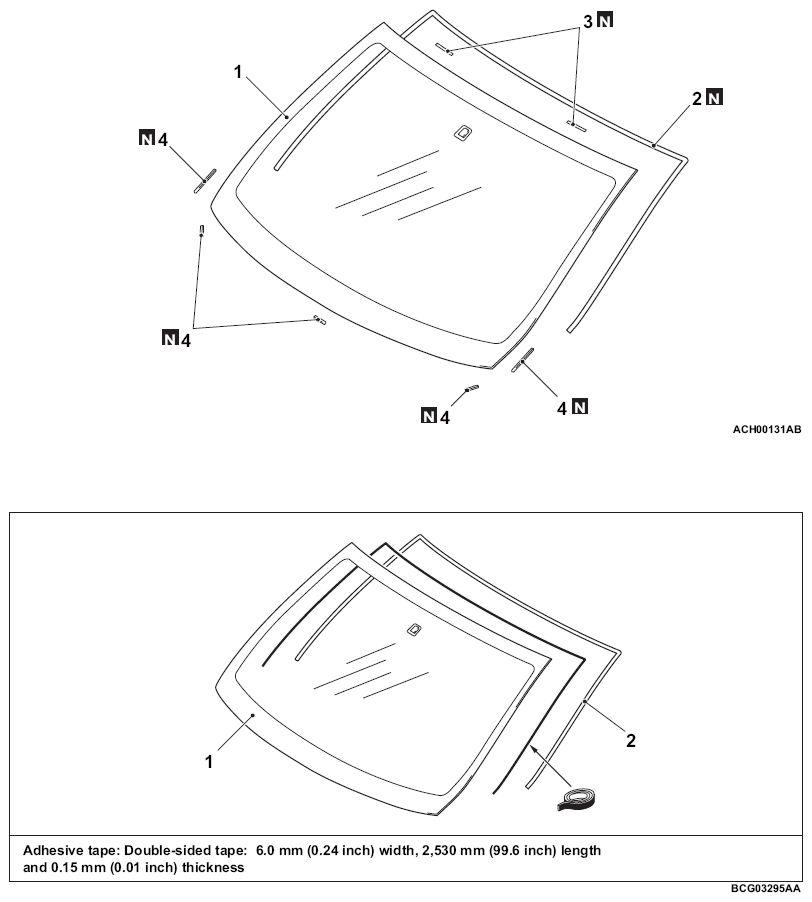

G14343433Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

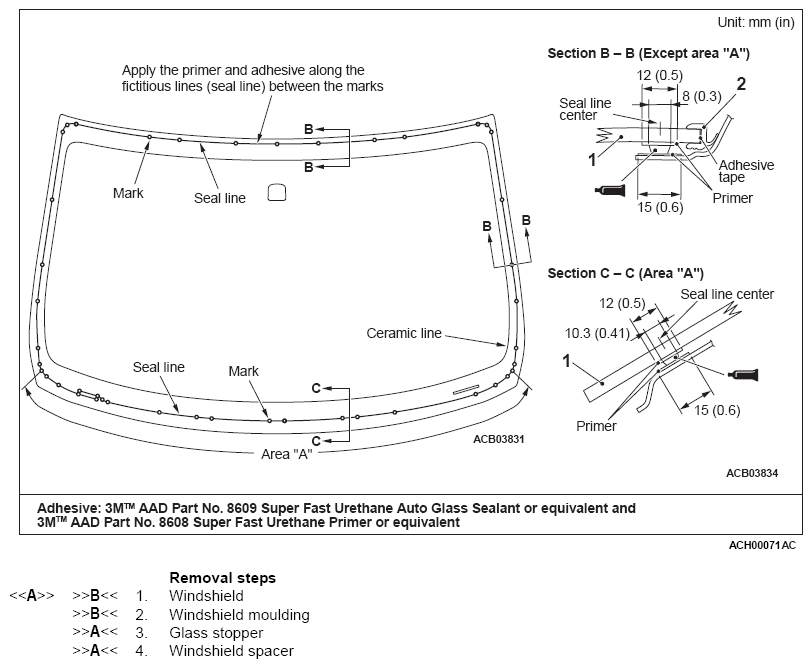

G12681468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
