Removal And Installation: Notes
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in
DRIVER'S AIR BAG MODULE
to PASSENGER'S (FRONT) AIR BAG MODULE
.

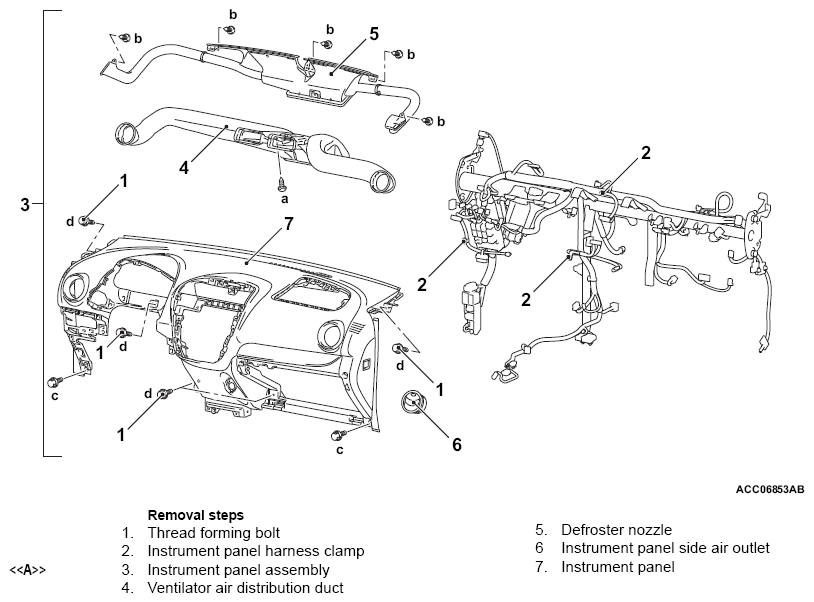

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown below
| Name | Symbol | Dimensions mm (screw diameter x screw length) | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 X 12 | - | |
| b | 5 X 12 | - | ||
| Bolt with washer | c | 6 X 12 | - | |
| d | 6 X 12 | - |
CAUTION:
- Refer to SRS SERVICE PRECAUTIONS and PASSENGER'S (FRONT) AIR BAG MODULE before removing the passenger's (front) air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
Pre-removal and Post-installation Operation
- Front Pillar Trim Removal and Installation (Refer to TRIMS )
- Glove Box Removal and Installation (Refer to REMOVAL SERVICE POINT <<A>> INSTRUMENT PANEL ASSEMBLY REMOVAL )
- Instrument Panel Driver Side Under Cover, Instrument Panel Cover Lower Removal and Installation (Refer to INSTRUMENT LOWER PANEL )
- Automatic A/C Controller Assembly Removal and Installation (Refer to HEATER CONTROL UNIT )
- Floor Console Assembly Removal and Installation (Refer to FLOOR CONSOLE ASSEMBLY )
- Radio and CD Player Assembly Removal and Installation (Refer to RADIO AND CD PLAYER ) <Vehicles with radio and CD player>
- Smartphone Link Display Audio Removal and Installation (Refer to SMARTPHONE LINK DISPLAY AUDIO ) <Vehicles with smartphone link display audio>
- Combination Meter Removal and Installation (Refer to COMBINATION METER )
