Removal And Installation: Notes

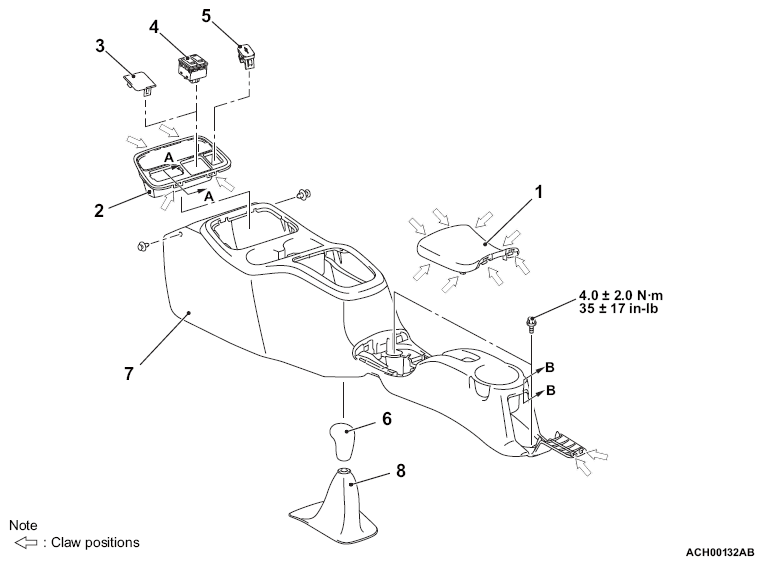

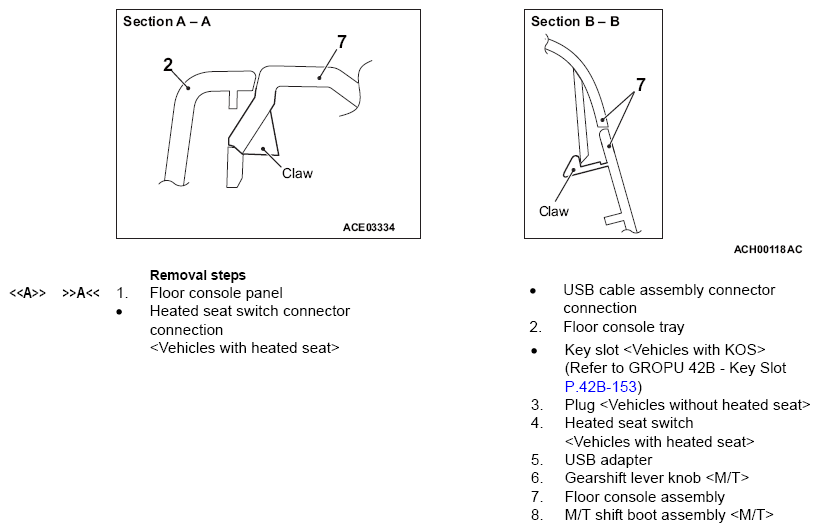

Fig 1: Removing/Installing Floor Console Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
