Removal And Installation: Notes

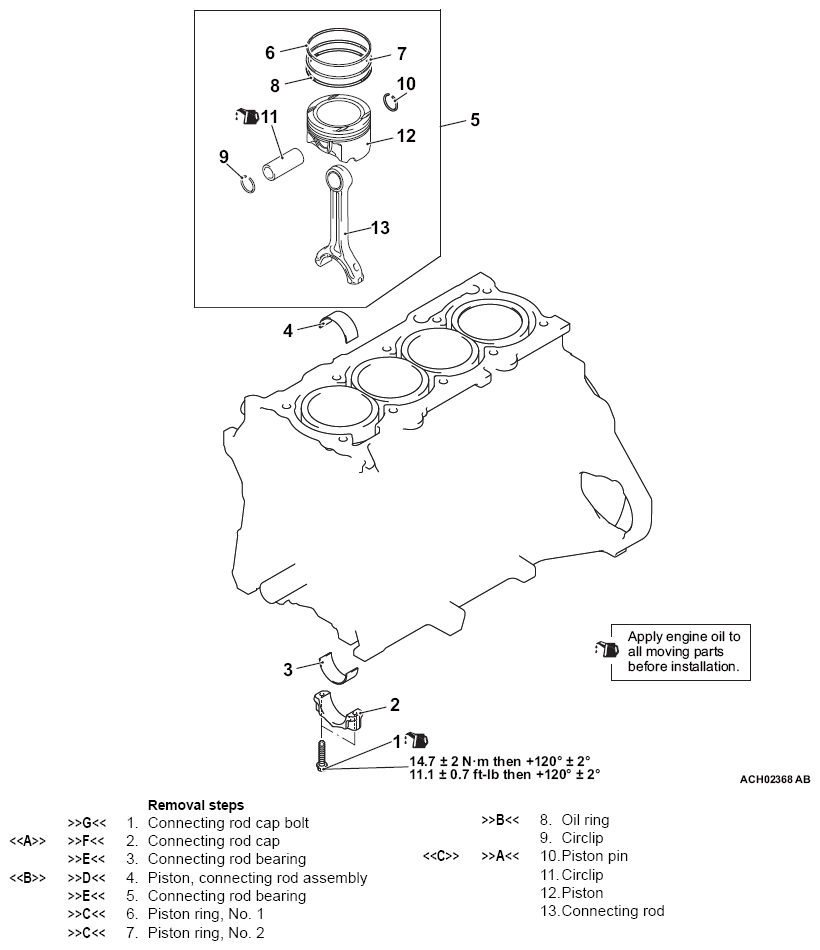

Fig 1: Removing/Installing Piston And Connecting Rod Components Location With Torque Specification
G14342264Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
