Removal And Installation: Notes

Pre-removal operation	Post-installation operation
Engine Cover Removal (Refer to ENGINE COVER . Charge air cooler Intake Air Hose A Removal (Refer to CHARGE AIR COOLER ). Air Cleaner Assembly Removal (Refer to AIR CLEANER ). Throttle Body Removal (Refer to THROTTLE BODY . Fuel Rail and Fuel Injector Assembly Removal (Refer to INJECTOR .	Fuel Rail and Fuel Injector Assembly Installation (Refer to INJECTOR . Throttle Body Installation (Refer to THROTTLE BODY . Air Cleaner Assembly Installation (Refer to AIR CLEANER ). Charge air cooler Intake Air Hose A Installation (Refer to CHARGE AIR COOLER ) Engine Cover Installation (Refer to ENGINE COVER .

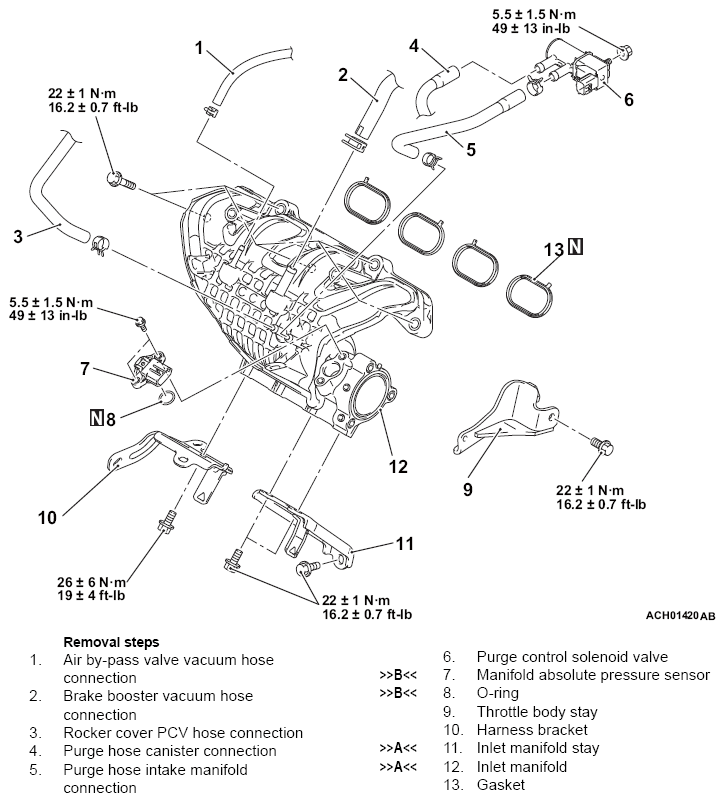

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
