Home >> Mitsubishi >> 2021 >> RVR SE, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Rear Seat Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

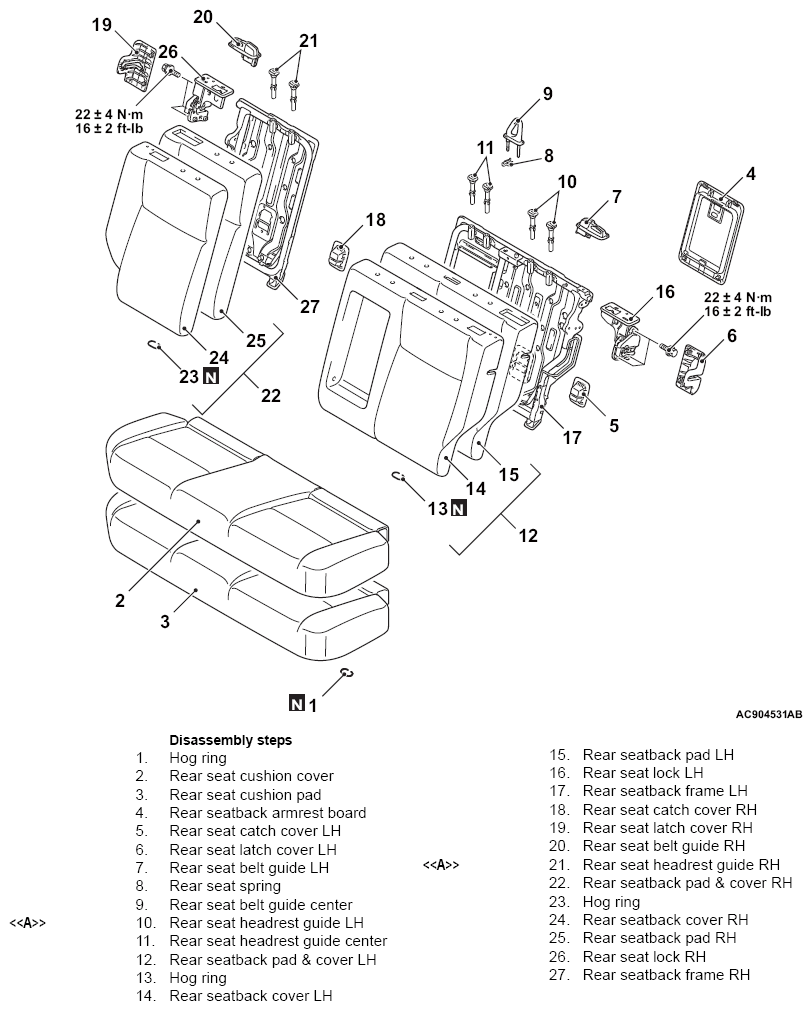

Fig 1: Disassembling/Assembling Seat Assembly Components With Torque Specification

G14214333

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
