Home >> Mitsubishi >> 2021 >> RVR SE, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Front Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and Side Airbag Module (s) SIDE-AIRBAG MODULE(S) .

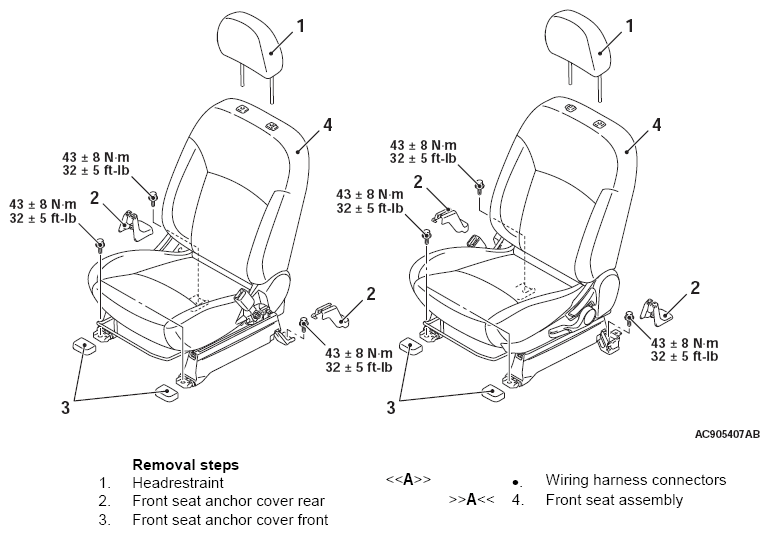

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specification
G13346934Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
