How To Read Splice Locations

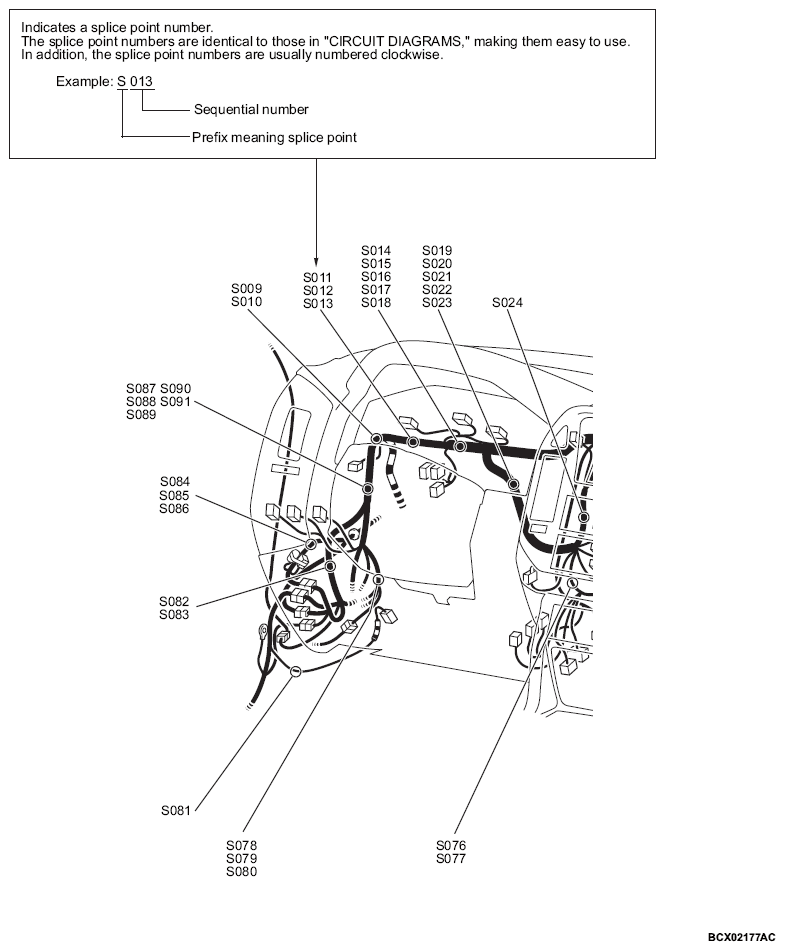

"Splice locations" describes splice points of each wiring harness on an actual vehicle. Some variations are included in one splice location. Accordingly, some locations may not be applicable for individual vehicles.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
