»A« Stabilizer Link And Strut Connection Nut Installation

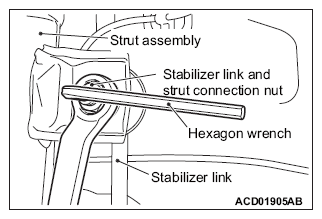

Use a hexagon wrench to counterhold the stabilizer link as shown. Then use a wrench to install the nut securing the stabilizer link to the strut.

G14213439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
